The following directions are complete instructions on interconnecting display cards and
connecting the controller card to a power source:
1. Use Harness 734-008 to connect P2 on the controller card to one of the 4-pin
connectors on the PDI.
2. If there are multiple controller cards, use Harness 734-036 to connect P3 on the
controller card to P2 on another controller card.
3. Interconnect all LED/switch display cards with the ribbon cables (provided).
Connector P1 is the input; connector P2 is the output.
TO PDI CONNECTOR OR ANOTHER
CONTROLLER CARD
P4
(reverse side)
HARNESS 734- 036
LED/ SWITCH
CONTROLLER
26 - CONDUCTOR
RIBBON CABLE
LED/ SWITCH
MODULE 3
LED/ SWITCH
MODULE 2
LED/ SWITCH
MODULE 1
TO ANOTHER
CONTROLLER CARD
HARNESS 734 008
IN
OUT IN
OUT IN

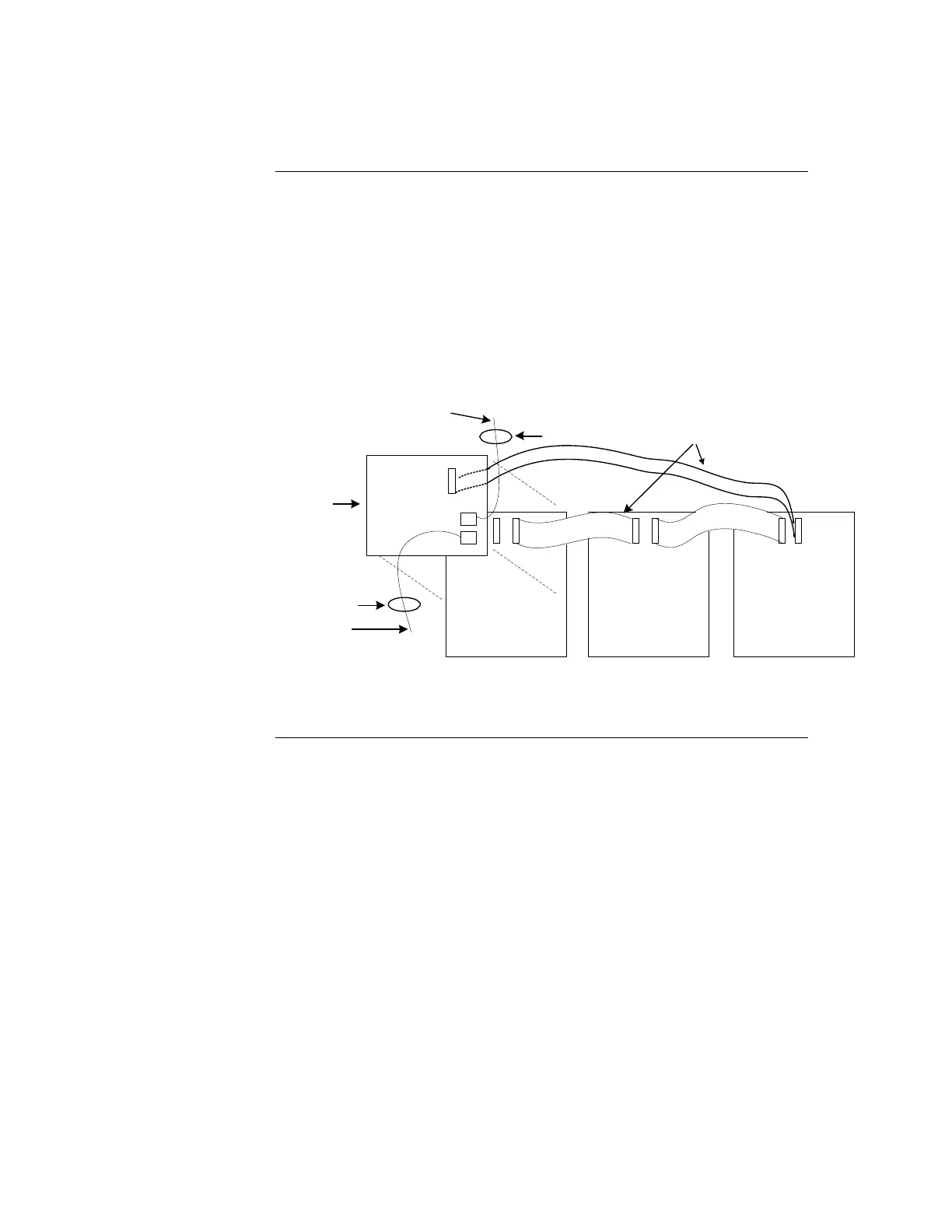

Figure 2-20. LED/Switch Controller Wiring
Step 6. Installing LED/Switch Modules into Expansion Bays (4100ES),
Continued
Wiring Instructions

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
