Simplex 4100ES Installation & Maintenance

4-4
There are two approved media cards that can be plugged onto the 4100-6014 NIC:
 4100-6057 Fiber-Optic Media Card (565-261).
 4100-6056 Wired Media Card (565-413).
{xe "media cards"}{xe "fiber-optic media card"}{xe "wired media card"}
Each module is shown below.

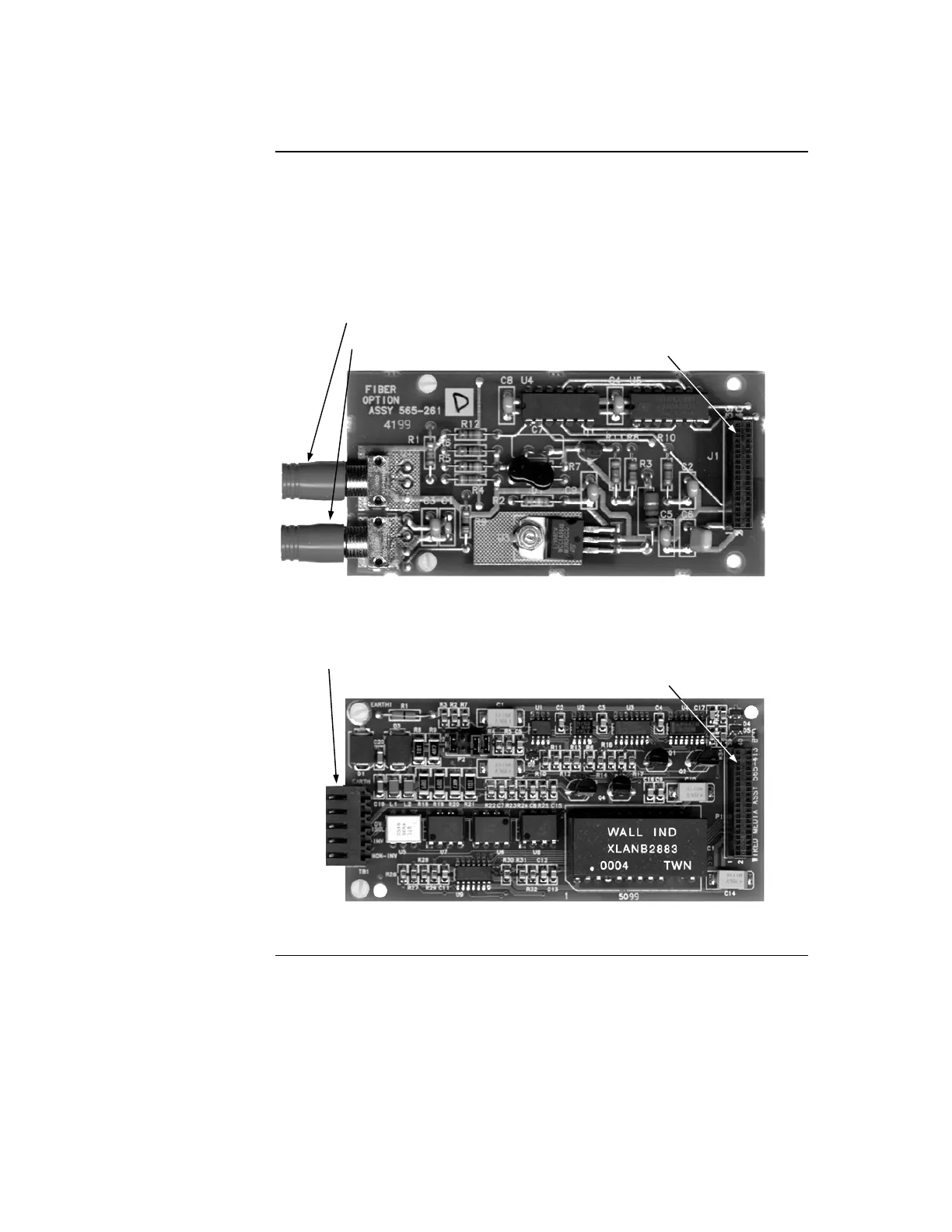

Figure 4-2. The 4100-6057 Fiber-Optic Media Card
RESERVED (TB1)
Figure 4-3. The 4100-6056 Wired Media Card
{xe "wired media card: about"}
Continued on next page
Introduction to the 4100 Network Interface Card (NIC), Continued
NIC Media Cards
40-PIN NETWORK
INTERFACE CARD
CONNECTOR (J1)
FIBER-OPTIC DATA:
TRANSMIT (U1),
RECEIVE (U2)
40-PIN NETWORK
INTERFACE CARD
CONNECTOR (P1)

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
