Simplex 4100ES Installation & Maintenance

4-14
The Table below lists the 4100ES master motherboard connections for the wired media
card.
Table 4-5. 566-227 CPU Motherboard Wired Media Connections
Motherboard Port for Media
Card Connected to P5
Wired Media Card Connection
(Left Port)
TB1-4 0 V
TB1-5 Earth ground
TB1-6 INV (-)
TB1-7 None
TB1-8 NONINV (+)
Motherboard Port for Media
Card Connected to P6
Wired Media Card Connection
(Right Port)
TB3-1 NONINV (+)
TB3-2 Reserved
TB3-3 INV (-)
TB3-4 Earth ground
TB3-5 0 V

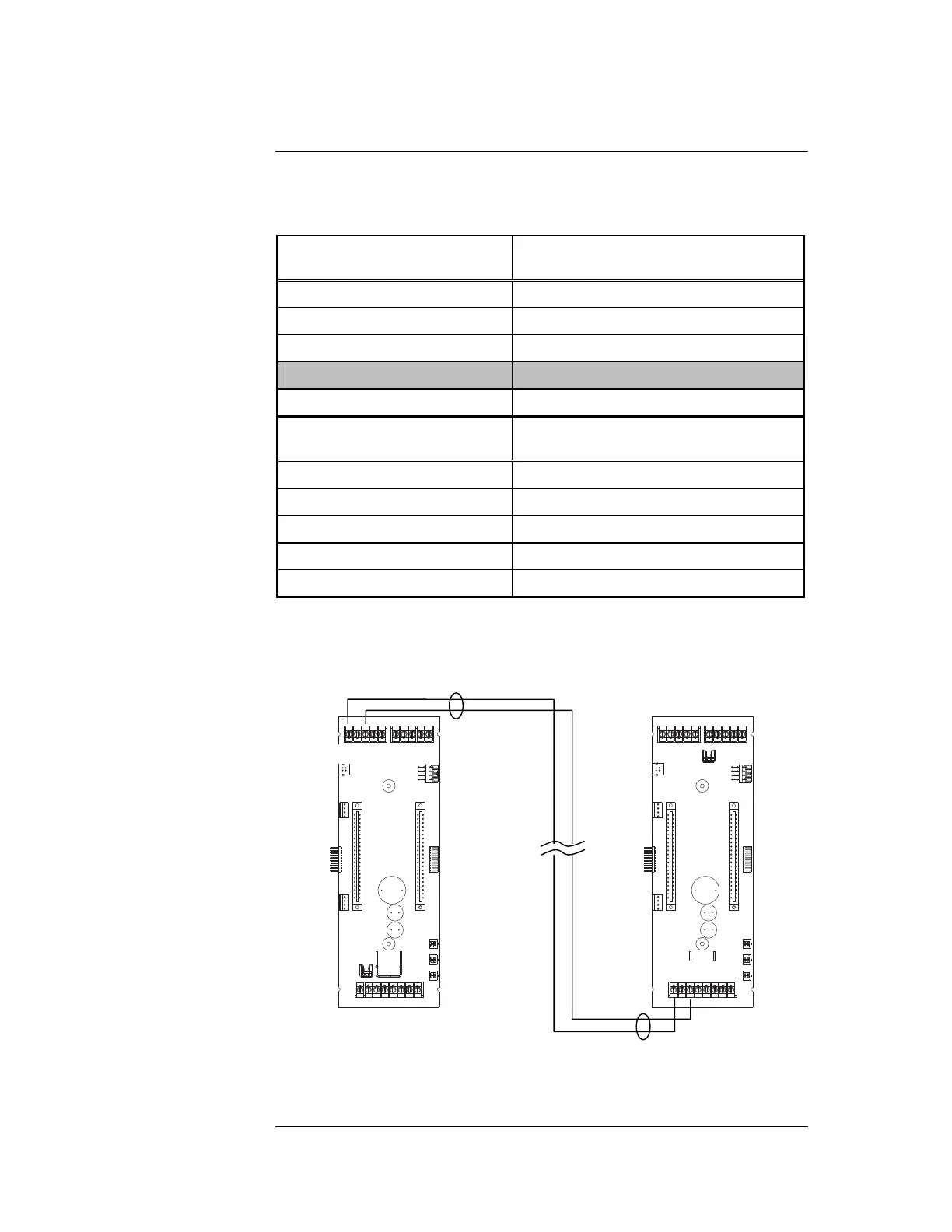

Figure 4-8, below, shows how two CPU motherboards with wired media network cards
connect to each other in the 4100ES.
Figure 4-8. Wired Media Interconnections between 4100ES Master
Motherboards
Continued on next page
Step 4. Wiring Network Cards, Continued
Wiring with the
Wired Media Card
(continued)
18 AWG
1 TB3 10
Right Port
R+ R-
Left Port
8
TB1 1
L+ L-

Simplex 4100ES Specifications

General

Type	Fire Alarm Control Panel
Display	LCD
Battery Backup	Yes
Model	4100ES
Manufacturer	Simplex
Communication Protocol	Optional Ethernet
Signaling Line Circuits (SLCs)	Up to 10
Notification Appliance Circuits (NACs)	Up to 10
Agency Listings	UL, FM, CSFM, MEA
Max Relay Circuits	20
Communication Ports	Ethernet
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
