11 Transaxle Removal & Installation
Transaxle Installation – All Models
11 - 6
8. Replace the drawbar (A, Figure 10) , securing with
the original hardware to the bottom of each axle
housing (B).
9. Using an overhead hoist or floor jack placed under
the drawbar, raise the tractor high enough to allow
removal of the jackstands from under the left and
right frame member.
10. Install the two speed control rod (A, Figure 11) and
lower rod (B) to the right side of the transaxle, and
secure with the original hardware.
11. Position the brake caliper assembly (C, Figure 12)
with mounting bracket as an assembly on the brake
disc (D), and secure the bracket (B) to the left frame
member.
12. Install the brake rod assembly (A) to the caliper
assembly (C) on the left side of the transaxle, and
secure with the original hardware.

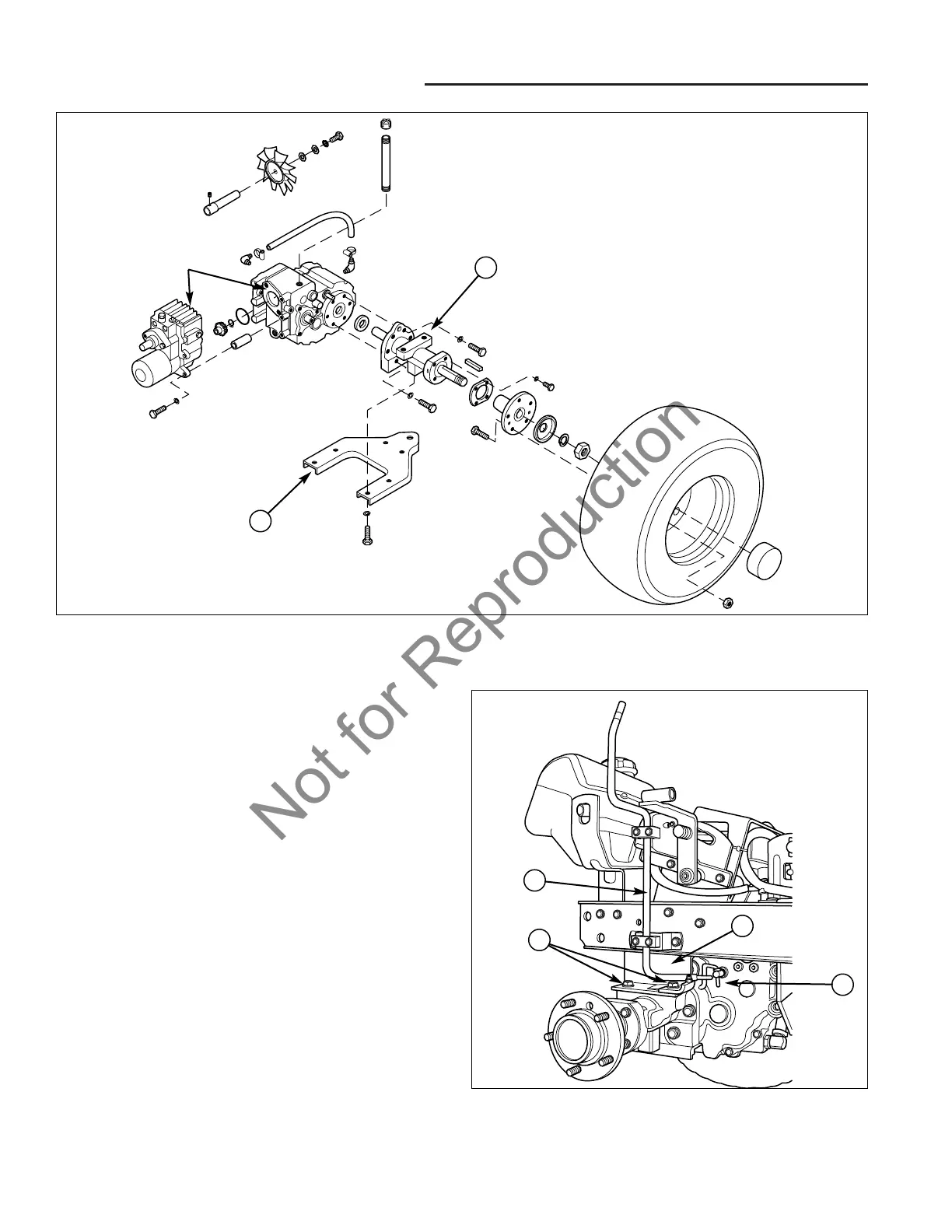

Figure 10.
A. Drawbar B. Axle Housing
A
B
Figure 11. Two-Speed Control Installation
A. Two-Speed Control Rod C. Capscrews
B. Two-Speed Lower Rod D. Frame Brackets
A
D
B
C
Transaxle
mounting
surfaces
To Next Page
