Simplicity LEGACY Series User Manual

16 PTO Clutch Service
Clutch Installation
16 - 8
PTO Clutch Installation
GAS ENGINE MODELS
1. Replace the anti-rotation rod (K, Figure 9 and 10)
using the original capscrew (J) and lockwasher (B).
2. Replace the spacer (I) onto the crankshaft.
3. Replace the key (F) on the crankshaft.
4. Carefully slide the PTO clutch (D) back onto the
crankshaft, paying close attention to aligning the key
(F) with the keyway on the inside of the PTO clutch (D).
NOTE: Direction of fan fins can be installed either way –
orient correctly.
5. Replace the fan (G) and spacer (H).
DIESEL ENGINE MODELS
6. Replace the clutch stop bracket (H, Figure 11) to the
support bracket (L) using the original capscrews (J)
and nut (I).
7. Replace the stub shaft (K) using the original cap-
screws (J) and lockwashers (B).
8. Replace the key (F) on the stub shaft (K).
9. Carefully slide the PTO clutch (D) back onto the stub
shaft (K), paying close attention to aligning the key
(F) with the keyway on the inside of the PTO clutch (D).
The clutch stop bracket (H) must engage clutch slot.

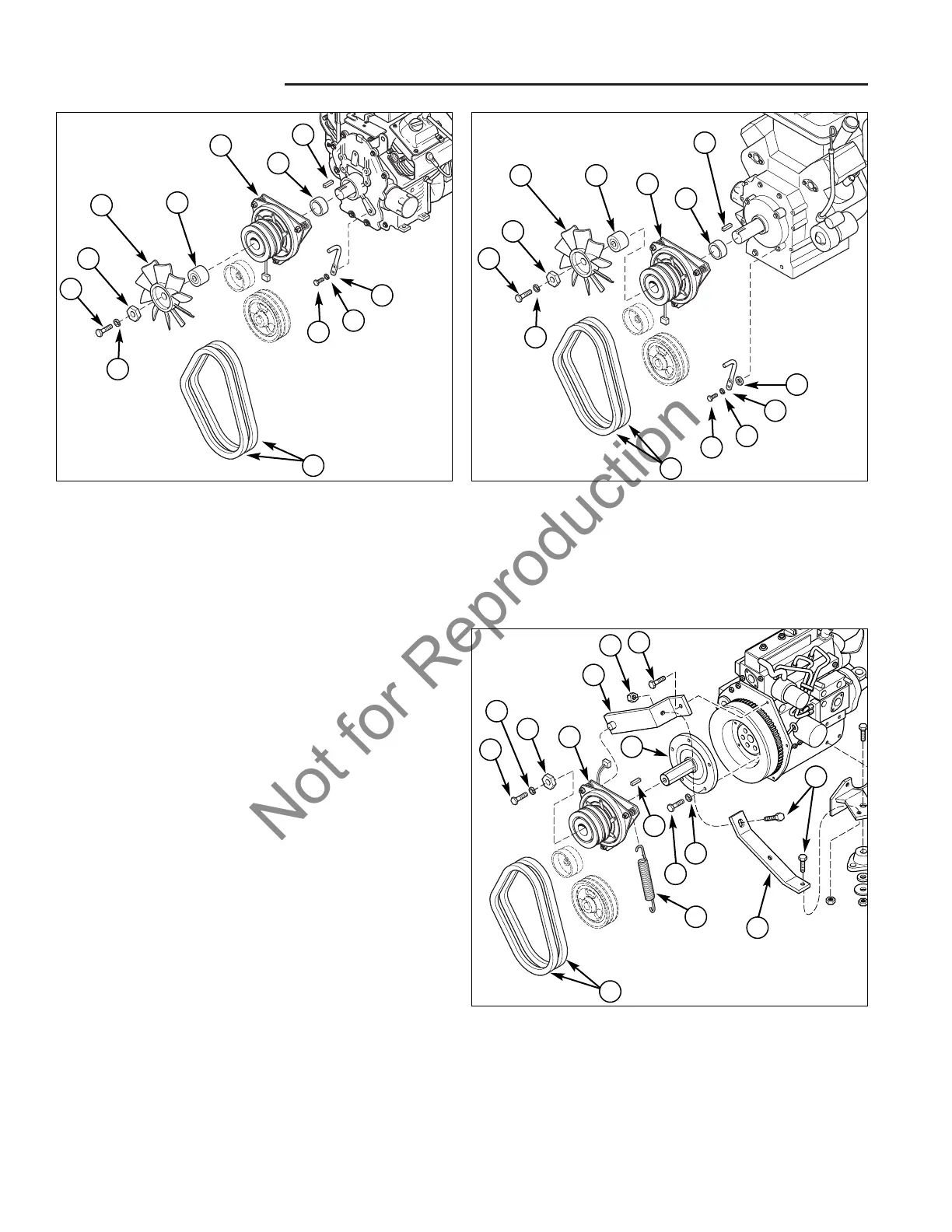

Figure 9. PTO Clutch (Kohler Models)
A. Crankshaft Bolt G. Fan
B. Lockwasher H. Fan Spacer
C. Hex Washer I. Clutch Spacer
D. PTO Clutch J. Capscrew
E. Belts K. Anti-Rotation Rod
F. Key
Figure 10. PTO Clutch (Kawasaki Models)
A. Crankshaft Bolt G. Fan
B. Lockwasher H. Fan Spacer
C. Hex Washer I. Clutch Spacer
D. PTO Clutch J. Capscrew
E. Belts K. Anti-Rotation Rod
F. Key L. Washer
Figure 11. PTO Clutch (B&S Diesel Models)
A. Crankshaft Bolt G. Clutch Spring
B. Lockwasher H. Clutch Stop Bracket
C. Hex Washer I. Nut
D. PTO Clutch J. Capscrew
E. Belts K. Stub Shaft
F. Key L. Support Bracket
L
K
B
J
E
B
A
C
G H
D
I
F
A
B
C
G
H
D
I
F
E
K
B
J
G
E
L
J
A
B
C
D
H
I
J
B
J
F
K
Not for Reproduction
