18 Mower Deck Service
60" Mower Baffles (Export Models)
18 - 40
1
2
33
4
5
5
4
Capscrew used to
mount Gauge Wheels
- see 60" Mower
Housing, Cover &
Gauge Wheel Group.
Hardware used to
mount Stone Guard -
see 60" Mower
Deflector & Stone
Guard Group.
Capscrew used to
mount Gauge Wheels
- see 60" Mower
Housing, Cover &
Gauge Wheel Group.

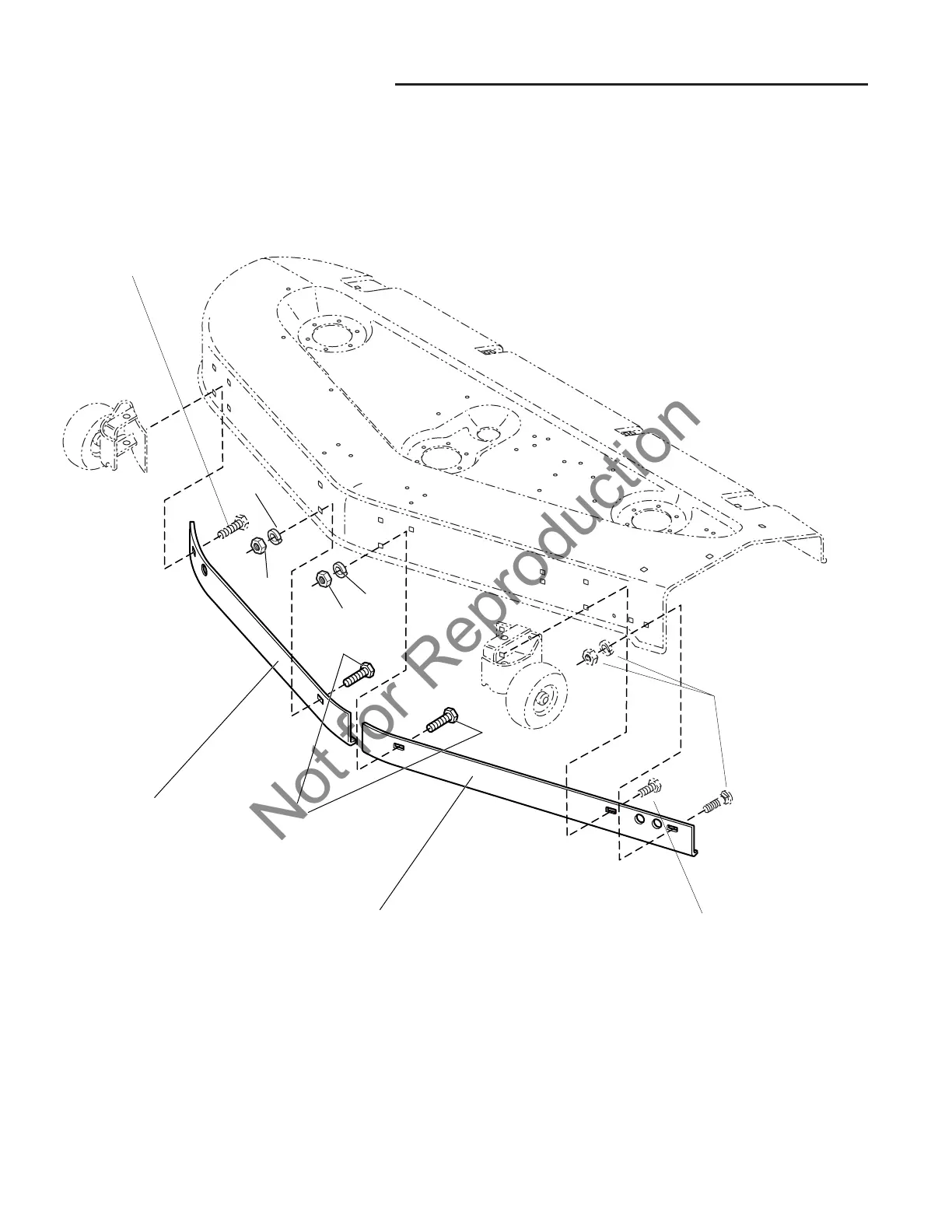

Figure 20. 60" Mower Baffles (Export Models)
