Simplicity LEGACY Series User Manual

20 - 3
20 Power Steering Unit Service
Description
COMPONENTS – DESCRIPTION
TL R P

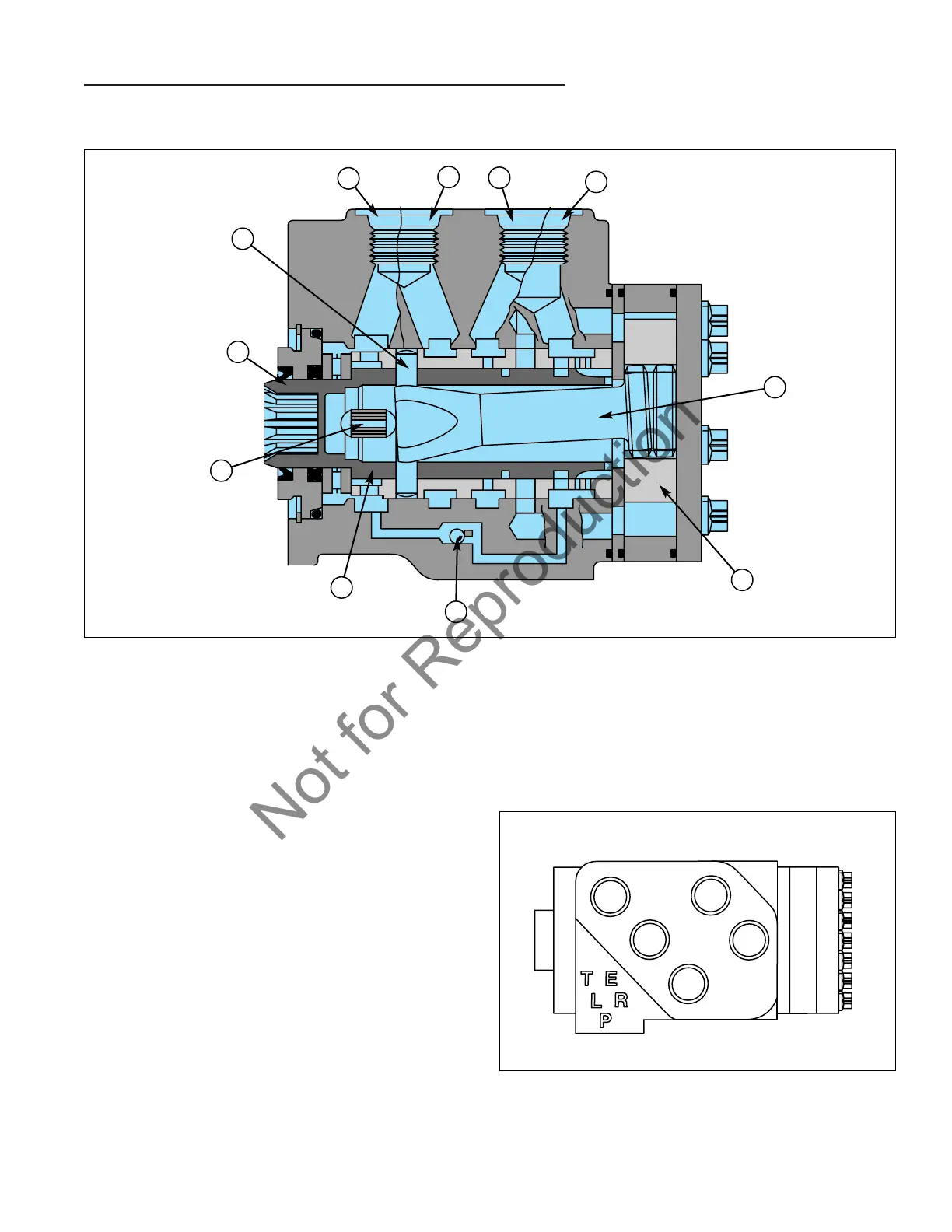

Figure 2. Power Steering Unit
A. Pump Return (Tank)
B. Left Turn Port
C. Right Turn Port
D. Pump In Port
E. Drive
F. Gerotor Assembly
1
2
3
4
5
Figure 3. Hose Connections
Hose Connections
1. “T” Tank (From Steering Control Unit to Hydro-
Return)
2. “E” Power Beyond (To Implement Control Valve)
3. “L” Left (To Front of Steering Cylinder)
4. “R” Right (To Rear of Steering Cylinder)
5. “P” Power (From Hydro to Steering Control Unit-
Pressure)
A
K
J
F
I
H
G
E
D
C
B
G. Check Valve
H. Sleeve
I. Centering Springs
J. Spool
K. Pin
Not for Reproduction

Simplicity LEGACY Series Specifications

General

Engine Brand	Briggs & Stratton
Transmission	Hydrostatic
Deck Type	Fabricated
Cruise Control	Yes
Cutting Width	52 in.
Turning Radius	18 inches
Cutting Height	1.5 - 4.5 in.
Deck Material	Steel
Warranty	3 years
