Simplicity LEGACY Series - Page 164

12 Brake System Service
Diagrams
12 - 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
20
21
22
24
23
25
26
27
28
29
30
31
32
33
35
34
36
37
38
39
42
43
44
4040
41
45
18
19
18
19
4040
46
47
48
49
50
51
52

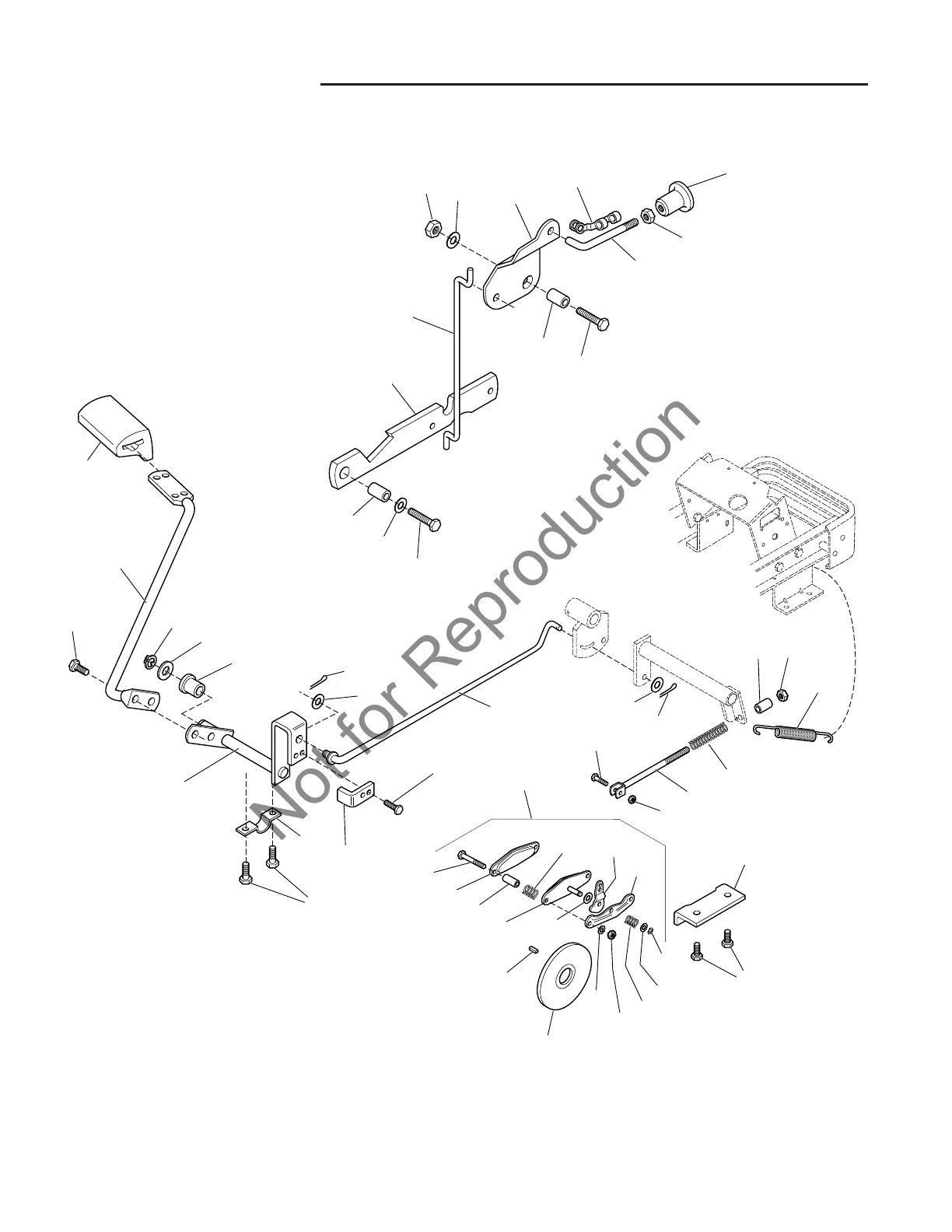

Figure 1. Brake Control and Parking Brake Group – Exploded View Diagram (All Models)
