Simplicity LEGACY Series User Manual

7 - 5
7 Electrical System Service
All Models
Lower Wiring Harness (All Models)
REF NO. QTY. DESCRIPTION
1 1 HARNESS, Rear
2 1 SWITCH, Seat
3 2 LOCKWASHER
4 2 CAPSCREW
5 2 TAIL LIGHT ASSEMBLY
6 2 BULB, Tail Light
7 2 NUT, Hex Flange
8 2 NUT, KEPS Lock
9 2 CAPSCREW
10 1 SWITCH, Cruise
Fuel Gauge
To Upper
Harness
To Rear PTO
(Optional)
5
1
2
3
4
7
8
9
10
7
6
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.

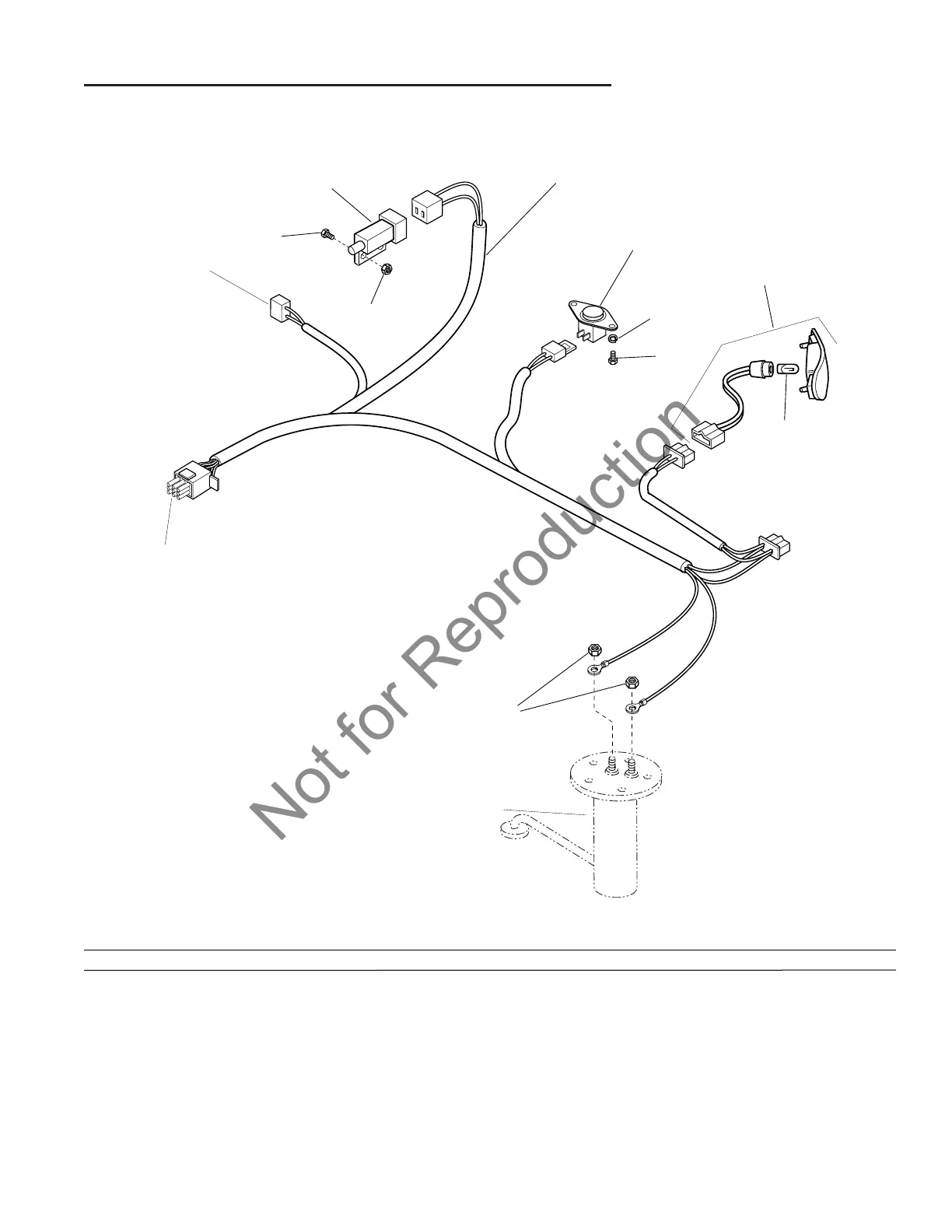

Figure 1. Exploded View Diagram – Lower Wiring Harness (All Models)
Not for Reproduction
