7 Electrical System Service
Location and Replacement

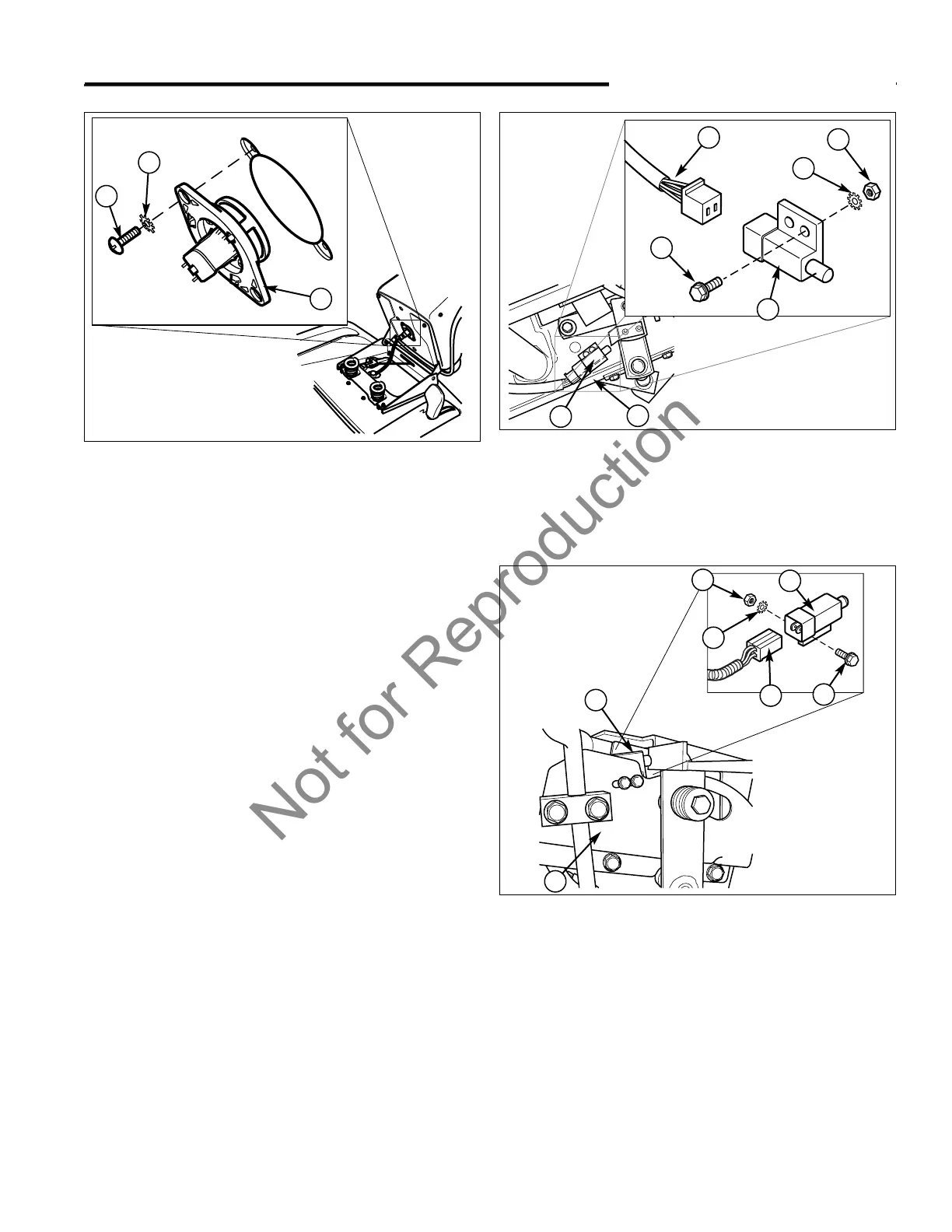

Figure 22. Seat Switch Removal and Replacement
A. Screw C. Seat Switch
B. Washer
A
C
B
A
PTO CLUTCH
For replacement procedure, see Section 12, PTO
CLUTCH SERVICE.
Figure 23. Brake Pedal Switch Removal and
Replacement
A. Switch D. Washer
B. Wire Harness E. Nut
C. Screw F. Frame
BRAKE PEDAL SWITCH
The brake pedal switch is located under right side of
frame, next to the pedal.
1. Disconnect and secure the negative battery cable,
(see Section 6, COMMON SERVICE PROCE-
DURES).
2. Elevate the front of the unit. (See Section 6, COM-
MON SERVICE PROCEDURES, Elevating Front End
for Safe Service.)
3. Label and disconnect the wire harness.
4. Remove the screws (C, Figure 23), nuts (E), and
washers (D) from the switch (A) and frame (F).
5. Remove the switch (A).
6. Install switch in reverse order of removal.
4. Remove the screws (C, Figure 24), nuts (E), and
washers (D) from the switch (A) and seat deck sup-
port (F).
5. Remove the switch (A).
6. Replace the switch in the same orientation as the
original and assemble in reverse order.
Figure 24. Cruise Switch Removal and Replacement
A. Switch D. Washer
B. Wire Harness E. Nut
C. Screw F. Seat Deck Support
C
B
D
A
F
A
E
D
E
C
A
F
A
B
CRUISE CONTROL SWITCH
The cruise control switch is located under right wheel
well.
1. Disconnect and secure the negative battery cable,
(see Section 6, COMMON SERVICE PROCE-
DURES).
2. Remove the seat deck. (See Section 14, SEAT
DECK SERVICE.)
3. Label and disconnect the wire harness.
