72 | Setup at installation

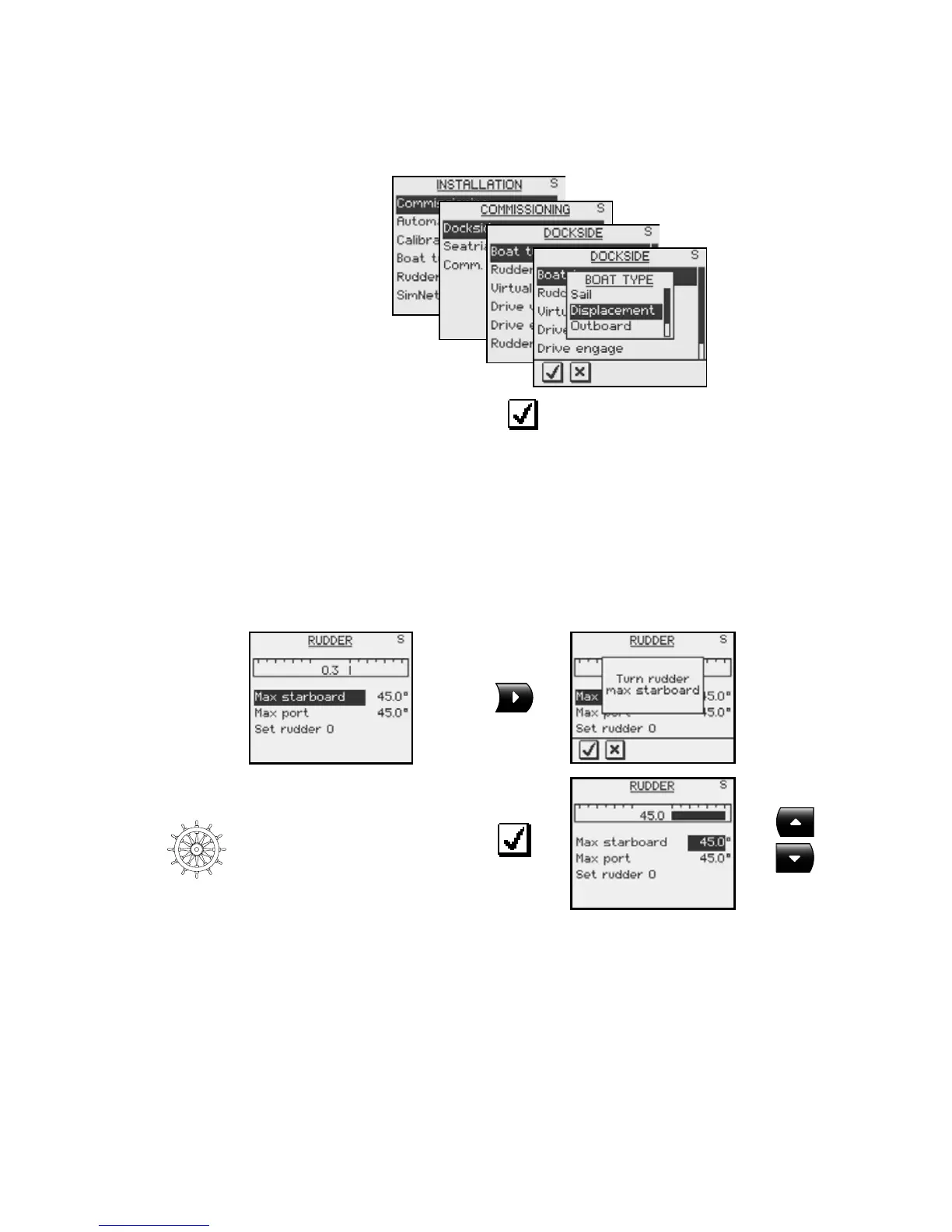

Select appropriate Boat type by using the Up and Down
keys.
Confirm by pressing the
softkey.
Rudder feedback calibration
Make sure the unit is installed and aligned as per
instruction in the AC12/42 Installation manual.
The rudder feedback calibration will set the correct
relationship between the physical rudder movement and
the rudder angle readout.
Manually turn the
helm/wheel to
starboard until the
rudder stops at
starboard lock (H.O.).
The Max starboard angle is the angle read by the rudder
feedback unit before any adjustment is made.
If the actual rudder angle is different from that of the
display, correct the reading with the Up/Down keys (see
note next page).
