Setup at installation | 75

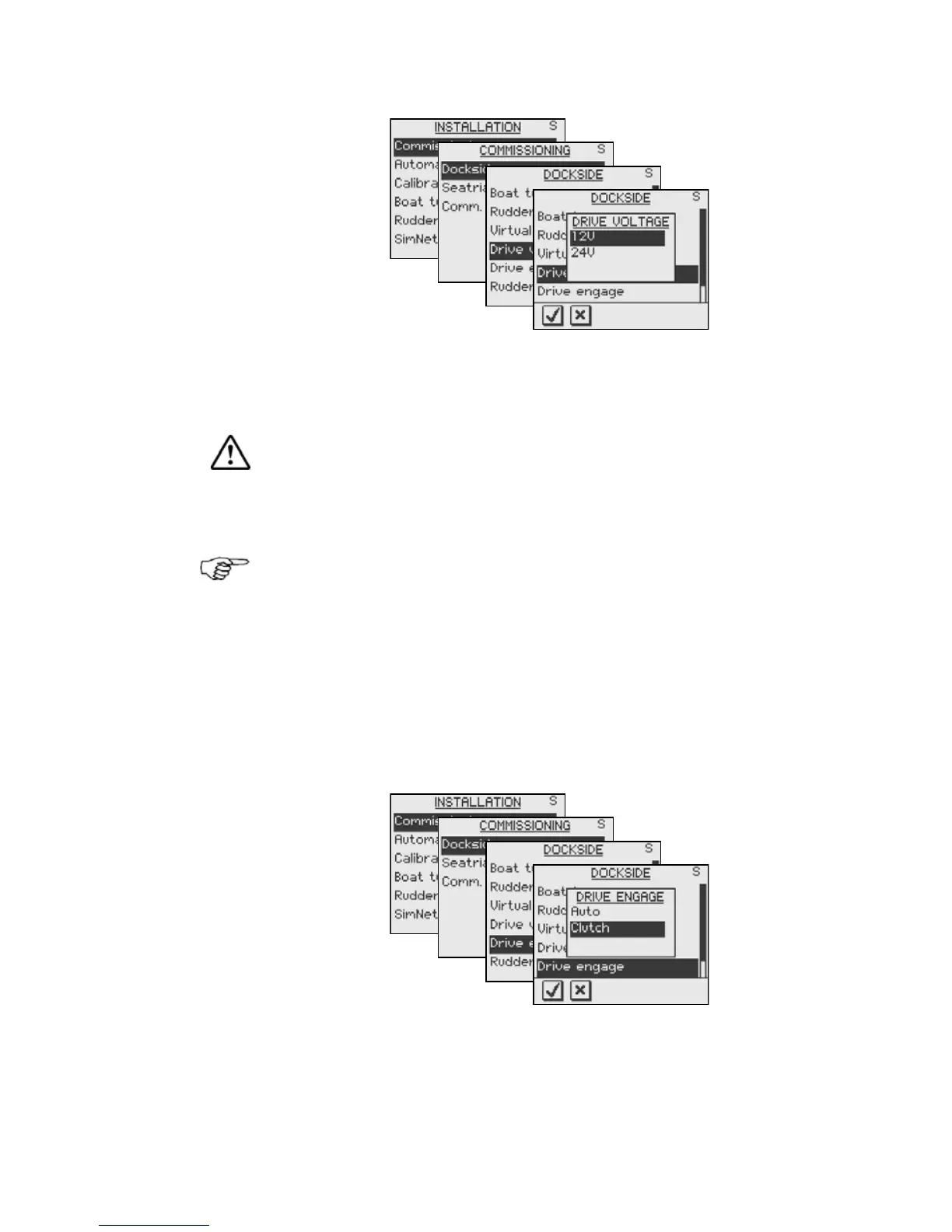

The drive engage/bypass clutch output follows the same
voltage as set for the drive unit. It is not possible to
select a higher voltage than the supply voltage.
Selection of improper voltage level for your drive
unit may damage both the drive unit and the
autopilot computer even if the protection circuits in
the autopilot computer are activated.
The drive unit voltage setting does not apply when
operating solenoids on a continuous running pump.
Hence, the voltage to the solenoids will be the same as
the supply voltage.
During the Rudder Test, the AP28 system will
automatically detect whether the drive unit is a reversible
motor or a solenoid is operated.
Drive engage
Drive engage has the following settings: Auto and
Clutch.
