OPERATION
35 988-12718-003

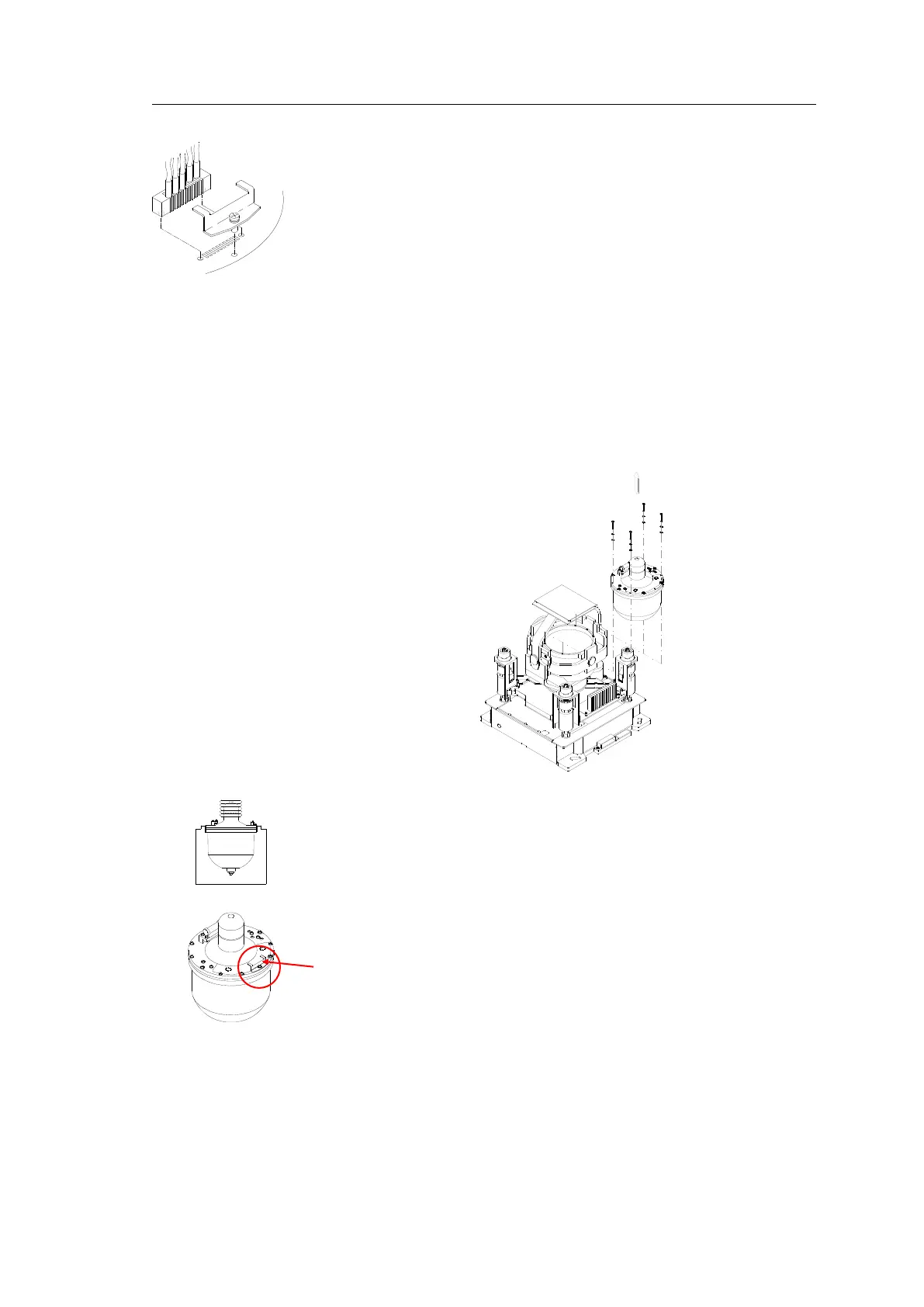

3 Loosen the screw on the plug-holder on the Sensitive element, and
disconnect the plug.
4 Remove the 4 screws securing the Sensitive element. Tilt the
Horizontal ring to the side where the plug is located, and carefully
remove the element from the compass.
5 Place the defective Sensitive element in its original package, and put
the rubber tube on top of the element.
6 Fasten the screw on the plug holder on the defective Sensitive
element.
7 Lift the new element carefully from its package, and remove the
rubber tube on top of the element.
Note!
The package and the rubber tube should be kept for re-use if the Sensitive
element has to be sent to factory for service!
