6.2 GROUND CONTROLLER
(EQUIPPED WITH CUMMINS, WEI-
CHAI OR YUCHAI ENGINES)

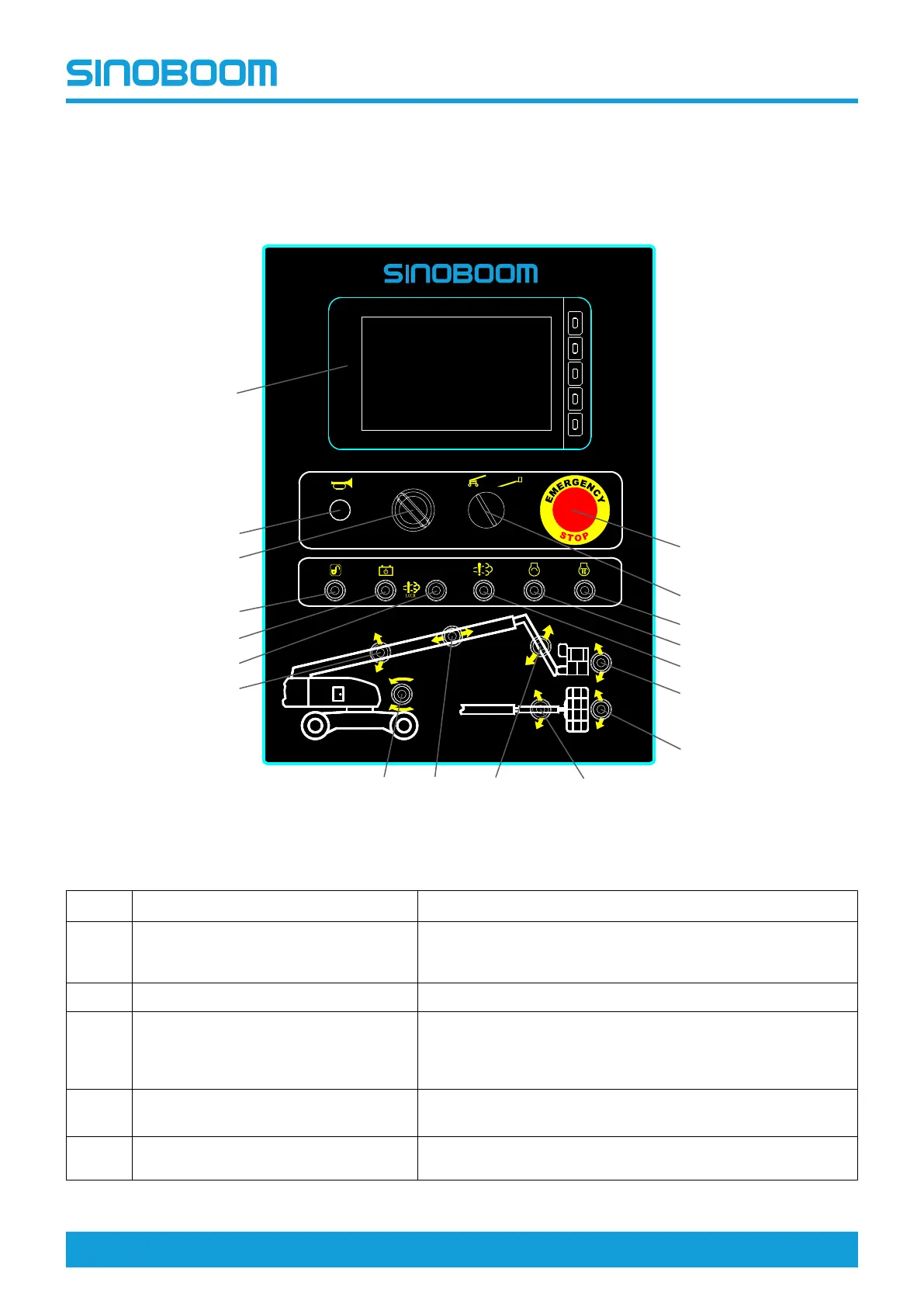

Fig 2
Table 6-2
No. Indication
Description
1
Ground display
Provide machine working states, engine states, fuel/battery
level, alarm information, fault codes & query, and other
information.
2 Horn
Press the button, and the horn will sound.
3
Key switch
Turn the switch to ON position, the machine will be powered
on;
turn the switch to OFF position, the machine will be powered
off.
4 Enable switch
Move and hold the switch, and all functions will be enabled to
operate.
5
Emergency power switch
To provide emergency power in case of main power source
failure.
OFF
ON
1
2
3
4
5
6
7
8
10 11
18
9
12
13
14
15
16
17
