OPERATION INSTRUCTIONS
TB20J Plus Operation Manual
47
© Feb. 2023

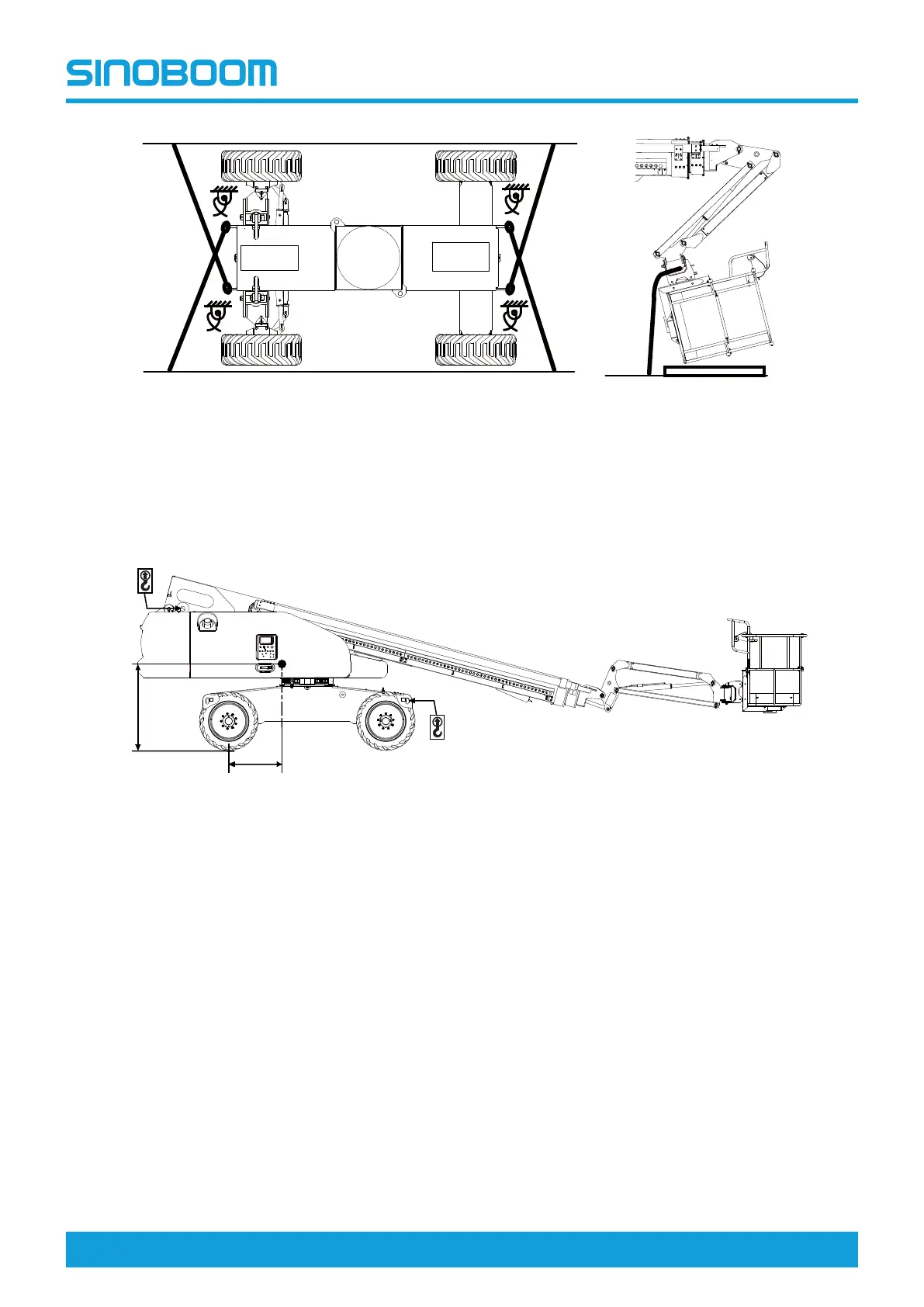

Fig 5 Transportation Diagram
Lifting
1. Determine the center of gravity of the machine.
2. The rigging must be attached to the lifting point
specified on the machine.
3. Adjust the rigging properly to avoid damage to the
machine and keep the machine level.
X=761mm (2ft 6in) Y=1300mm (4ft 3in)
Fig 6 Lifting diagram
7.15 STORAGE
The mobile elevating work platform should be stored in
rain-proof, moisture-proof and well-ventilated places
free from sunlight and corrosive gas.
In order to ensure the normal use of the machine in fu-
ture, the following measures should be taken when stor-
ing the machine:
1. Retract and lower the boom to the stowed position.
2. Close and lock all panels and gate locks on the
machine.
3. Press the emergency stop switch on the ground
controller and platform controller, turn the key switch
to the OFF position and remove the key.
4. Press the main power switch.
5. Chock the wheels.
6. Wipe off the dust and oil from the machine to keep it
clean.
7. Apply lubricating oil to corrosive parts.
8. When long-term storage is required, the fuel (if
equipped with engine) and water should be drained,
and the positive pole and negative pole of the bat-
tery should be disconnected.
9. When the machine is to be stored for more than
three months, idle the machine every three months
for not less than one hour each time, and clean and
maintain the machine.
10. When the machine has been stored for more than
one and a half years, a comprehensive inspection
and maintenance on the whole machine should be
carried out before use, and aging seals and filter
