OPTIONS
Table 11-4 (Continued)
No. Part Number Part Name Quantity Comment
6 105064043136 Vertical cushion block 4
7
105064043017 Mounting plate 1
8 105064043020 U-bolt 4
9
\ Strap 3000mm*25mm
1
Installation and Removal
Unsafe Operation Hazard
Except for designated models and
corresponding markets, it is
forbidden to install the glass panel
bracket device on other Sinoboom
products or any models in other
markets.
Installation instructions

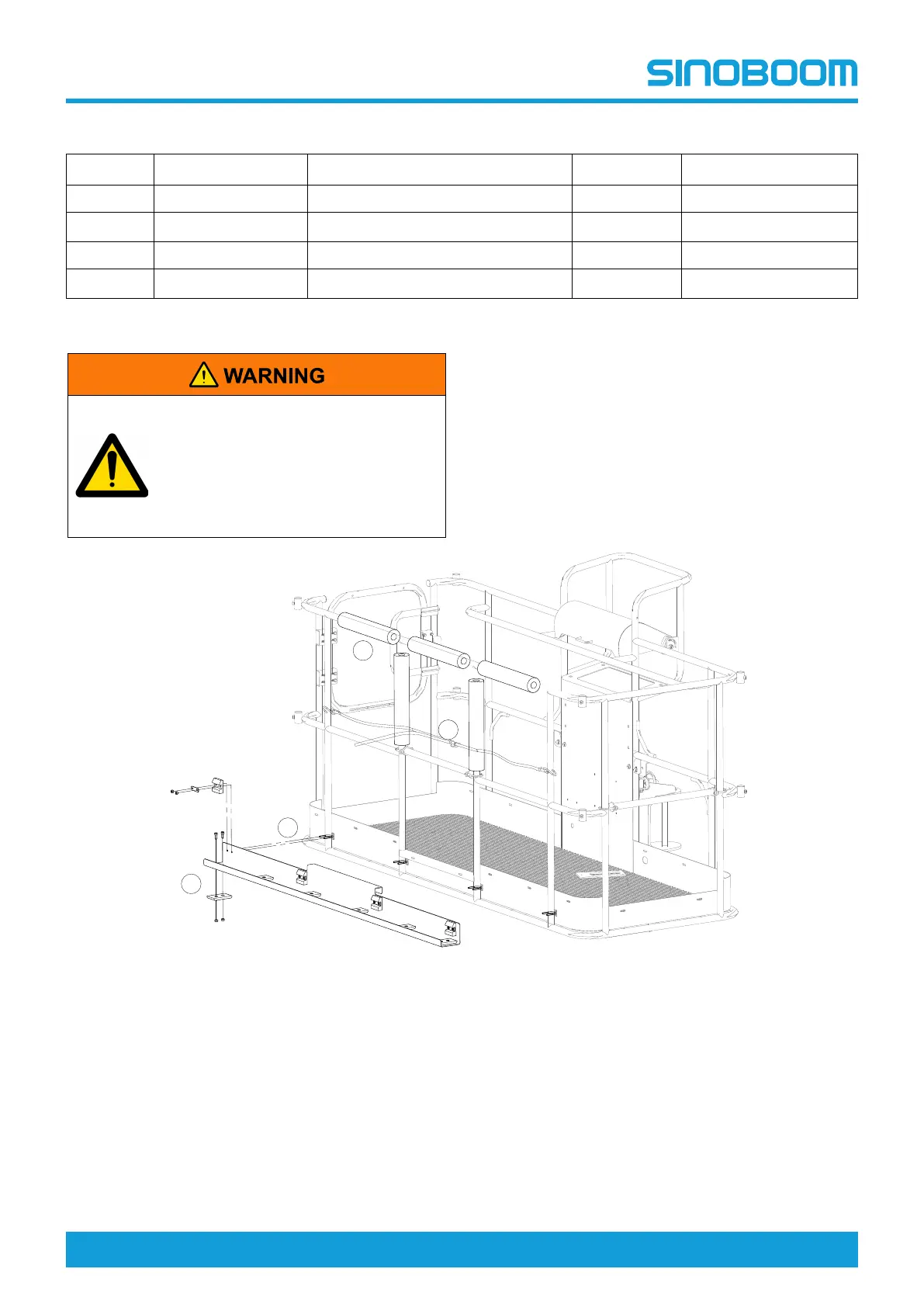

Fig 5
1. Install the cushion block with bolts and nuts sequen-
tially on the mounting plate of the glass panel brack-
et device.
2. After roughly fixing the mounting plate at its mount-
ing position, align the U-bolt with the mounting hole
of the mounting plate and vertical cushion block,
and fix it using the cushion plate and nut. Install oth-
er mounting plates sequentially at the locations as
shown in the figure above.
3. Install the anti-collision hose on the platform
guardrail.
4. Fasten the strap to the guardrail so that the mount-
ing plate is more securely mounted on the platform.
