Sinoboom TB20J Plus - Installation and Removal

OPTIONS
TB20J Plus Operation Manual
77
© Feb. 2023
Table 11-7 (Continued)
No. Part Number Part Name Quantity Comment
12 105064043112
Rear fence plate
1
13 105064043118
Rear right fence plate
1
14 215030000005
Nut M8-8-ZnD GB/T 6170
2
15 215010000062
Bolt M8×45-8.8-ZnD GB/T 5783
2
16 215010000054 Bolt M6×40-A2-70 GB/T 5783 6
17 215040000034 Washer 8-200HV-ZnD GB/T 97.1 2
18
\
Nylon cable tie
\
Installation and Removal
Unsafe Operation Hazard
• Except for designated models
and corresponding markets, it is
forbidden to install the platform
fence device on other Sinoboom
products or any models in other
markets.
• The platform fence device can on-
ly be installed on machines
equipped with platform revolving
gate.

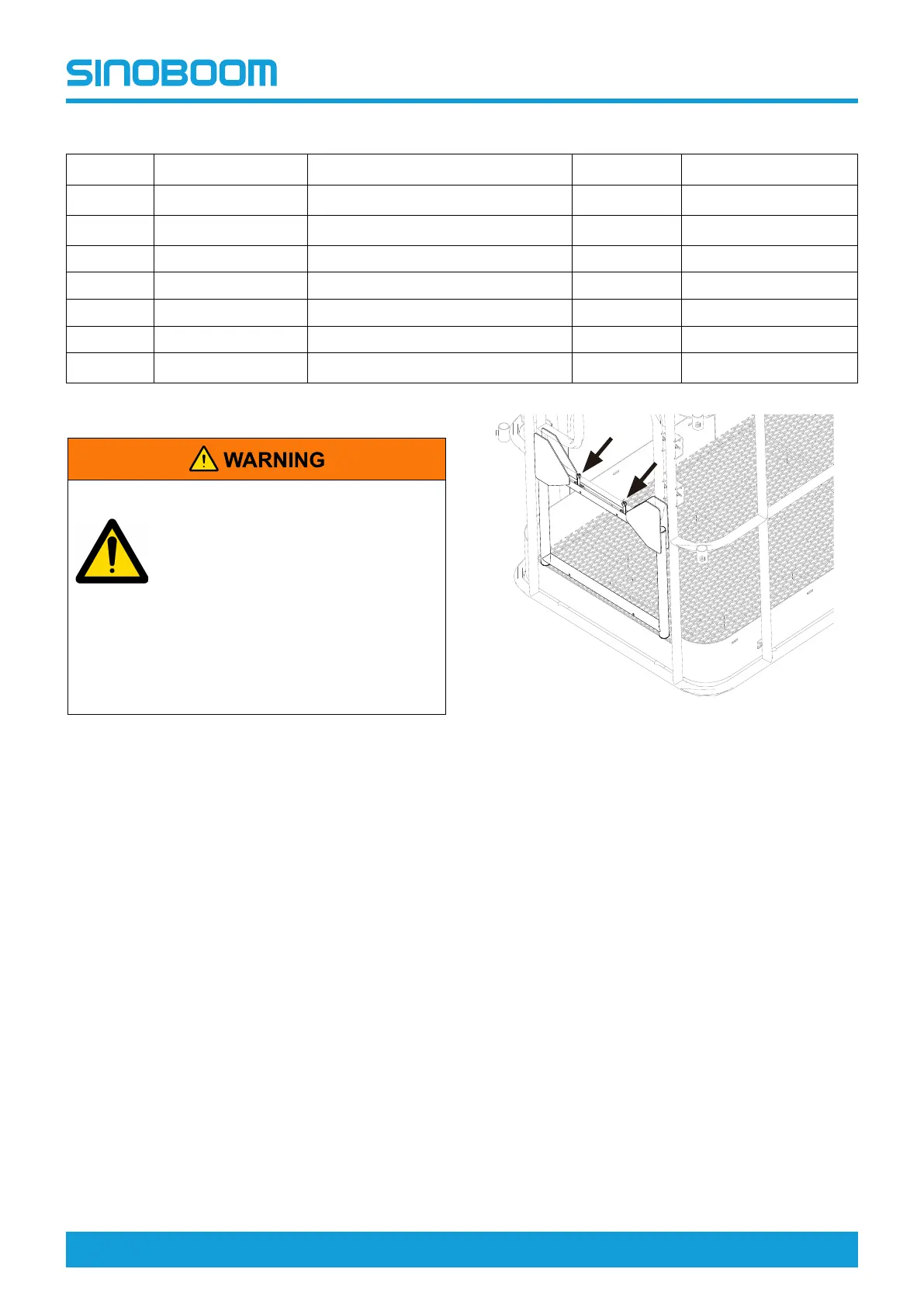

Installation instructions
1. Install the gate frame weldment at the platform re-
volving gate.
Fig 8
2. Half-height platform fence device: Install each fence
component on the platform in turn according to the
figure below, with the lower part ① of the fence fixed
by bolts, and the upper part ② and the side ③ fixed
by nylon cable ties or bolts.
