Full-height platform fence device
components

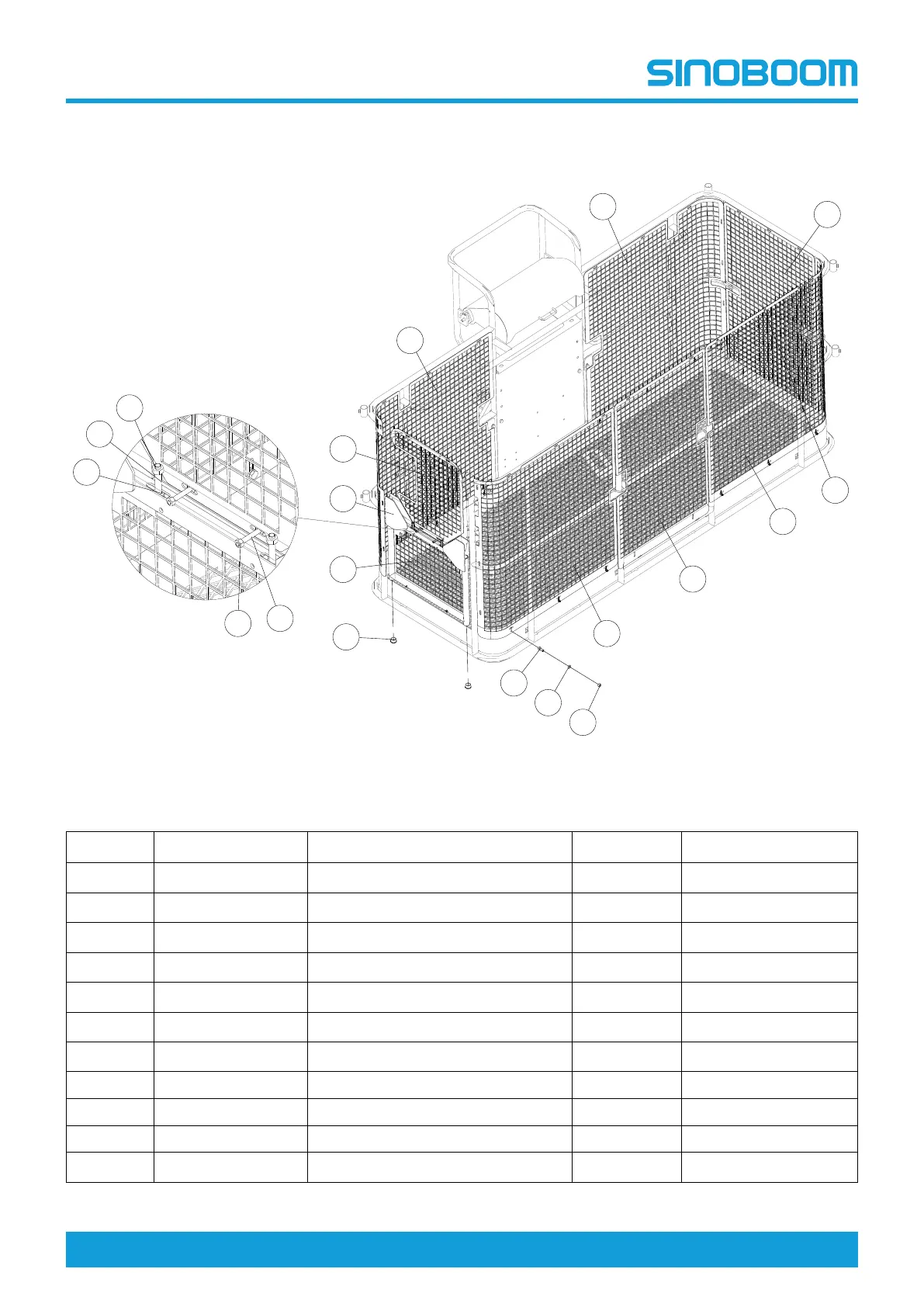

Fig 7
Table 11-7
No. Part Number Part Name
Quantity Comment
1 105064043106
Side fence plate
1
2 105064043109
Front right fence plate
1
3 105064043110 Front left fence plate 1
4 105064043114
Upper side fence plate
1
5
105064043103
Lower gate frame weldment
1
6 105064043107 Lower side fence plate 1
7
105064043177 Pipe seal 4
8 215010000050 Bolt M6×16-A2-70 GB/T 5783 17
9 215040000033
Washer 6-A2 GB/T 97.1
23
10 215030000004
Nut M6-A2-70 GB/T 6170
23
11 105064043108
Rear left fence plate
1
5
11
13
2
3
12
1
4
6
8
9
10
7
