229042ABA SJ46 AJ+, SJ46 AJ, SJ51 AJ
Section 1 – Scheduled Maintenance Scheduled Maintenance Inspections
3
Hydraulic pump and motor (B)
▪
Make sure there are no loose or missing parts.
▪
Make sure there is no visible damage.
▪
Make sure all bolts are correctly tightened.
▪
Make sure all fittings and hoses are correctly
tightened and there are no hydraulic leaks.
4
High-pressure filter (B,C)
▪
Make sure the housing is attached and tight.
▪
Make sure there is no visible damage or
hydraulic leaks.
C - Annual Inspection
▪
For the filter element replacement procedure,
refer to 5.5-1 Check and Replace the High
Pressure Filter.

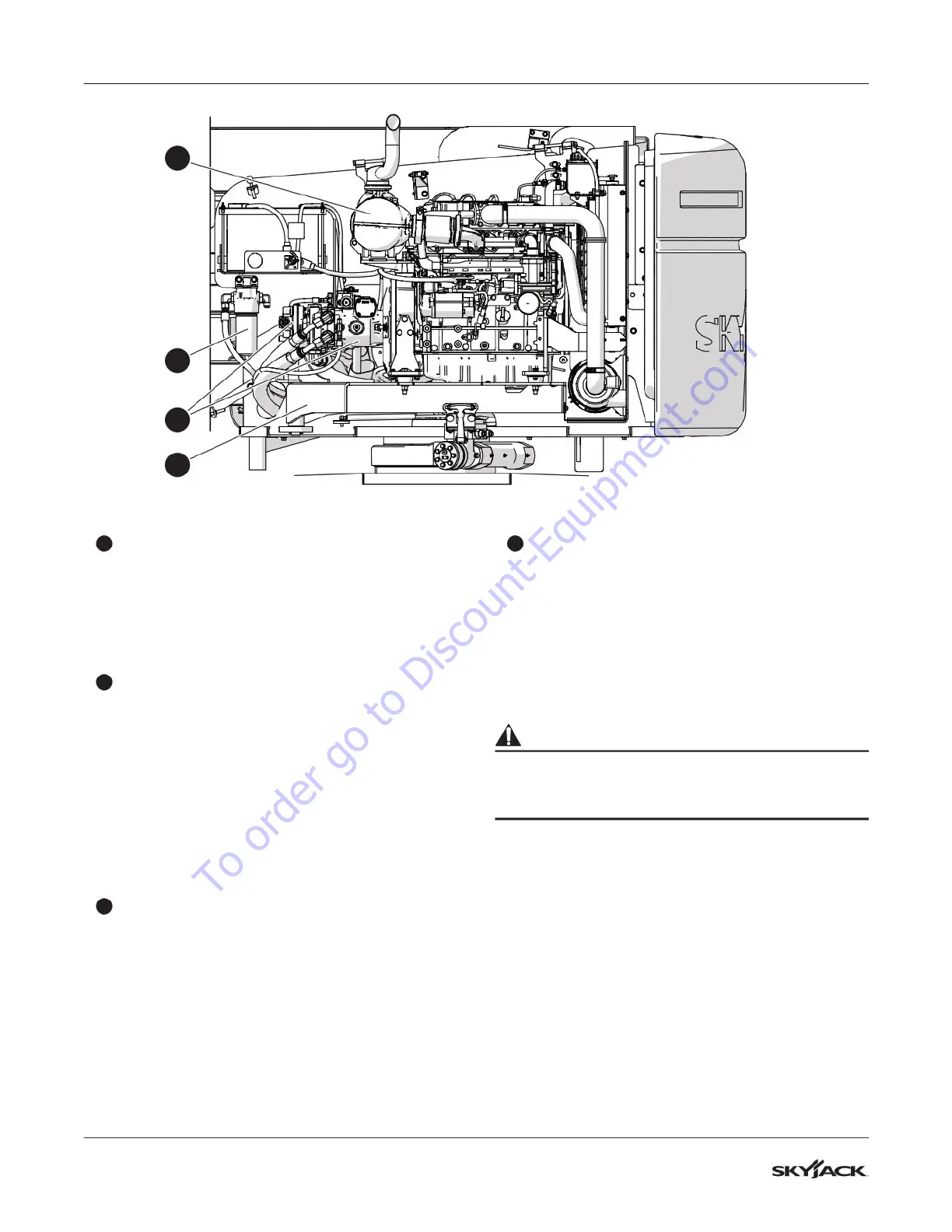

Engine and Components
5
Engine pivot tray (B)
▪
Make sure there are no loose or missing parts.
▪
Make sure there is no visible damage.
▪
Make sure that the engine is correctly attached
to the pivot tray.
▪
Make sure the tray-securing bolt is in place.
6
Muffler and exhaust (B)
▪
Make sure that the muffler and exhaust
systems are correctly attached with no visible
damage.
Engine fuel leaks (B,C)
▪
Make sure that there no fuel leaks at the
engine.
▪
Make sure there is no visible damage.
WARNING
Explosion or fire hazard. Do not smoke near the
fuel system. If you do not obey, there is a risk of
death or serious injury.
Engine fuel filter (B,C)
▪
Make sure there are no loose or missing parts.
▪
Make sure there is no visible damage.
C - Annual Inspection
▪
For the engine fuel filter replacement
procedure, refer to the engine manual.
6
3
5
4
