277
229042ABASJ46 AJ+, SJ46 AJ, SJ51 AJ
Options Section 5 – Procedures
5.12-2 Generator Frequency/Voltage Check & Adjustment
Check the Frequency and Voltage
1. On the base control box, turn the base/off/platform key switch to the platform position.
2. On the platform control box, ensure the generator switch is in the off position .
3. Select the start position on the start/emergency power switch until the engine starts .
4. Turn the generator on/off switch to the on position .
5. Connect a multimeter to the platform power outlet.
6. Note the voltage and frequency.
Adjust the Frequency and Voltage

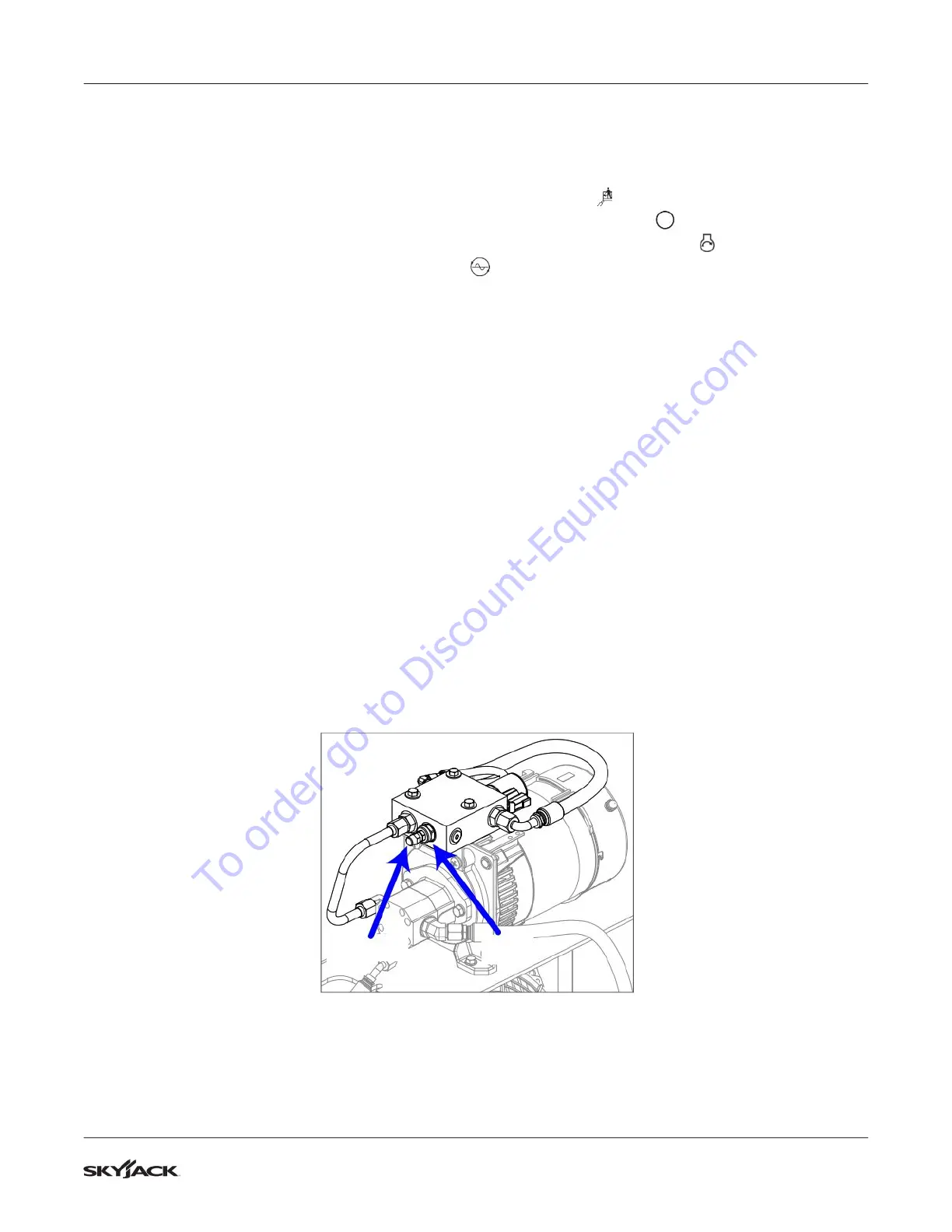

1. Loosen the generator control valve jam nut.
2. Turn the control valve screw with an allen head wrench. Turning it counterclockwise (out) increases voltage
and frequency, turning it clockwise (in) decreases voltage and frequency.
3. The output must be:
ANSI/CSA
â–ª
Voltage: 104.4 VAC to 127.2 VAC
â–ª
Frequency: 57 Hz to 63 Hz
CE & AS
â–ª
Voltage: 207.0 VAC to 243.8 VAC
â–ª
Frequency: 47.5 Hz to 52.5 Hz
4. Tighten the jam nut when the correct output is achieved.
Screw
Nut
