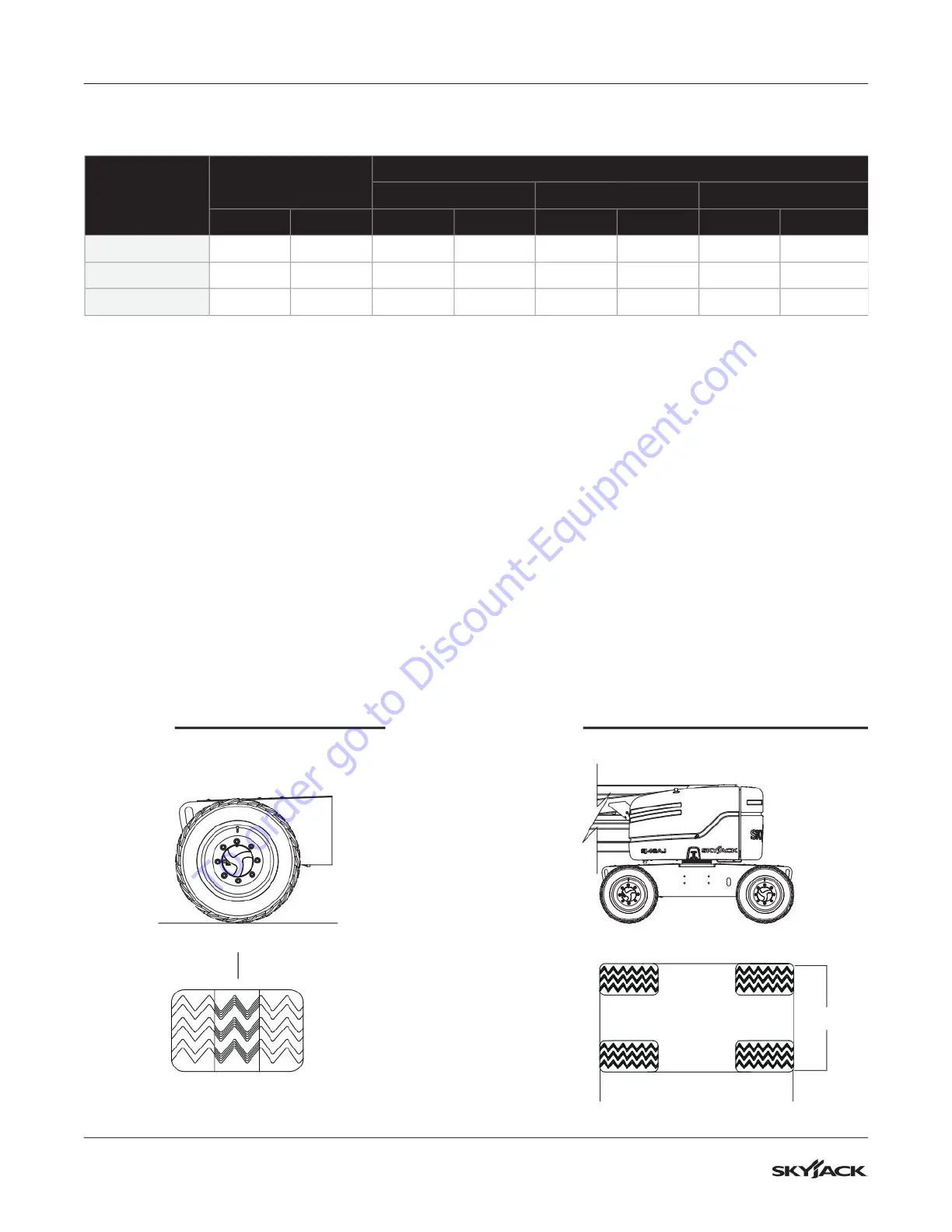

Section 2 – Maintenance Tables and Diagrams Floor Loading Pressure
2.10 Floor Loading PressureTable
Locally Concentrated Pressure (LCP)
Foot Print Area identified by test
Overall Floor Load (OFL)
Base Area = Length x Width
Base Width
Base Length
Foot Print Area
LCP = OFL =
Wheel Load Weight of MEWP + Capacity
Foot Print Area Base Area
Model
Gross MEWP
Weight
Total MEWP Load
Wheel LCP OUP
kg lb kg lb kPa psi kPa psf
SJ46 AJ+ ANSI 6000 13,200 3000 6,600 1090 158 10 209
SJ46 AJ CE & AS 7180 15,830 3527 7,775 827 120 10.9 227
SJ51 AJ CE & AS 7543 16,630 3842 8,470 917 133 11.4 239
2038AA
â–ª
Gross MEWP Weight = Weight + platform capacity
â–ª
LCP – Locally Concentrated Pressure – is a measure of how hard the MEWP tire tread presses on the area
in direct contact with the floor. The floor covering (tile, carpet, etc.) must be able to withstand more than the
indicated values above.
â–ª
OFL – Overall Floor Load – is a measure of the average load the MEWP imparts on the whole surface
projected directly underneath it. The structure of the operating surface (beams, etc.) must be able to
withstand more than the indicated values above.
â–ª
The welder option will add approximately 158.8 kg (350 lb) to total MEWP weight and 79.4 kg (175 lb) to
the max. wheel load.
NOTE:
The LCP or OFL that an individual surface can withstand varies from structure to structure and is generally
determined by the engineer or architect for that particular structure.
