Skyjack SJ46 AJ+ Service Manual

60
229042ABA SJ46 AJ+, SJ46 AJ, SJ51 AJ
Section 3 – System Component Identification and Schematics Electrical Parts List

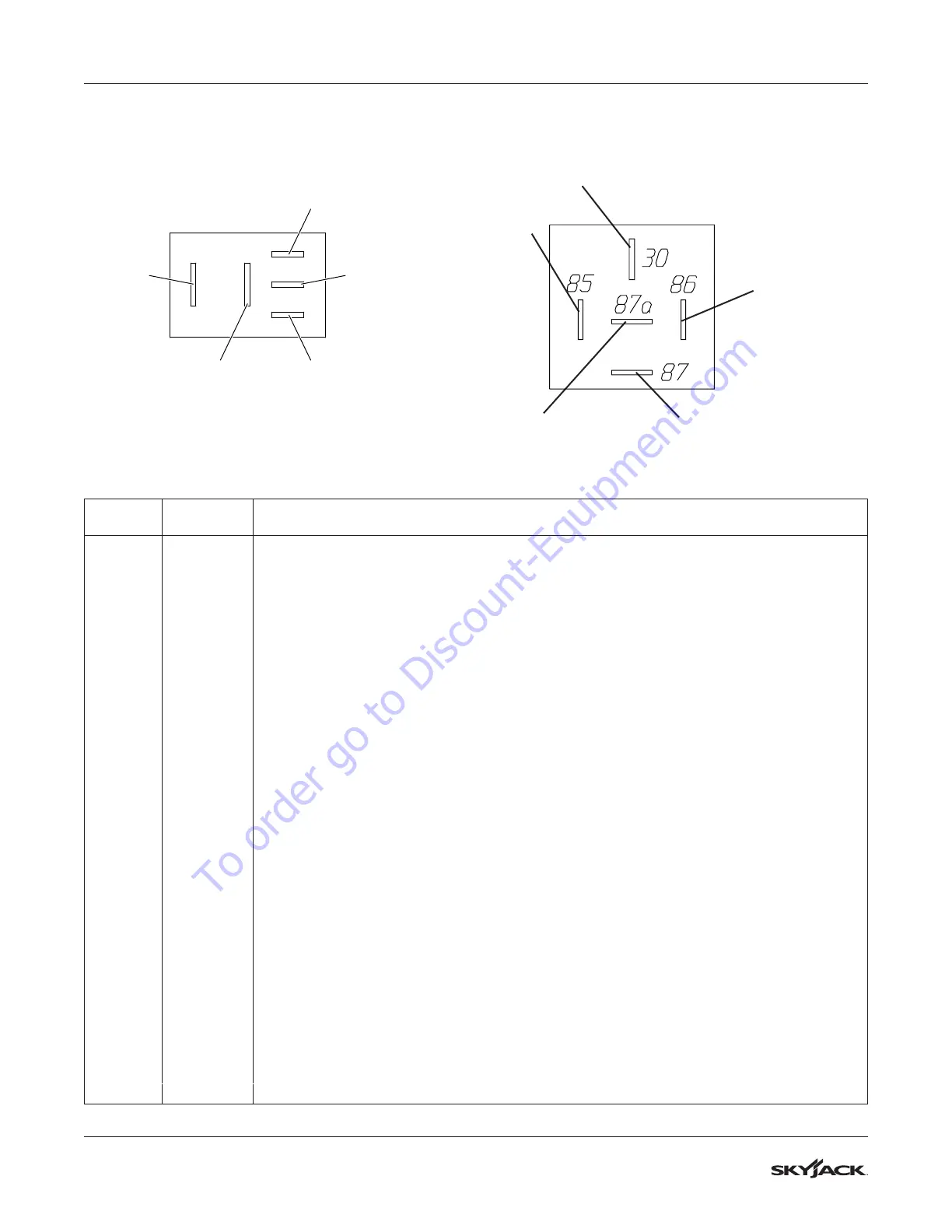

CONTROL (B+)
NORMALLY
CLOSED
CONTACT
SUPPLY (B+) (Common)
GROUND (B-)
NORMALLY
OPEN
CONTACT
Index
No.
Skyjack
Part No.
Description
01ACR 931298
RELAY, Micro 12 V DC, 30 amp
(Base control console) (ANSI)
01ACR 127131 RELAY, 12 Volt 40 Amp (Base control console - E-pump) (CE & AS)
04ACR 931298 RELAY, Micro 12 V DC, 30 amp (Base control console)
07CR 127131 RELAY, 12 Volt 40 Amp (Base control console - E-pump/Enable)
08CR 127131 RELAY, 12 Volt 40 Amp (Platform control console - Footswitch/Starter interlock)
09CR 127131 RELAY, 12 Volt 40 Amp (Engine power on)
21CR 127131 RELAY, 12 Volt 40 Amp (Base control console - Dump valve)
27CR 127131 RELAY, 12 Volt 40 Amp (Platform control console - Tilt alarm)
45CR1 127131 RELAY, 12 Volt 40 Amp (Base control console - 2-SPD motor)
45CR2 127131 RELAY, 12 Volt 40 Amp (Base control console - 2-SPD motor controller)
49CR 931298 RELAY, Micro 12 V DC, 30 amp (Base control console) (ANSI)
49CR 127131 RELAY, 12 Volt 40 Amp (Base control console - Horn) (CE & AS)
57ACR 127131 RELAY, 12 Volt 40 Amp (Base control console - Engine Start)
57DCR 931298 RELAY, Micro 12 V DC, 30 amp (Base control console)
59CR 127131 RELAY, 12 Volt 40 Amp (Base control console - Overload sensor) (CE & AS)
60CR 127131 RELAY, 12 Volt 40 Amp (Base control console - System power)
78CR 127131 RELAY, 12 Volt 40 Amp (Base control console - High idle)
79CR 127131 RELAY, 12 Volt 40 Amp (Base control console - Low idle)
82CR 127131 RELAY, 12 Volt 40 Amp (Platform control console - Load sensing alarm)
165CR 127131 RELAY, 12 Volt 40 Amp (Platform control console - Differential lock)
403ACR 931298 RELAY, Micro 12 V DC, 30 amp (Base control console - Positive air shut-off option) (ANSI)
2H-21A 159819 COIL, 12 Volt (Dump valve)
2H-34A 159821 COIL, 12 Volt (Jib enble valve)
2H-36A 159821 COIL, 12 Volt (Platform rotate enble valve)
3H-26 159827 COIL, 12 Volt (Brake valve)
3H-45 159827 COIL, 12 Volt (Motor 2-speed valve)
3H-65 159827 COIL, 12 Volt (Axle lock valve)
3H-165 159827 COIL, 12 Volt (Differential lock valve)
