Skyjack SJ46 AJ+ Service Manual

A B C D E F G H
V
Z
Y
X
W
80
229042ABA SJ46 AJ+, SJ46 AJ, SJ51 AJ

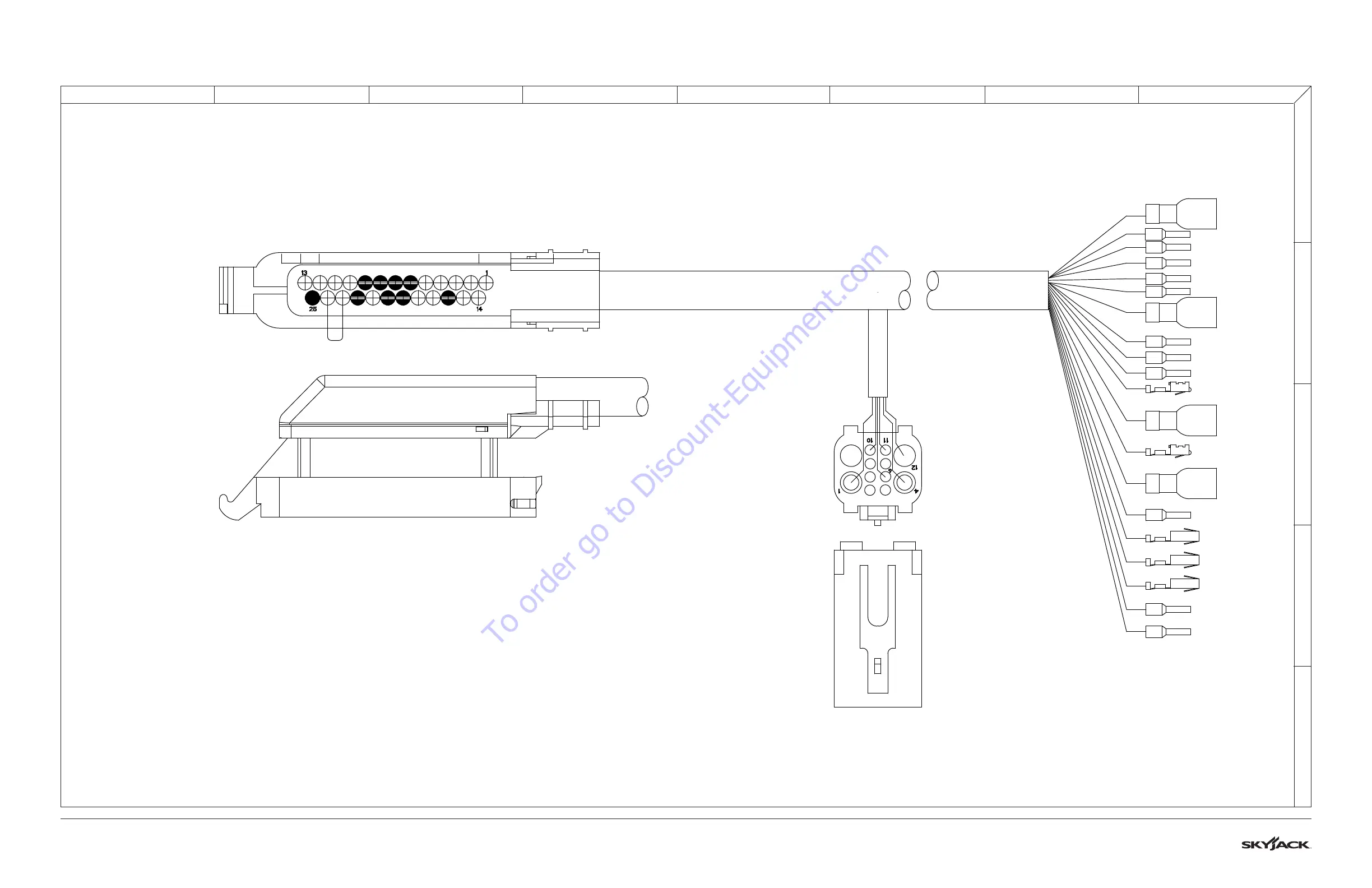

3.20 ECU Engine Wiring Diagram - Deutz D2011
M138708AE
PIN 1 - 02 - WHITE
PIN 2 - 106 - GREEN/PINK
PIN 3 - 96 - WHITE/GREY
PIN 4 - 76 - BROWN/BLUE
PIN 5 - 74 - GREEN/GREY
PIN 6 - PLUGGED
PIN 7 - PLUGGED
PIN 8 - PLUGGED
PIN 9 - PLUGGED
PIN 10 - 105 - GREEN/BROWN
PIN 11 - 104 - GREEN/ORANGE
PIN 12 - CAN H
PIN 13 - CAN L
PIN 14 - 54A - PURPLE/RED
PIN 15 - 84 - WHITE/BLACK/PURPLE
PIN 16 - PLUGGED
PIN 17 - 103 - BLACK/PURPLE
PIN 18 - 99 - BLACK/GREY
PIN 19 - PLUGGED
PIN 20 - PLUGGED
PIN 21 - 90 - RED/GREY
PIN 22 - PLUGGED
PIN 23 - JUMPER TO PIN 24
PIN 24 - JUMPER TO PIN 23
PIN 25 - PLUGGED
PIN 1 - 77 - BROWN/GREY
PIN 4 - 57C - BROWN/GREEN
PIN 6 - 02 - WHITE
PIN 10 - 11 - WHITE/ORANGE
PIN 11 - 00A - WHITE
PIN 12 - 54A - PURPLE/RED
TWIST WITH CAN L
TWIST WITH CAN H
02
74
54A
77
76
11
00A
57C
90
99
84
96
103
104
105
106
02
54A
CAN H
CAN L
1 1
1
1
1
