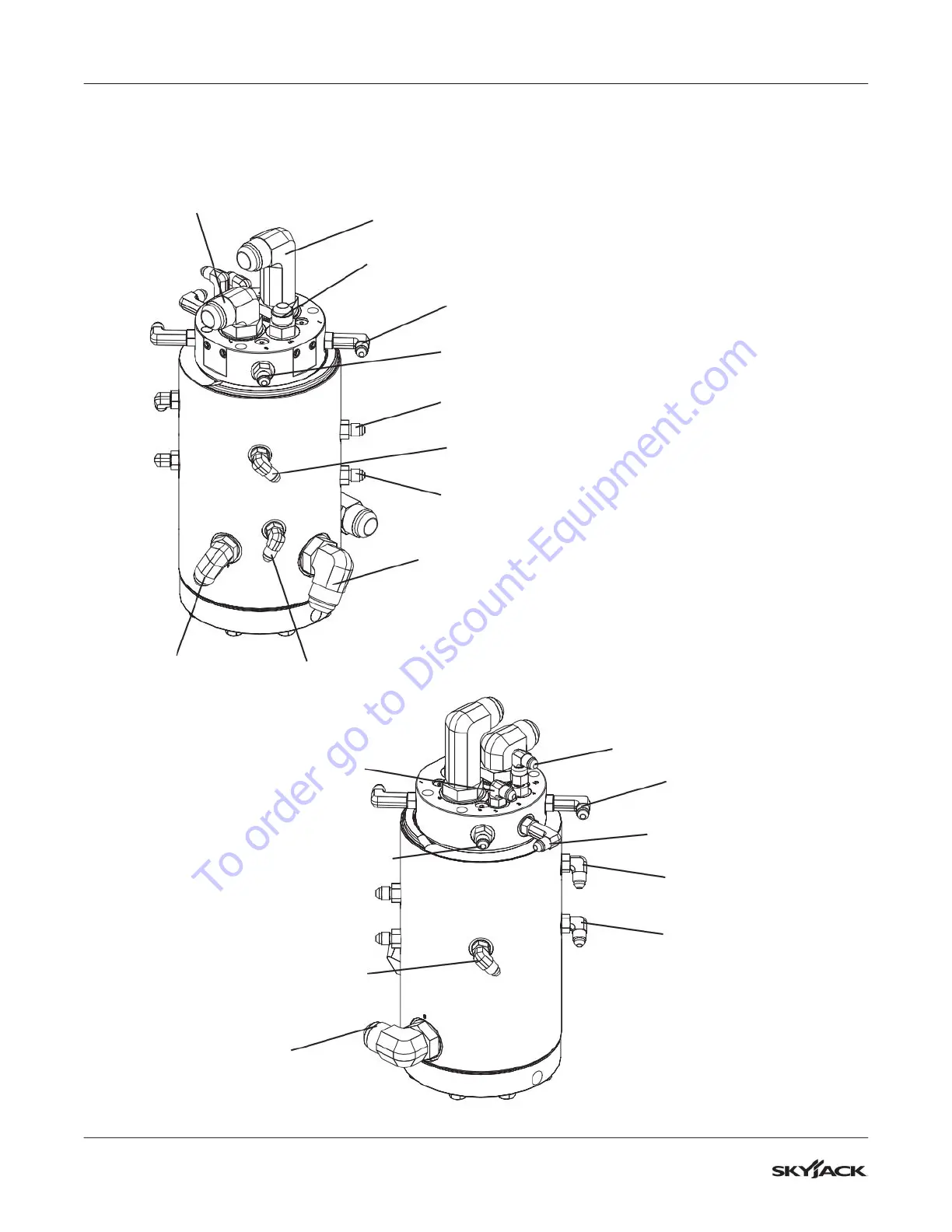

Section 3 – System Component Identification and Schematics Rotary Manifold Ports
Port 9
To Drive Motor
Port 7
To Drive Pump
Port 6
To Brake Manifold
Port 2
To Brake Manifold
Port 4
To Rear Brake Cylinder
Port 8
To Drive Motor
Port 8
To Drive Pump
Port 9
To Hydraulic Tank
Port 1
To Main Manifold
Port 5
To Main Manifold
Port 3
To Axlelock Cylinder
Port 2
To Axlelock Cylinder
Port 6
To Drive Motor
Port 7
To Drive Motor
Port 4
To Brake Manifold
Port 10
To Brake Manifold
Port 3
To Drive Pump
Port 1
To Steer Cylinder
Port 5
To Steer Cylinder
Port 10
To Drive Motor
3.7 Rotary Manifold Ports
