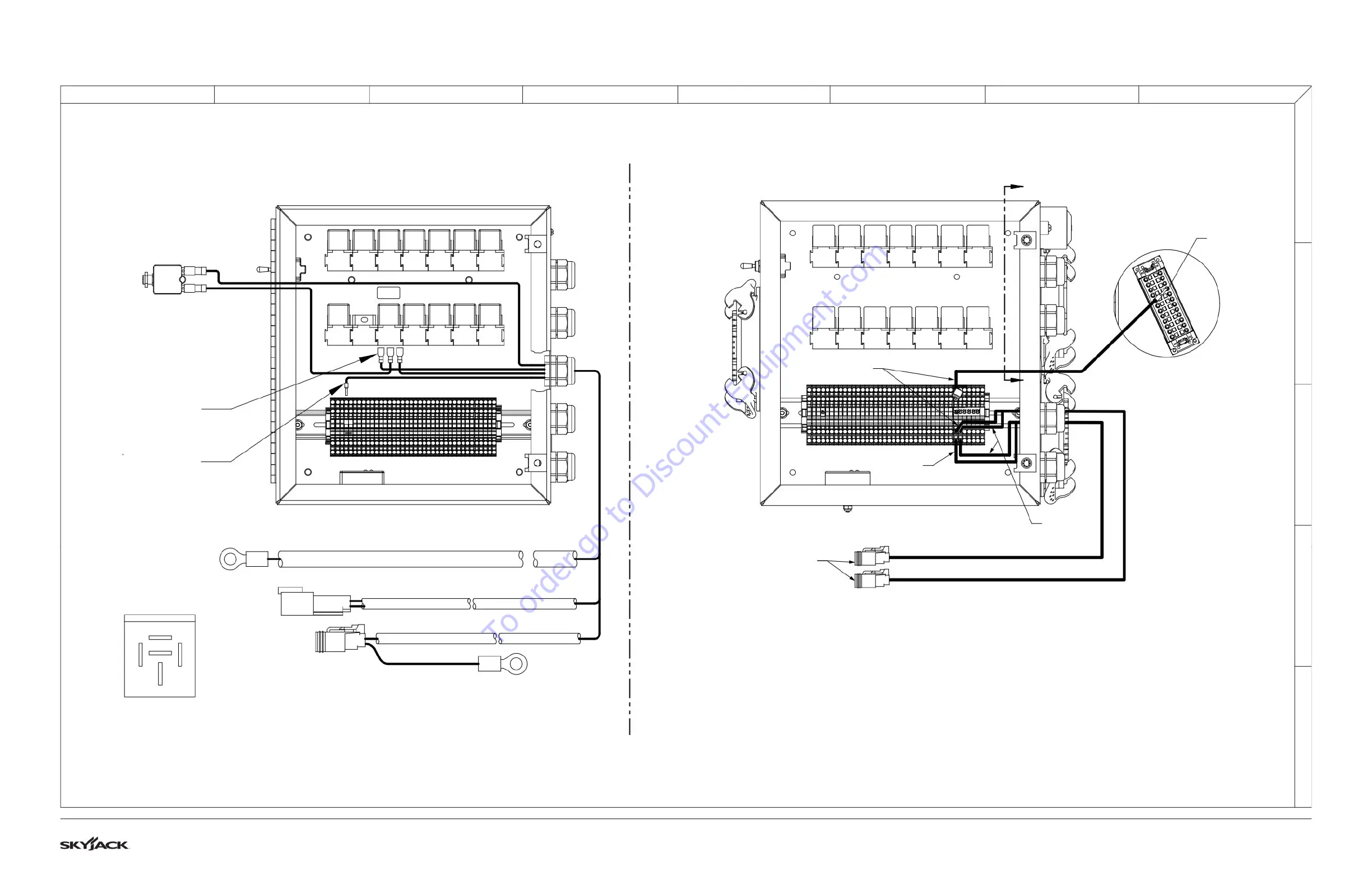

93
229042ABA
SJ46 AJ+, SJ46 AJ, SJ51 AJ
3.33
Oil C
oole
r and
12
kW Ge
nerat
or B
ase C
ontr
ol Bo
x Wiri
ng
M152418AC_M169999AB
57ACR 79CR
01CR 49CR
86CR
86A
86
03B
20A
03
03B
09
09
CONNECTOR
CONNECTOR
POWER STUD
INSTALL UNDER COOLER MOUNTING BOLT
TO EMERG. PUMP
03
1
TO TEMPERATURE SWITCH
1
00
TO COOLER FAN
86A
03B
86
SEE TOP VIEW
RELAY SOCKET
TO TERMINAL
BLOCK ‘09’
02 (existing)
A
A
TO TERMINAL
BLOCK 85
TO TERMINAL
BLOCK 85
TO GENERATOR
SOLENOID
VALVES
SECTION
A-A
CONNECT
21B TO PIN 21,
CONNECTOR B
Oil Cooler
Wiring
12 kW Generator
Wiring
TOP VIEW
RELAY SOCKET
TO TERMINAL
BLOCK 02
To
order
go
to
Discount-Equipment.com
89
91
