Section 1 – Scheduled Maintenance Scheduled Maintenance Inspections

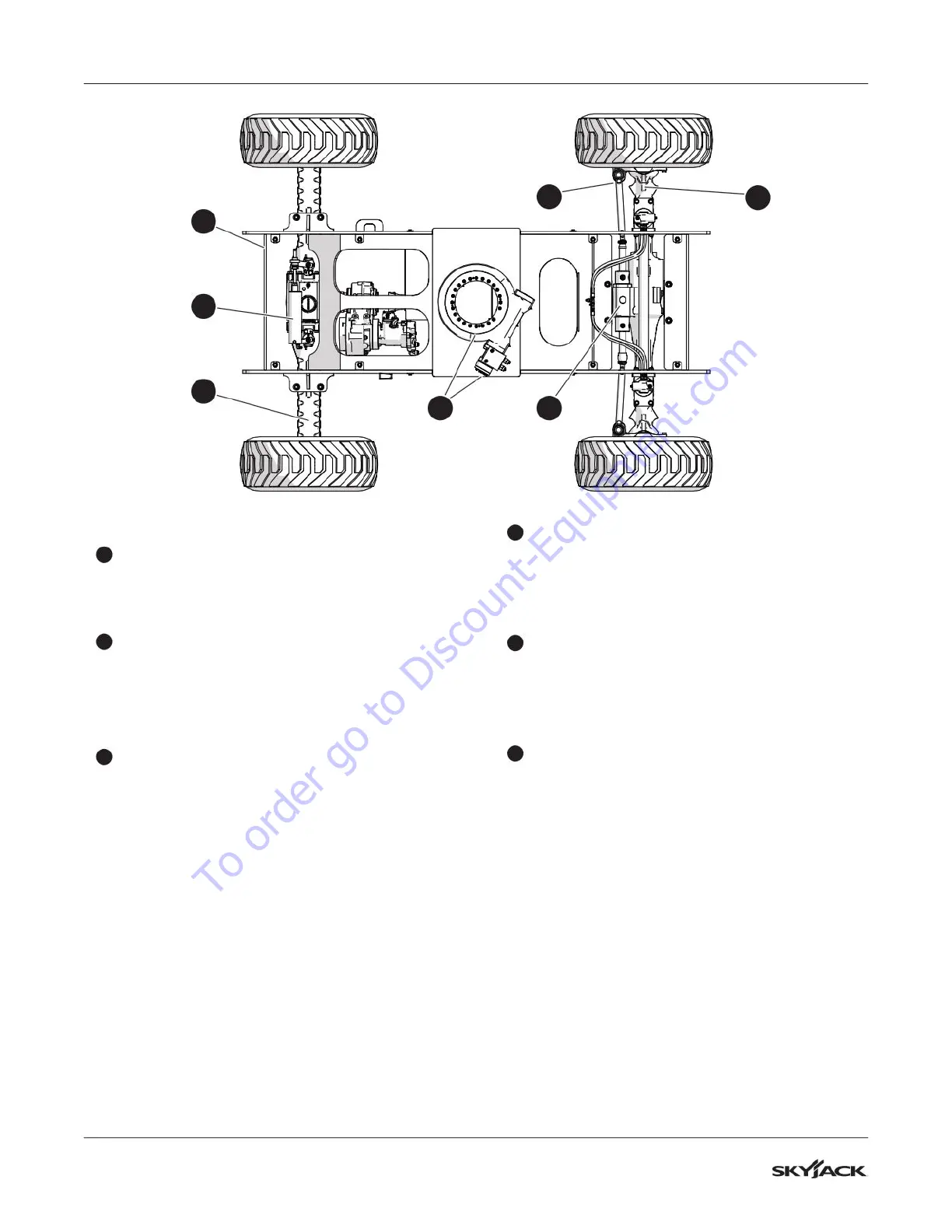

1.6-7 Base
1
Base weldment (B)
▪
Make sure there are no visible cracks in
welds or structure and there are no signs of
deformation.
2
Turret rotation motor and gear (B,C)
▪
Make sure there are no loose or missing parts.
▪
Make sure there is no visible damage.
C - Annual Inspection
▪
For the lube procedure, refer
3
Axles (B,C)
▪
Make sure the front and rear axles are
correctly attached.
▪
Make sure there are no loose or missing parts.
▪
Make sure all the fittings and hose connections
are tight.
▪
Make sure there is no sign of hydraulic
leakage.
C - Annual Inspection
▪
Check the brakes annually. Refer to the
procedure 5.10-11 Brake Inspection.
4
Brake Cylinder (B)
▪
Make sure there are no loose or missing parts.
▪
Make sure all the fittings and hoses are
correctly tightened and there are no hydraulic
leaks.
5
Steer cylinder (B)
▪
Make sure there are no loose or missing parts.
▪
Make sure all the fittings and hoses are
correctly tightened and there are no hydraulic
leaks.
6
Steer linkage (B)
▪
Make sure there are no loose or missing parts.
▪
Make sure the tie rod end studs are locked
and there is no visible damage.
4
3
6
5
3
1
2
