Skyjack SJ46 AJ+ Service Manual

68
229042ABA SJ46 AJ+, SJ46 AJ, SJ51 AJ

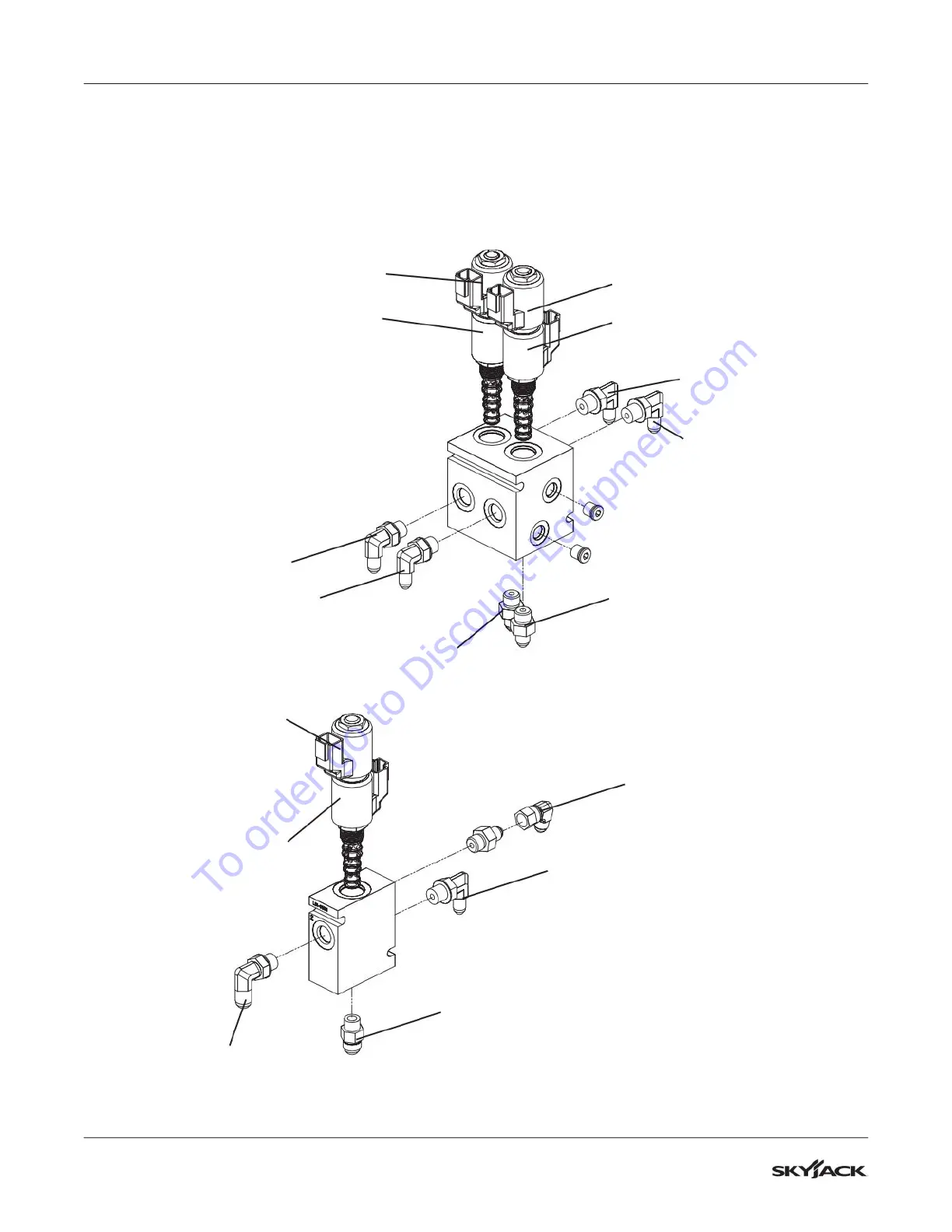

Section 3 – System Component Identification and Schematics Jib Valve Ports
2A
To Bulkhead #2
1A
To Bulkhead #2
4
To Bulkhead #1
2B
To Jib Cylinder
1B
To Jib Cylinder
3B
To Bulkhead #1
4H-37
Platform Right Rotate Valve
4H-34
Jib Down Valve
4H-36
Platform Left Rotate Valve
4H-35
Jib Up Valve
1
To Bulkhead #2
3
To Bulkhead #2
2
To Bulkhead #1
4
To Bulkhead #1
4H-37
Platform Right Rotate Valve
4H-36
Platform Left Rotate Valve
3.11 Jib Valve Ports
