227
229042ABASJ46 AJ+, SJ46 AJ, SJ51 AJ
Turret Section 5 – Procedures
Verify Tilt Circuit
Red LED
Green LED
Light Indicators
Operations of the Tilt Switch
The following describes the LED’s and what they
indicate.
Green LED
Illuminated whenever both tilt
axes are within the specified
degrees of the zero/ home
learned position.
Flashes when transitioning in
or out of tilt angle limits, but
built in time delay has not fully
occurred.
Red LED
Illuminated whenever tilt on
one or more axes is more than
the specified degrees out from
the zero/ home position.
Green & Red LED
On together, no blinking when
fault detected.

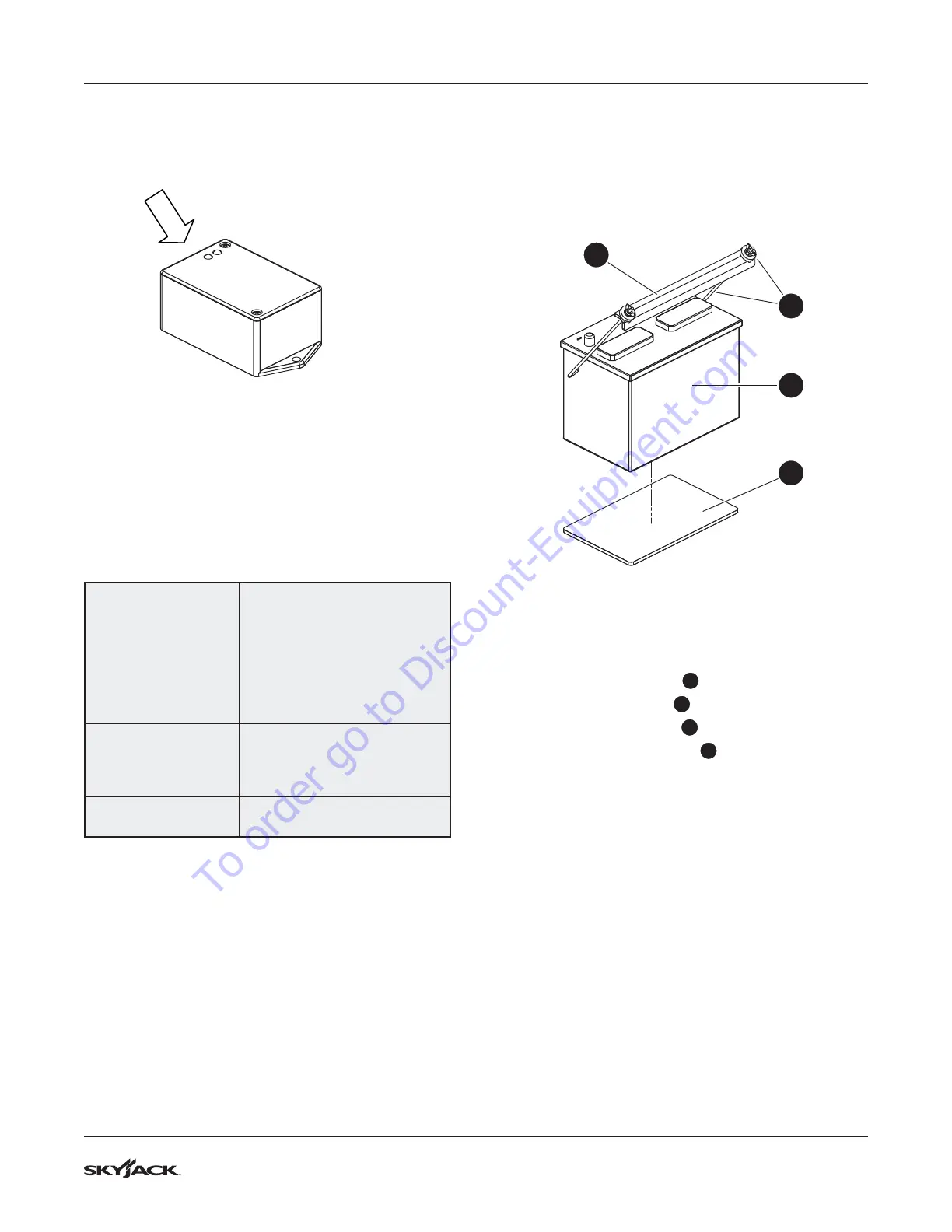

5.5-10 Battery Replacement
1. Turn the main power disconnect switch to the off
position.
3
4
1
2
2. Remove the positive and negative connectors
from the batteries.
3. Remove the battery retainer bracket nuts,
washers, and j-hooks
1
.
4. Remove the bracket
2
.
5. Remove the batteries
3
.
6. Replace the battery pad
4
if needed.
7. Replace the batteries and secure them with the
bracket, j-hooks, washers and nuts.
8. Clean the terminal posts and clamps of the
batteries, and apply acid-free and acid-resistant
grease.
9. Re-connect the batteries with the positive and
negative connector cables (ensure the clamps
make good contact).
