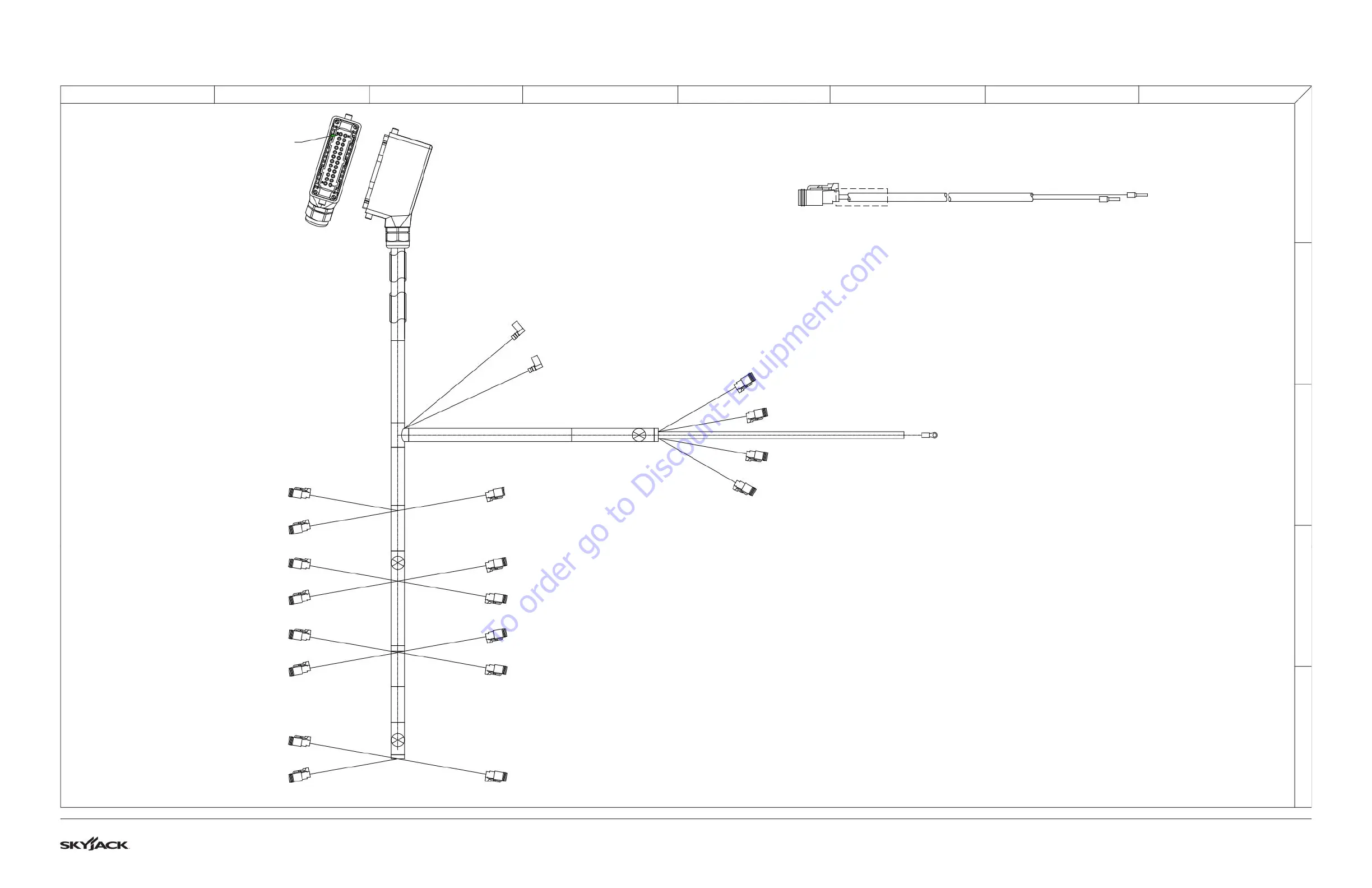

3.15 Main Harness and Fuel Level Switch Harness
M149012AA_S3
49A
02
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
TURRET ROTATE RIGHT
PIN 1 - 33 GREEN/WHITE
PIN 2 - 02 WHITE
BOOM UP
PIN 1 - 14 BLACK
PIN 2 - 02 WHITE
TELESCOPE OUT
PIN 1 - 38 ORANGE/RED
PIN 2 - 02 WHITE
TELESCOPE IN
PIN 1 - 39 BLACK/RED
PIN 2 - 02 WHITE
BOOM DOWN
PIN 1 - 13 ORANGE
PIN 2 - 02 WHITE
TURRET ROTATE LEFT
PIN 1 - 32 GREEN/BLACK
PIN 2 - 02 WHITE
STEER LEFT
PIN 1 - 24A BLUE/BLACK
PIN 2 - 02 WHITE
DUMP VALVE
PIN 1 - 21A WHITE/RED
PIN 2 - 02 WHITE (SPLICE #2)
STEER RIGHT
PIN 1 - 23A BLACK/WHITE
PIN 2 - 02 WHITE
108
EMERGENCY PUMP
108 - YELLOW/BROWN
14 GA.
PIN 1 - 13 - ORANGE
PIN 2 - 14 - BLACK
PIN 3 - 21A - WHITE/RED
PIN 4 - 23A - BLACK/WHITE
PIN 5 - 24A - BLUE/BLACK
PIN 6 - 26 - BLUE/YELLOW
PIN 7 - 30 - RED/GREEN
PIN 8 - 31 - RED/WHITE
PIN 9 - 32 - GREEN/BLACK
PIN 10 - 33 - GREEN/WHITE
PIN 11 - N/U
PIN 12 - 42 - PINK
PIN 13 - 38 - ORANGE/RED
PIN 14 - 39 - BLACK/RED
PIN 15 - 40 - BLUE/RED
PIN 16 - 41 - BLUE/PURPLE
PIN 17 - 45A - YELLOW/ORANGE
PIN 18 - 49A - GREEN/RED
PIN 19 - 65 - YELLOW/PINK
PIN 20 - 108 - YELLOW/BROWN [14 GA.]
PIN 21 - 165 - PINK/BLACK
PIN 22 - 02 - WHITE (SPLICE #1) [14 GA.]
PIN 23 - 02 - WHITE (SPLICE #2) [14 GA.]
PIN 24 - 02 - WHITE (SPLICE #3) [14 GA.]
BRAKE VALVE
PIN 1 - 26 BLUE/YELLOW
PIN 2 - 02 WHITE
MOTOR TORQUE
PIN 1 - 45A YELLOW/ORANGE
PIN 2 - 02 WHITE
PIN 24 THIS CORNER
AXLE LOCK VALVE
PIN 1 - 65 YELLOW/PINK
PIN 2 - 02 WHITE
FLOW ENABLE
PIN 1 - 42
PIN 2 - 02 WHITE
RISER DOWN
PIN 1 - 30 RED/GREEN
PIN 2 - 02 WHITE
RISER UP
PIN 1 - 31 RED/WHITE
PIN 2 - 02 WHITE
DIFFERENTIAL LOCK VALVE
PIN 1 - 165 PINK/BLACK
PIN 2 - 02 WHITE
HORN
49A - GREEN/RED
02 - WHITE (SPLICE #1)
PLATFORM LEVEL UP
PIN 1 - 41 BLUE/PURPLE
PIN 2 - 02 WHITE
PLATFORM LEVEL DOWN
PIN 1 - 40 BLUE/RED
PIN 2 - 02 WHITE
SOCKET 1 - BLACK
SOCKET 2 - WHITE
1
