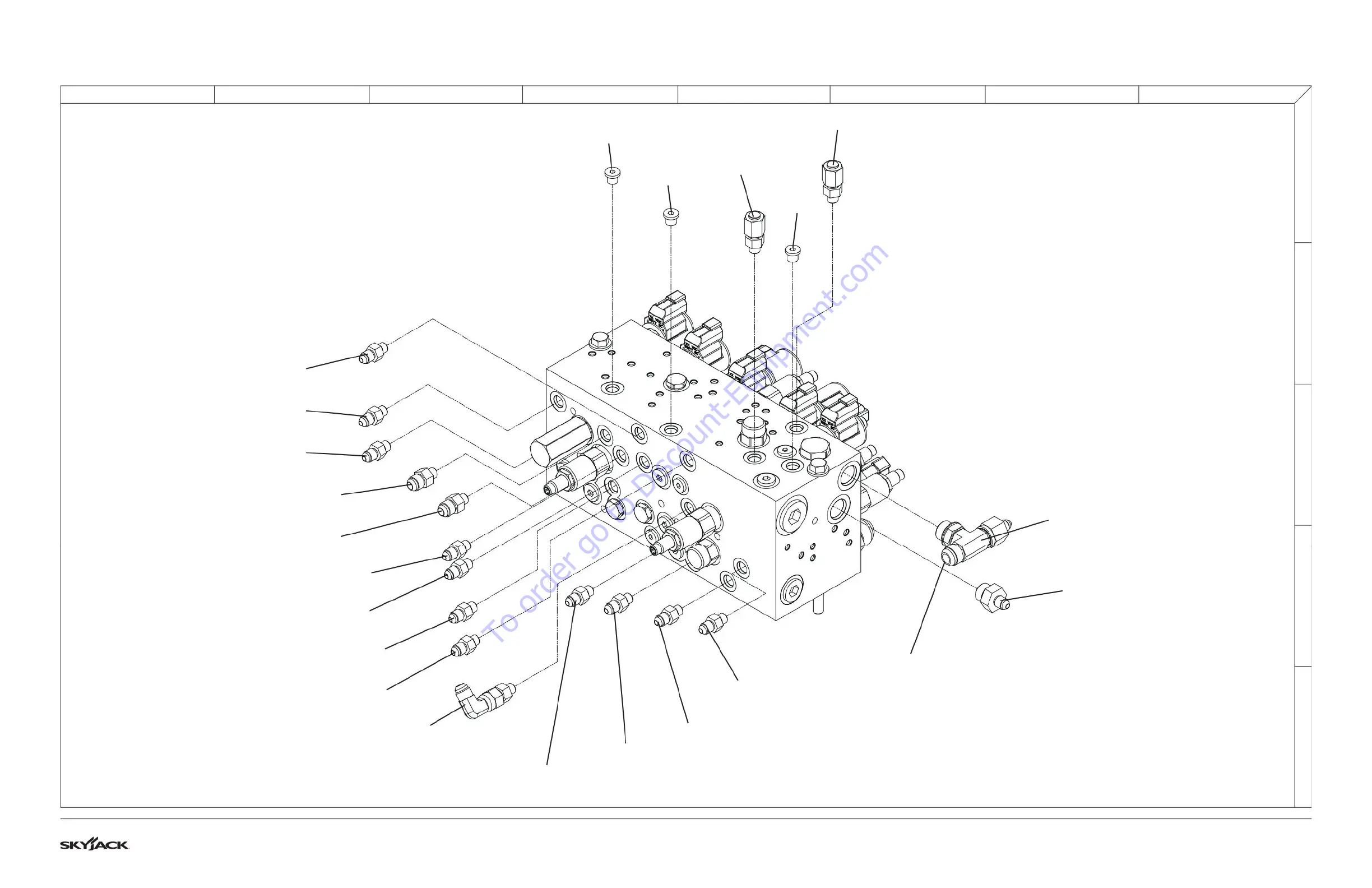

3.13 Main Manifold Ports
M167494AC-1
P2
To Lift Cylinder
S2
To Riser Cylinder
JBT
To Jib Valve
TEST 2
TEST 3
TEST 4
TEST 1
TEST 5
JBP
To Jib Valve
PL2
To Master Cylinder
RET
To Boom Extension Cylinder
PL1
To Master Cylinder
EXT
To Boom Extension Cylinder
P1
To Lift Cylinder
S1
To Riser Cylinder
SW1
To Swing Drive Motor
SW2
To Swing Drive Motor
ST1
To Rotary Manifold
ST2
To Rotary Manifold
T3
To Brake Manifold
AUX
To Emergency Power Unit
P
To Hi Pressure Filter
