Section 5 – Procedures Axles

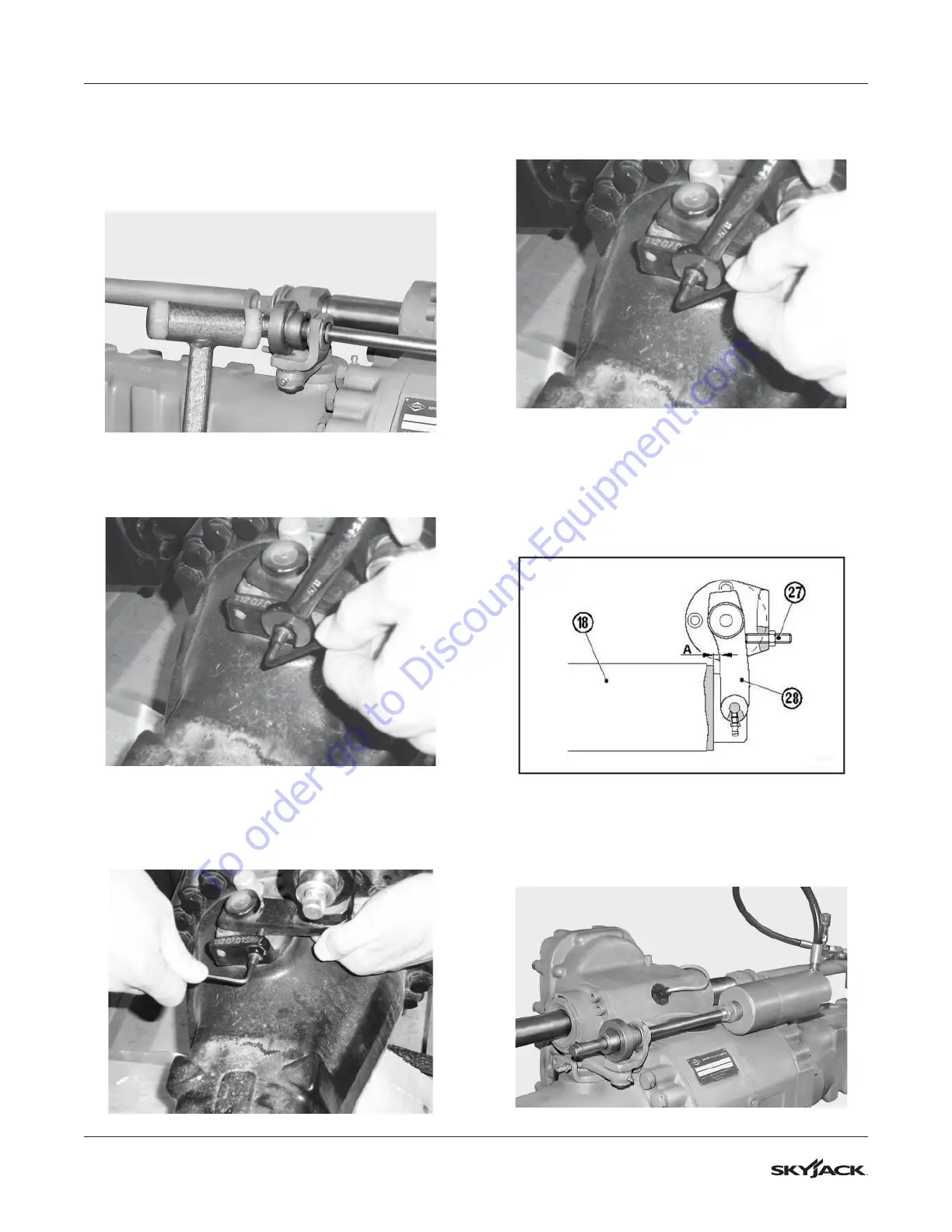

5.10-10 Pin Brake Adjustments
1. To manually release the brake give a light blow
to the external ring of the check unit.
2. To adjust the idle elimination loosen jam nut and
back out adjustment stem a few turns.
3. Apply a 2lb. force (1Kg) in the direction of brake
application and turn adjusting stem so that it
touches the stop.
4. Tighten the Jam nut. Repeat this procedure for
the other side.
5. On the Cylinder side ensure that there is some
clearance between the cylinder and the lever “A”
with the lever against the stop.
6. Introduce pressure into the cylinder and ensure
that the check unit engages.
