Section 3 – Familiarization Control Functions
15
Hydraulic Quick Attach Switch (If Equipped):
Opens and closes the hydraulic quick attach
function (see Section 5.12-3).
16
Park Brake Switch/Indicator: This switch
controls the spring applied, hydraulically
released parking brake. Apply the parking brake
by pressing the switch at the end marked
when the engine is running. When the brake is
on, the red warning light illuminates.
17
Front and Top Windshield Wiper/Washer
Switch (If Equipped) : This switch
activates the wiper and the washer for the front
and top windshields. Press top portion to activate
washer/wiper. Press bottom portion to activate
wiper.
18
Rear Windshield Wiper/Washer Switch
(If Equipped): This switch activates the wiper
and the washer for the rear windshield. Press top
portion to activate washer/wiper. Press bottom
portion to activate wiper.
19
Capacity Charts: This set of charts indicates
operating limits specific to the telehandler model
and attachments. Refer to Section 5.11.
20
Positive Air Shutoff Valve Test Switch (If
Equipped) : This switch is used for testing
the functionality of the positive air shut-off valve.
It allows the operator to shut off the air supply to
the engine if the engine continues running after
the main power is shut down. (Refer to Section
3.5-1). The indicator light Illuminates red for a few
seconds when testing the functionality of positive
air shut-off valve.
21
Road Lights Switch (If Equipped) : This
switch activates the front headlights and rear tail
lights.
22
Work Lights Switch (If Equipped) : This
switch activates the front and rear work lights
located on top of operator’s cab.
23
Boom Lights Switch (If Equipped) : The
boom light switch controls the light at the end of
the boom.
24
Steer Mode Switch: This switch has three
positions to allow selection of four-wheel steer,
front steer and crab steer.
25
Hydrostatic Pump Speed Control (If
Equipped): This knob controls the speed of the
hydrostatic pump.
P
FWD
REV
OFF
AUX
Flow
Direction
FWD
REV
2
3

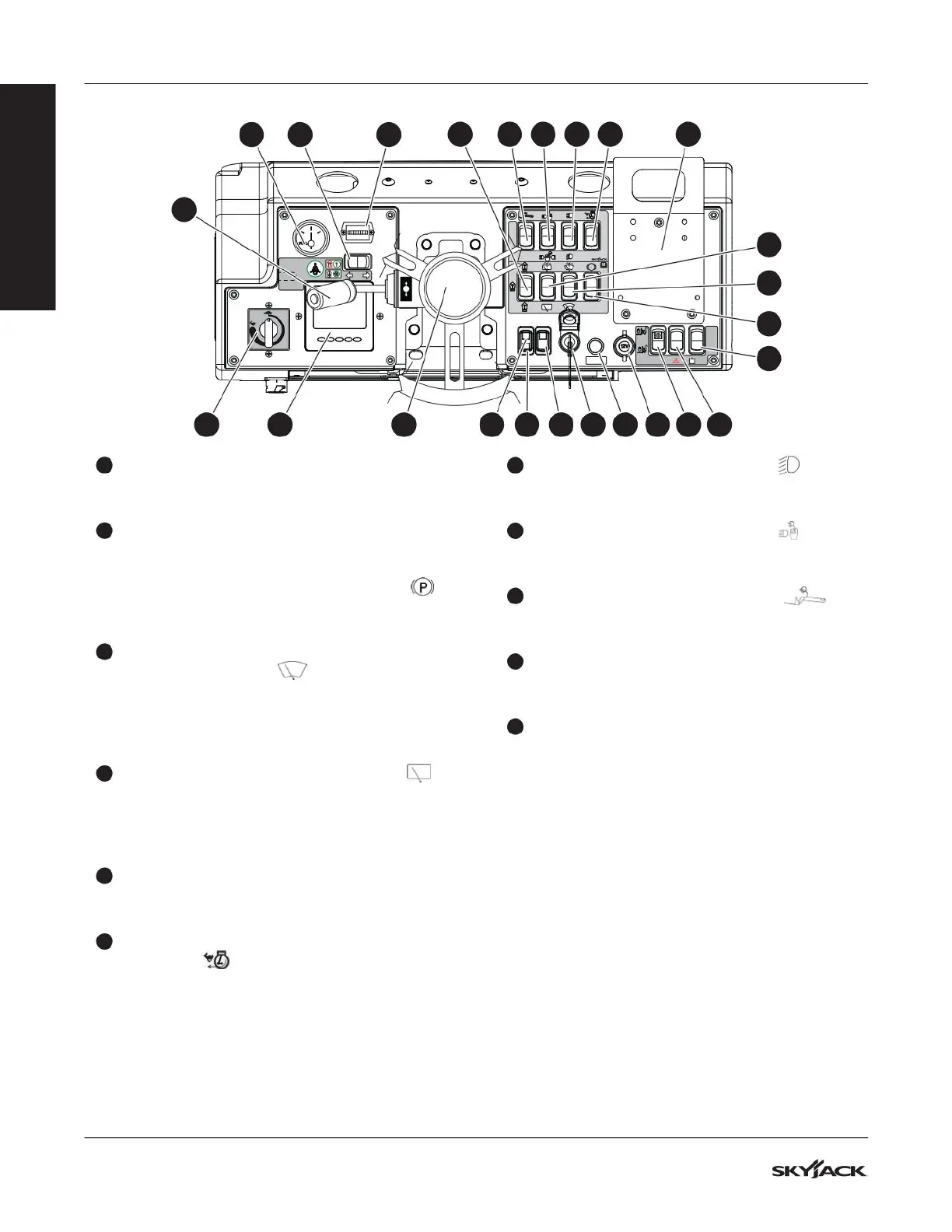

6 7 118 9 10 12 41513
192021222324
17
14
18
19
15
25
