Section 6 – Procedures Towing the Telehandler

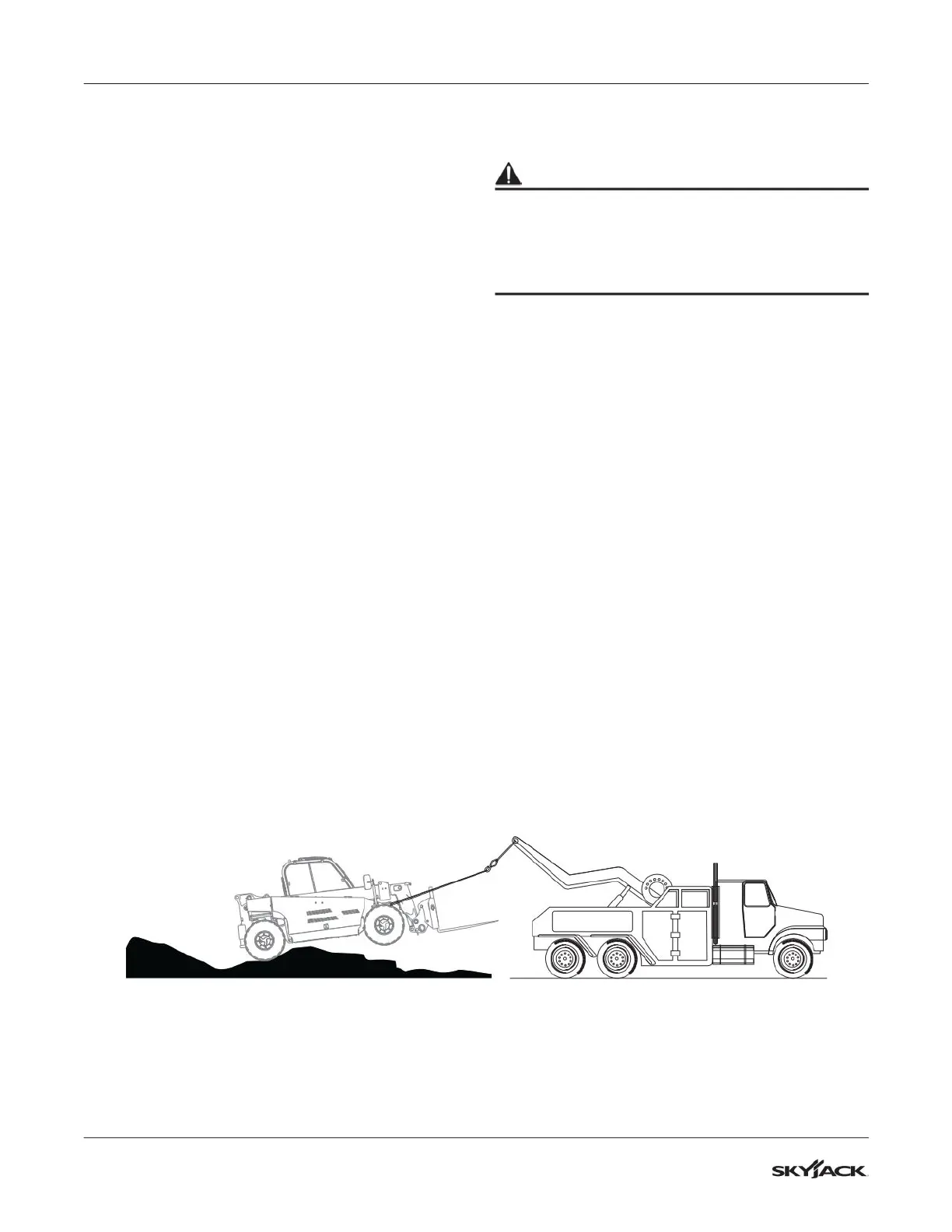

Figure 44 Towing the telehandler from front lifting points
6.4 Towing the Telehandler
IMPORTANT
▪
Use this procedure only to remove telehandler
from mud or other places where it cannot
move under its own power. When possible,
repair telehandler on site.
▪
Always chock wheels of the disabled
telehandler to prevent accidental movement
while preparing for towing. This is especially
important if the failure occurs on an incline.
▪
Before towing, ensure there are no
obstructions around or between telehandler
and towing vehicle.
▪
The spotter must maintain a safe distance and
must always be visible to the operator inside
telehandler’s cab.
▪
Ensure the towing vehicle, chains, tow bar,
etc., are suitable for the job. The telehandler
weight is stamped on the serial number
nameplate (see Section 1.5).
1. Lower or raise boom enough so that front lifting
points are fully accessible.
2. Carefully fasten tow chains to lifting points on
the front of the telehandler frame.
3. Disconnect the drive shaft from the rear and
front axles.
4. Remove chocks from wheels.
5. Start towing the telehandler.
6. Move telehandler to a compact level surface.
7. Install dirve shaft in both front and rear axles.
8. Apply parking brake.
9. Chock or block wheels to prevent telehandler
from rolling.
WARNING
Poor traction can cause telehandler or towing
vehicle to slide. Grades can require additional
distance to stop the telehandler. Be careful if
traction conditions are poor or the machine is on
an incline.
