Section 4 – Pre-operation Function Tests
4.3-10 Test Back-up Sensor with Display
Buzzer (If Equipped)
1. Ensure engine is running and key is in on
position .
2. Press the park brake switch to on position
and place direction control lever in reverse.
3. Press and hold service brakes pedal to prevent
the telehandler from moving.
4. Press the park brake switch to off position.
▪

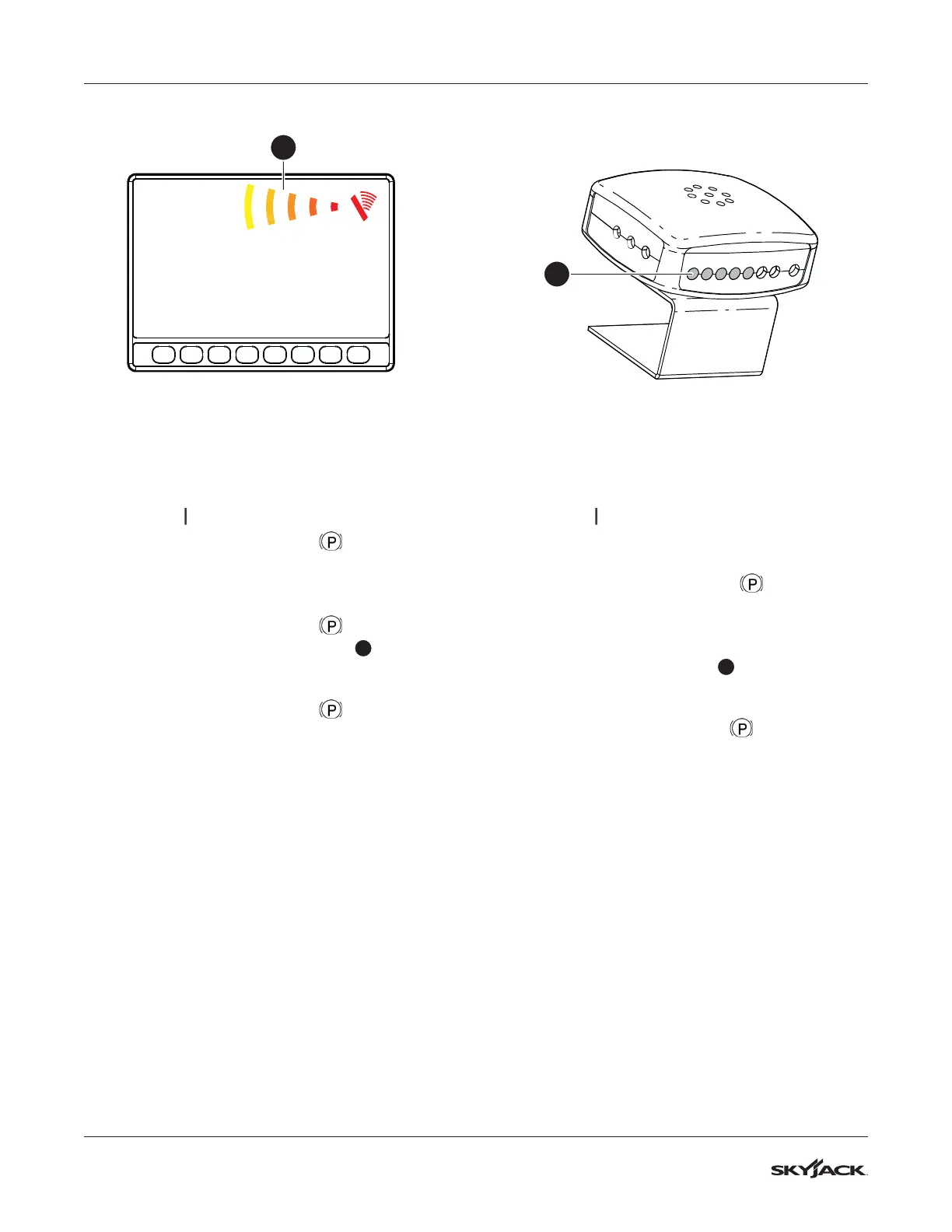

Result: Range indicator lights
1
on the
back-up sensor illuminate and beep if an
object is detected behind telehandler.
5. Press the park brake switch to on position.
4.3-11 Test Back-up Sensor/Camera with
Monitor (If Equipped)
1. Ensure engine is running and key is in on
position .
▪
Result: Monitor is active and displays area
behind telehandler.
2. Ensure the park brake switch is engaged
and transmission is in reverse.
3. Depress and hold service brake pedal. Release
parking brake.
▪
Result: Range symbols
2
should appear on
the monitor and beep if an object is detected
behind telehandler.
4. Press the park brake switch to on position.
1
2
