Section 6 – Procedures Lifting SJ519 TH
6.2 Lifting SJ519 TH
Four lifting points are located on the top of the frame:
two at the front and two at the rear.
Follow these guidelines to lift the machine:
1. Fully retract and lower boom.
2. Turn ignition switch to the off position.
Remove the key.
3. Block the rear axle by placing wood between the
frame and the axle.
WARNING
Only qualified rigger shall operate machinery
during lifting.
Use rigging with load capacity sufficient to
withstand telehandler weight. Refer to the serial
plate of the telehandler for specific weight.
4. Properly adjust rigging to ensure telehandler
remains level during lifting. See Center of gravity
location.

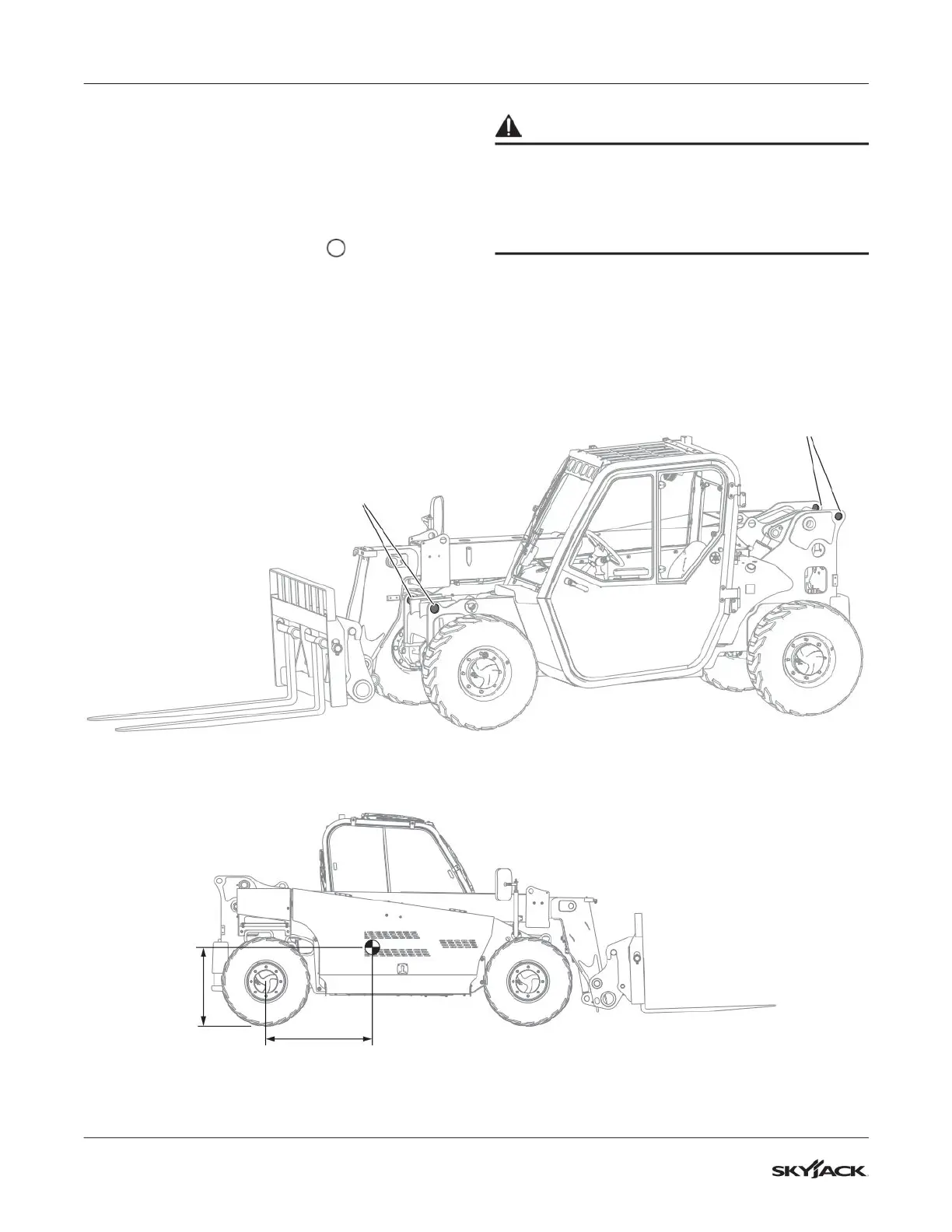

Figure 41 Lifting point locations
Figure 42 Center of gravity
Lifting points
Lifting points
50.5 in
26.5 in
