Section 4 – Pre-operation Function Tests
P
FWD
REV
OFF
AUX
Flow
Direction
FWD
REV

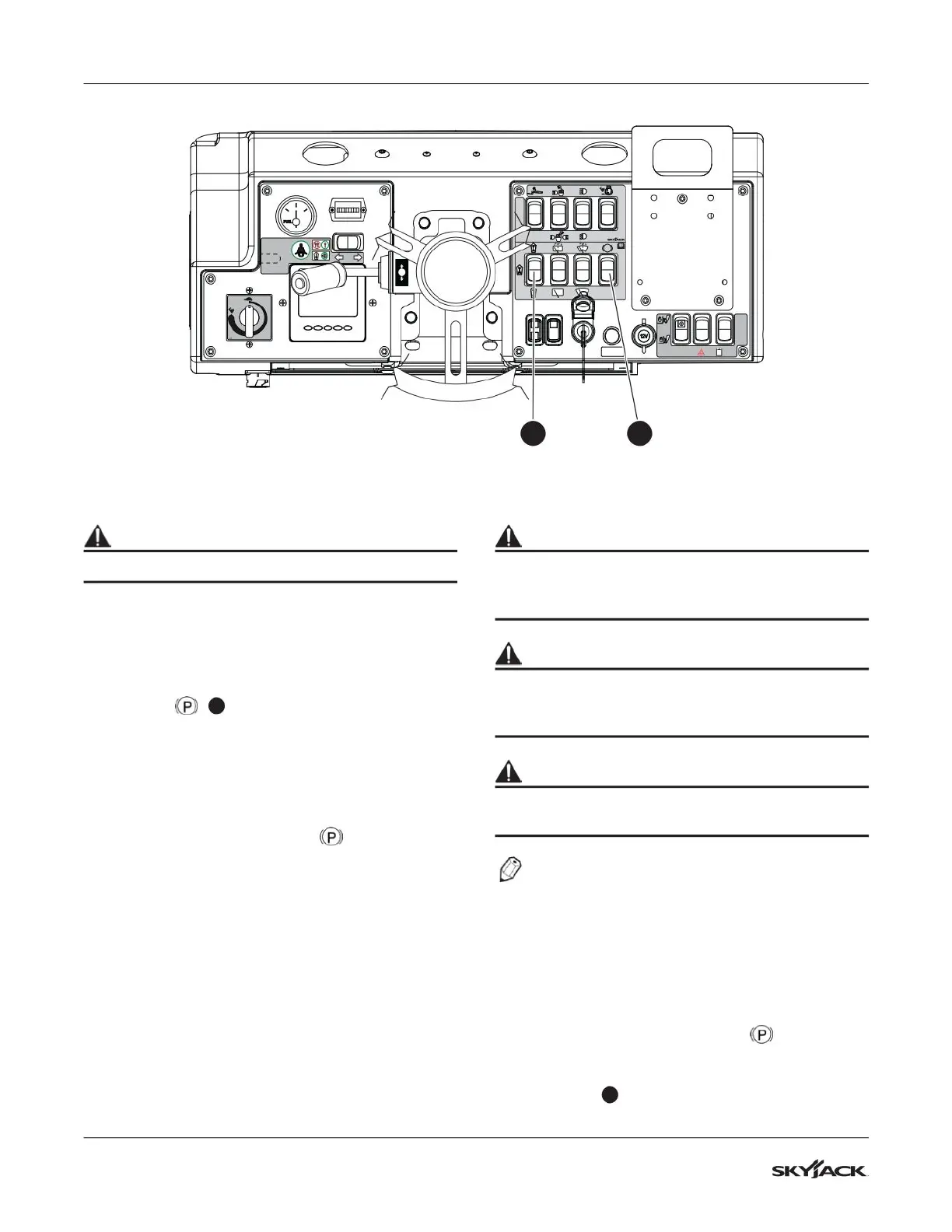

4.3-8 Test Parking Brake
WARNING
The seat belt must be worn at all times.
1. Ensure telehandler is on a firm, level surface.
2. Ensure the path of intended travel is clear
and area around telehandler is clear of any
personnel or obstructions.
3. Depress service brake, press the park brake
switch
1
to off position.
▪
Result: Parking brake indicator light should
turn off.
4. Move direction control lever to FWD and slowly
release service brake pedal.
▪
Result: Telehandler should roll forward.
5. Press the park brake switch to on position.
▪
Result: Parking brake should engage,
telehandler should stop immediately (less than
two seconds), and parking brake indicator
light should illuminate.
4.3-9 Test Steering
CAUTION
Before changing steering modes, bring all four
wheels into alignment (i.e., in the straight-ahead
position).
WARNING
Before driving on public roads and highways
check the alignment of the wheels and drive with
FRONT steering only.
WARNING
Do not change steer mode while telehandler is
traveling.
NOTE
Avoid steering the wheels while telehandler is
stationary.
1. Four-wheel Steering (Figure 16)
1. Ensure path of intended motion is clear.
2. Ensure all four wheels are aligned straight
ahead.
3. Press the park brake switch to off
position and depress service brake pedal.
4. Press the upper portion of the steer mode
switch
2
for four-wheel steering.
12
