Skyjack SJ519 TH - Attachment Installation and Adjustment

216939ADA SJ519 TH
64
Section 5 – Operation Attachment Installation and Adjustment
5.12 Attachment Installation
and Adjustment
Several attachments aside from the common
carriage/fork combination are available for use with
the telehandler. Installation and operation of other
approved attachments are covered in this section.
5.12-1 Installing Attachments Using the
Quick Attach Feature
1. Ensure the attachment is positioned on level
ground.
WARNING
Always ensure transmission is in neutral and the
park brake switch is engaged before leaving
the cab to prevent the telehandler from rolling.
Failure to do so may result in death or serious
injury to operators and bystanders.
2. Remove the lynch pins from the quick attach
pins on both sides of the apron. Allow the quick
attach and lynch pins to hang freely from their
tethers.
3. Approach the attachment perpendicularly.
Position the upper apron bar below the coupling
points on the frame of the attachment.
4. Raise and tilt the apron backwards to engage
the attachment. Lift the attachment clear of the
ground. Ensure the quick attach pin holes are
aligned.
5. Insert the quick attach pins so the lynch pins
are oriented on the outside of the apron. Secure
quick attach pins with lynch pins.
6. If necessary, connect auxiliary hydraulic hoses to
the attachment.
WARNING
Visually check that the attachment is correctly
coupled and secured to the boom before operating
the telehandler.
5.12-2 Removing Attachments Using the
Quick Attach Feature
1. Position the boom with the attachment just
above ground level.
WARNING
Always ensure transmission is in neutral and the
park brake switch is engaged before leaving
the cab to prevent the telehandler from rolling.
Failure to do so may result in death or serious
injury to operators and bystanders.
2. Disconnect any auxiliary hydraulic hoses.
3. Remove the lynch pins then the quick attach
pins securing the attachment to the apron. Allow
pins to hang from their tethers.
4. Lower and tilt the attachment forward until the
attachment is resting on the ground.
5. Retract the boom to clear the upper apron bar
from the frame of the attachment.
6. Replace quick attach pins with lynch pins
oriented on the outside of the apron. Ensure
lynch pins are in place and quick connect pins
secured.

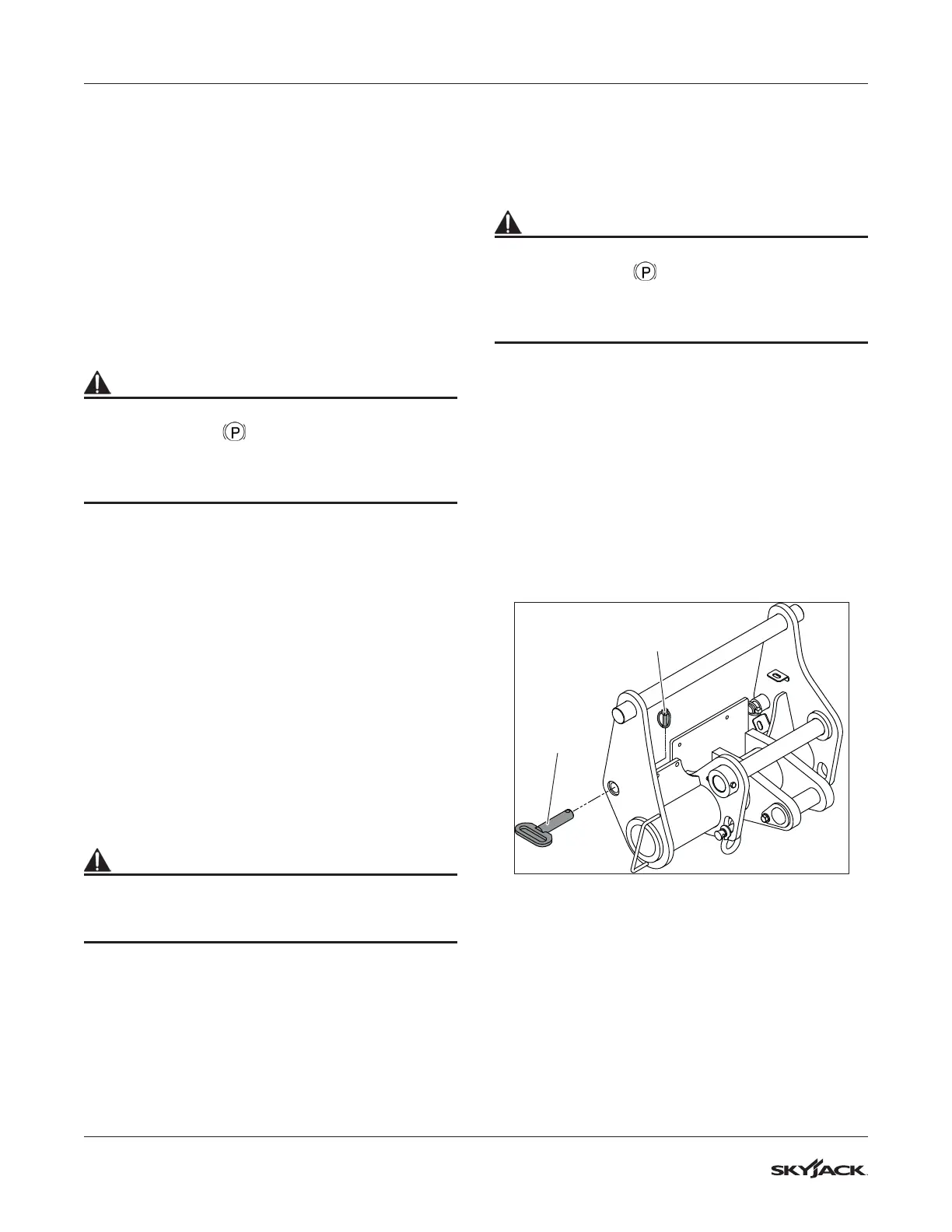

Quick Attach
Pin
Lynch Pin
Figure 36 Quick Attach Feature
