Section 3 – Familiarization Optional Equipment
3.4-5 Frame Level
The frame level indicator, mounted above the
windshield in the operator’s cab, displays the current
frame level measurement.

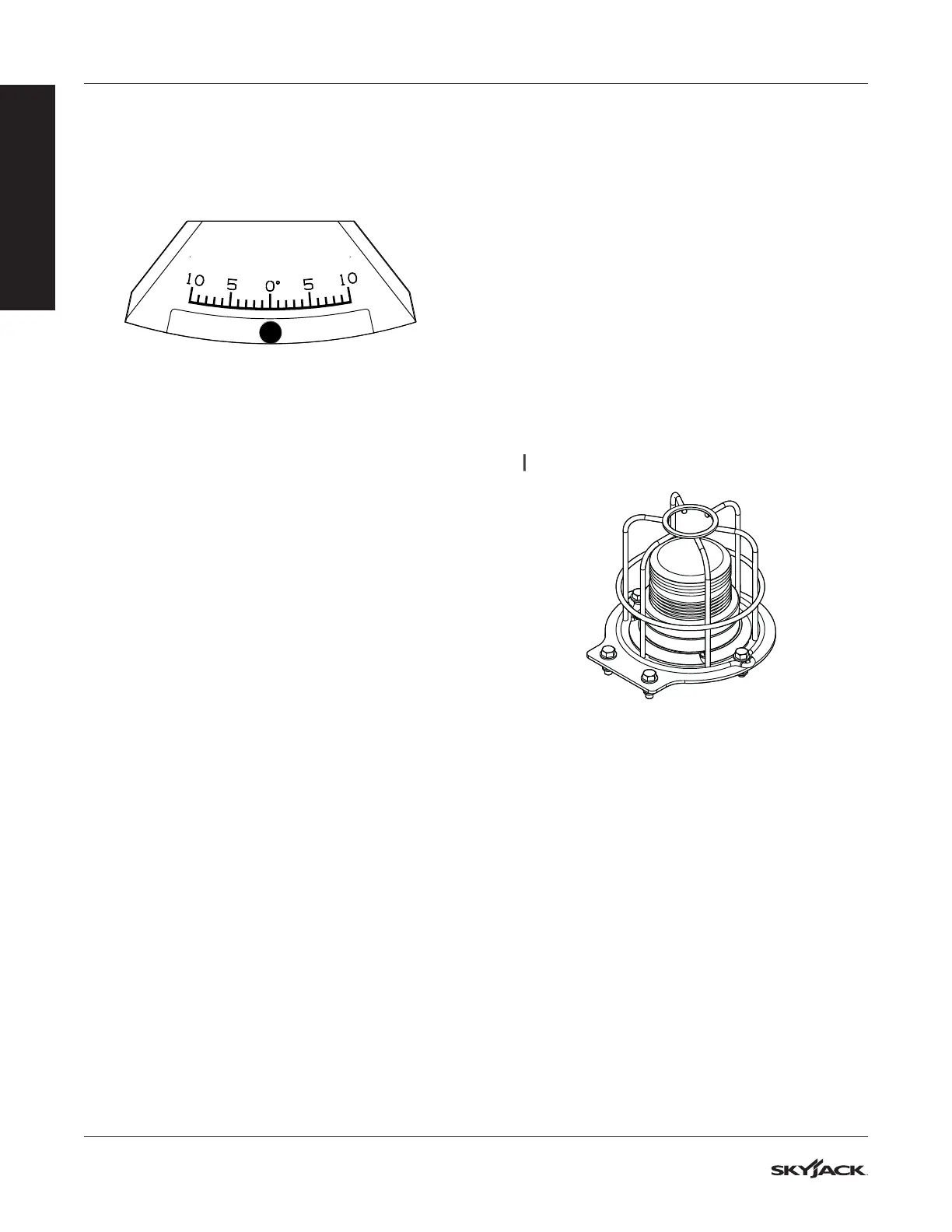

Figure 05 Frame Level Indicator
3.5 Optional Equipment
The following descriptions are for identification,
explanation and locating purposes only.
3.5-1 Positive Air Shutoff Switch (If
Equipped)
This system provides emergency over-speed
shutdown protection for the engine. The engine will
shut down and a red indicator light on the dash will
illuminate for a few seconds.
When red indicator light is illuminated, telehandler will
have no power and engine will not turn on.
3.5-2 Flashing Beacon (If Equipped)
The flashing beacon is located on top of the
operator’s cab. This light is operational when key is in
on position.
Figure 06 Flashing Beacon
3.5-3 Road Lights, Boom Lights & Work
Lights (If Equipped)
The boom lights are mounted at the front of the main
boom section.
The work lights are mounted on the frame as well as
on top of the operator’s cab.
The road lights (front headlights and taillights) have 2
settings; high beam and low beam headlights.
3.5-4 Fire Extinguisher (If Equipped)
The fire extinguisher is mounted to the frame at the
rear left side of the telehander, beside the engine air
intake access door.
FAMILIARIZATION
