Optional Attachments Section 3 – Familiarization
3.6-3 Block Forks

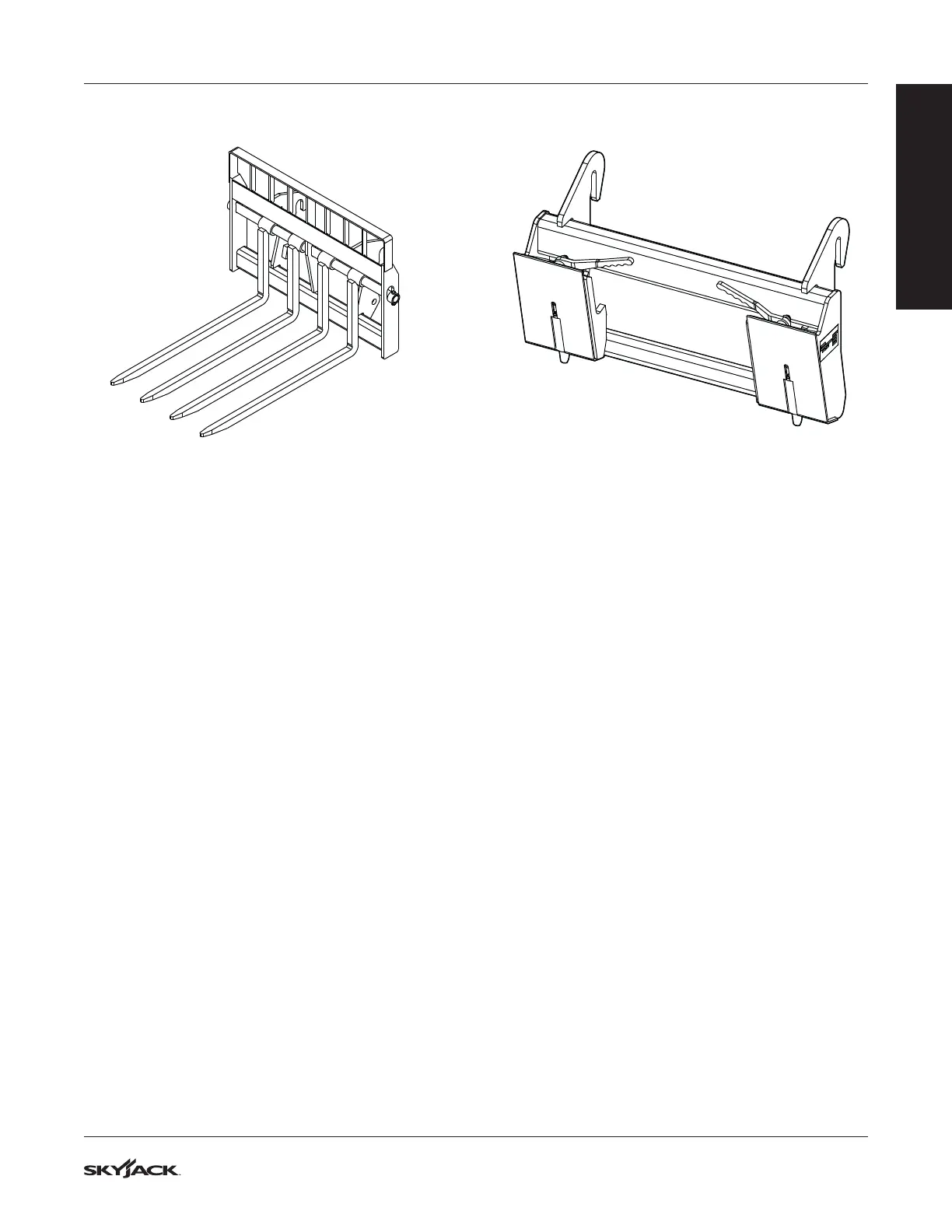

Figure 12 Block Forks
The block forks are used primarily to load/unload and
place cubes of concrete or cement blocks. Block forks
are designed to be accepted on all carriages provided
they are equidistant.
Installation Procedure
1. Refer to Section 5.12-6 to change the forks.
IMPORTANT
Make sure the forks are equally spaced.
Operation
1. Using optional attachment controller, make sure
the carriage attachment and forks are positioned
perpendicular to the load, and that the load is
centered with the carriage.
2. Handle the load the same as a regular fork
attachment, making sure all the forks are in
contact with the load at all times (refer to Section
5.7 and Section 5.8).
3.6-4 Skid Steer Adapter
Figure 13 Skid Steer Adapter
This adapter is placed over the quick attach
and allows the use of a range of skid steer style
attachments.
Installation Procedure
1. Refer to Section 5.12 for details on installing
attachments.
