SJ519 TH 216939ADA
65
Attachment Installation and Adjustment Section 5 – Operation
5.12-3 Installing Attachments Using the
Hydraulic Quick Attach Feature (If
Equipped)
NOTE
If necessary, connect auxiliary hydraulic hoses of
the attachment.
1. Ensure the attachment is positioned on level
ground.
2. Ensure hydraulic quick attach switch and
the quick attach pins on the apron are in the
retracted position.
3. Approach the attachment perpendicularly.
Position the upper apron bar below the coupling
points on the frame of the attachment.
4. Raise and tilt the apron backwards to engage
the attachment. Lift the attachment clear of the
ground. Ensure the quick attach pin holes are
aligned.
5. Using the hydraulic quick attach switch, deploy
the quick attach pins. The pins extend and
secure the attachment to the apron.
WARNING
Always ensure transmission is in neutral and the
park brake switch is engaged before leaving
the cab to prevent the telehandler from rolling.
Failure to do so may result in death or serious
injury to operators and bystandards.
WARNING
Visually check that the attachment is correctly
coupled and secured to the boom before operating
the telehandler.
5.12-4 Removing Attachments Using the
Hydraulic Quick Attach Feature (If
Equipped)
1. Position the boom with the attachment just
above ground level.
WARNING
Always ensure transmission is in neutral and the
park brake switch is engaged before leaving
the cab to prevent the telehandler from rolling.
Failure to do so may result in death or serious
injury to operators and bystanders.
2. Disconnect any auxiliary hydraulic hoses.
3. Using the hydraulic quick attach switch, retract
the quick attach pins.
4. Lower and tilt the attachment forward until the
attachment is resting on the ground.
5. Retract the boom to clear the upper apron bar
from the frame of the attachment.

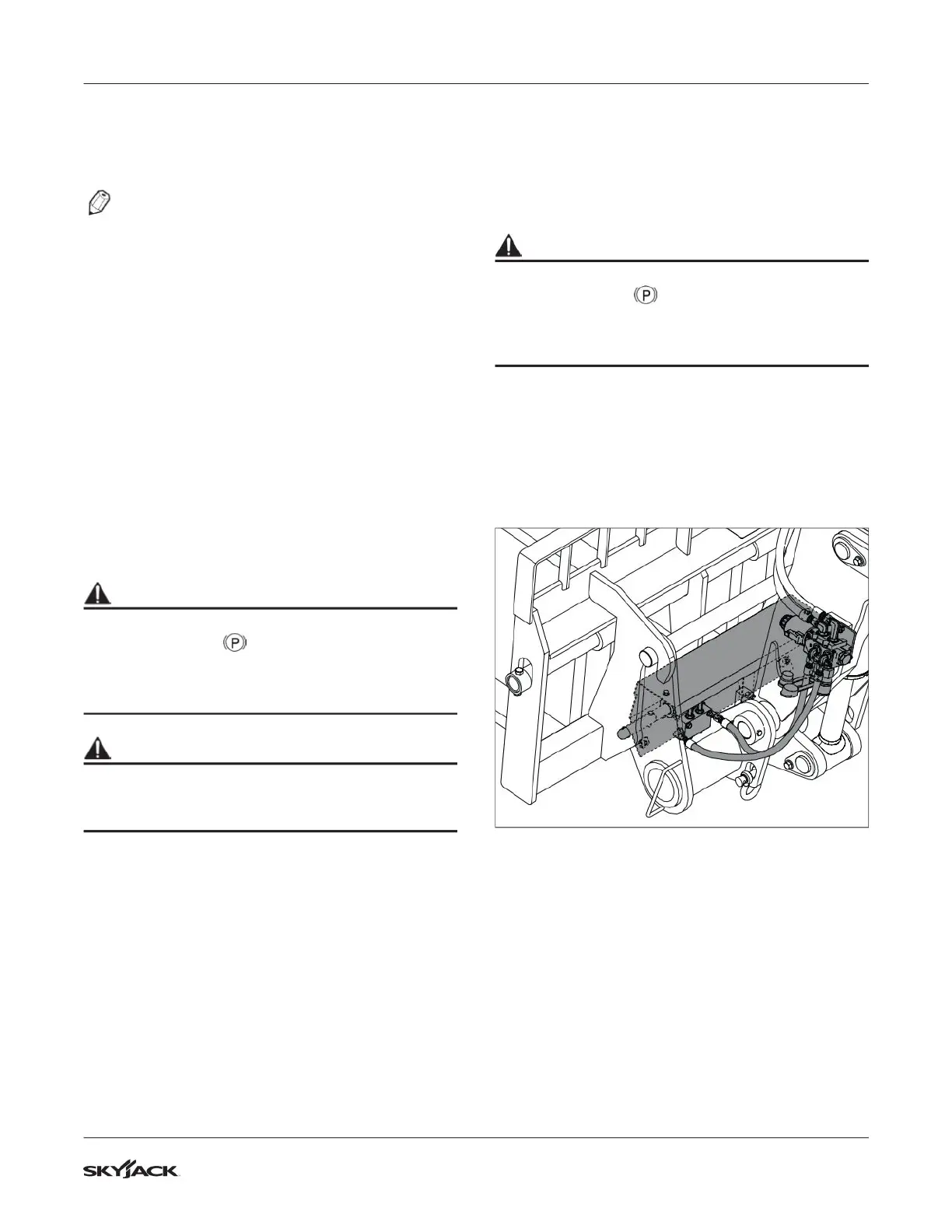

Figure 37 Hydraulic Quick Attach Feature
