Section 4 – Pre-operation Function Tests
P
FWD
REV
OFF
AUX
Flow
Direction
FWD
REV
4.3 Function Tests
Function tests are designed to discover any
malfunctions before telehandler is put into service.
The operator must understand and follow step-by-
step instructions to test all telehandler functions.
Prior to performing function tests, be sure to read and
understand Section 5 – Operation.
IMPORTANT
Never use a malfunctioning telehandler. If
malfunctions are discovered, telehandler must
be tagged and placed out of service. Repairs
to telehandler may only be made by a qualified
service technician. After repairs are completed,
the operator must perform visual and daily
maintenance inspections & function tests again.
WARNING
Ensure that there are no personnel or obstructions
in test area and that there is sufficient room to test
all telehandler functions.

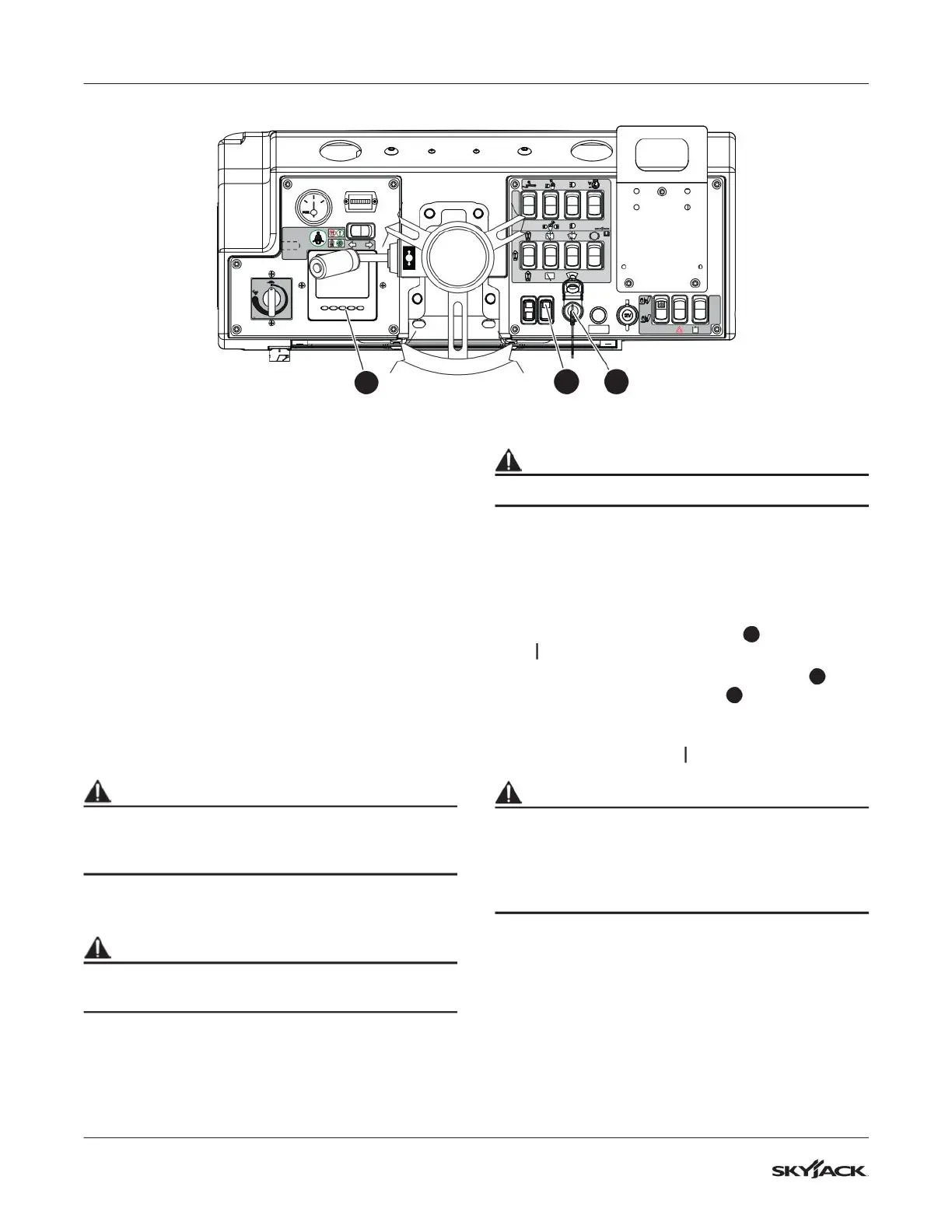

4.3-1 Test Starter Operation
WARNING
Ensure that you maintain three points of contact to
mount/dismount the cab.
1. Enter cab and close door (if equipped).
WARNING
The seat belt must be worn at all times.
2. Sit in the driver’s seat and fasten seat belt.
3. Using a spotter, adjust the mirrors.
4. Ensure parking brake is engaged and shift lever
is in neutral. Ensure all controls/switches are in
neutral position.
5. Insert key into ignition switch
1
and select on
position.
▪
Result: Engine data display module
2
and
glow plug indicator light
3
should turn on.
6. Wait until glow plug indicator light turns off then
turn the key to start position until engine starts
then return key to on position.
WARNING
DO NOT over crank the starter. Do not crank for
more than 15 seconds. Wait for 15 minutes before
attempting to start engine again. If engine fails
to start after multiple attempts, contact qualified/
competent repair personnel.
IMPORTANT
If the DEUTZ Engine Display Module displays
an error message when engine is running,
immediately shut down the telehandler and have it
serviced.
