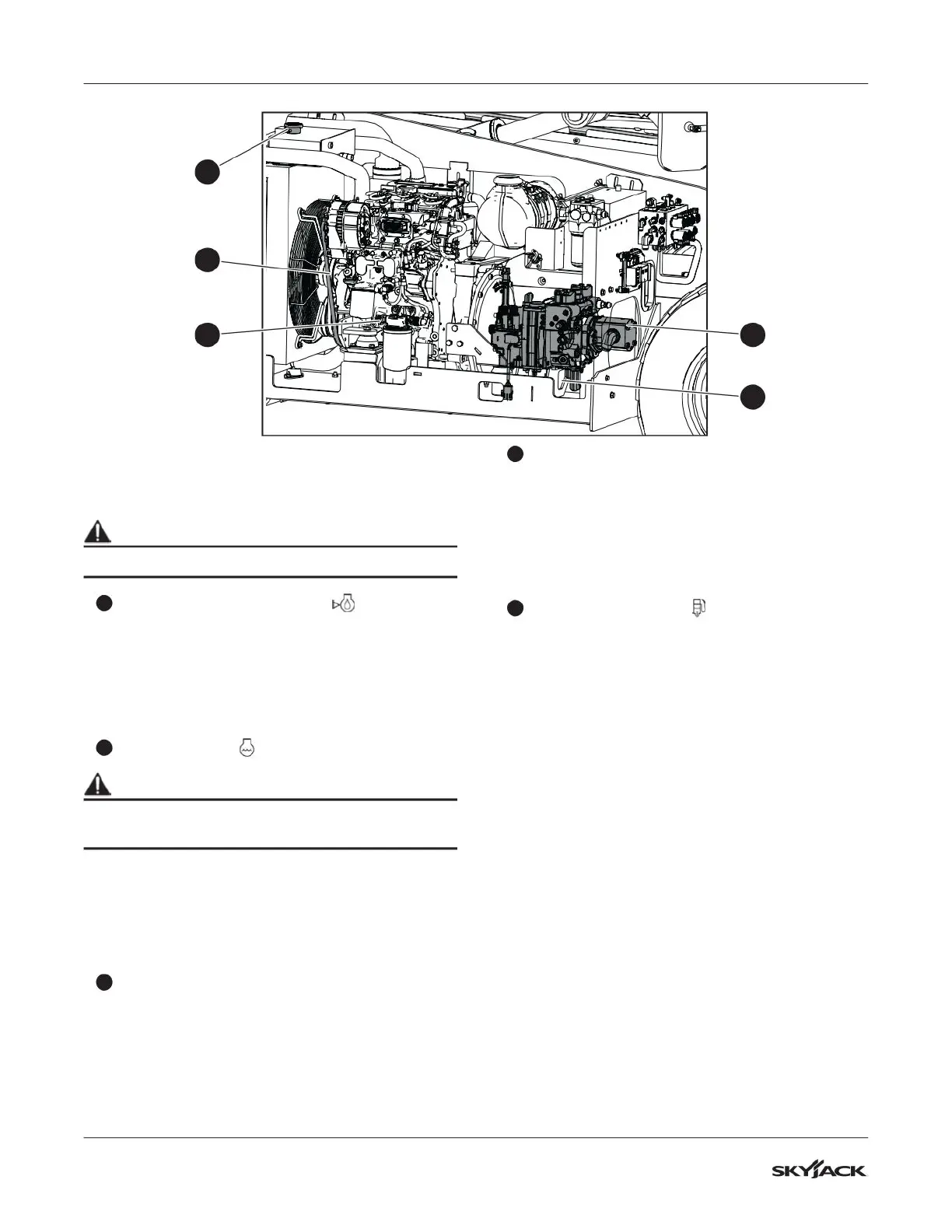

Section 4 – Pre-operation Visual & Daily Maintenance Inspections
4.2-7 Engine Compartment
▪
Ensure compartment cover is secure and in
proper working order.
WARNING
Beware of hot engine components.
1
Engine Oil Level on Dipstick
Maintaining the engine components is essential
to good performance and service life of the
telehandler.
▪
Oil level should be between the L (low) and
H (high) marks. Add oil as needed. Refer to
Section 7.4 for recommended oil type.
2
Engine Coolant
WARNING
Pressurized fluid present in radiator. Never open
radiator cap when hot.
▪
Check coolant level on radiator.
▪
Add coolant as required.
▪
Be sure to follow all local, provincial/territorial/
state and national regulations related to
disposing of fluids and soiled rags, cloths, etc.
3
Belts
▪
Ensure belts are in good working condition
and have correct tension. Replace if belts are
cracked, frayed, or have chunks of material
missing. Refer to service manual for proper
replacement procedure.
4
Hydraulic Oil Pump
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure all bolts are properly tightened.
▪
Ensure all fittings and hoses are properly
tightened and there is no evidence of hydraulic
oil leakage.
5
Fuel/Water Separator
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure all fittings and hoses are properly
tightened and there is no evidence of fuel
leaks.
▪
Drain water by opening water drain plug at
bottom of filter. Close tightly after inspection.
3
2
1 4
5
(on Engine Tray)
To Next Page
