Section 3 – Familiarization Optional Attachments
3.6 Optional Attachments
The Skyjack TH series telehandler is designed to
accept a variety of optional Quick Attach attachments
aside from regular fork carriage attachment.
3.6-1 Side Tilt Carriage

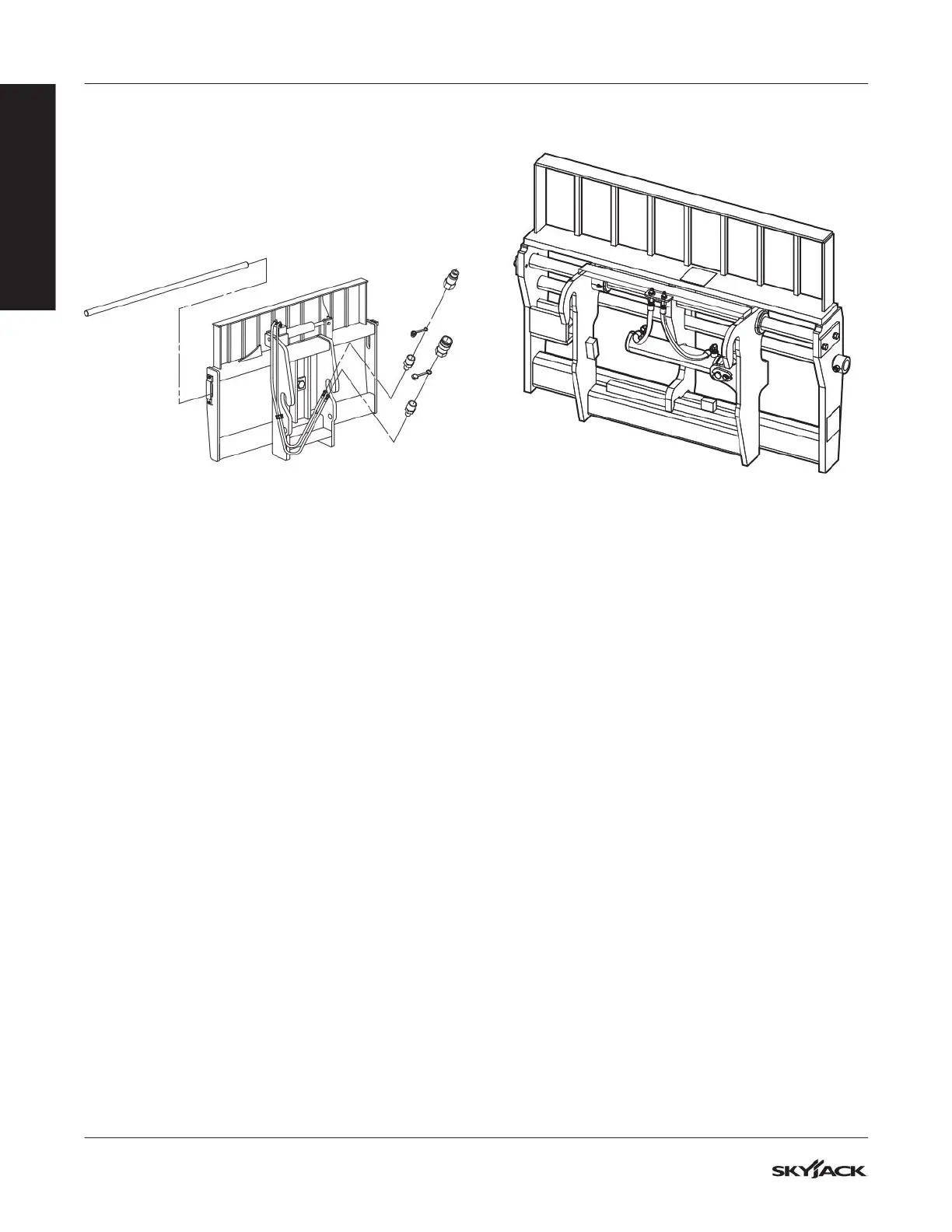

Figure 10 Side Tilt Carriage
The side tilt carriage allows carriage to tilt to either
side.
Installation Procedure
1. Remove fork attachment or other attachment
from boom and connect side tilt carriage
attachment (refer to Section 5.12-1 and Section
5.12-2).
Operation
1. Make sure the side tilt carriage attachment is
positioned perpendicular to the load, and that
the load is centered with the carriage.
2. To tilt the carriage left, hold the left auxiliary
function button down. To tilt the carriage right,
hold right auxiliary function button down.
3. Handle the load in the same way as a regular
fork carriage attachment (refer to Section 5.7
and Section 5.8).
3.6-2 Side Shift Carriage
Figure 11 Side Shift Carriage
This attachment enables the entire carriage to be
hydraulically shifted from side to side.
Installation Procedure
1. Remove fork attachment or other attachment
from boom and connect side shift carriage
attachment (refer to Section 5.12-1 and Section
5.12-2).
2. Connect auxiliary hydraulic hoses to the side
shift cylinder.
Operation
1. Make sure the side tilt carriage attachment is
positioned perpendicular to the load.
2. To shift the carriage left, hold left auxiliary
function button down. To shift the carriage right,
hold right auxiliary function button down.
3. Before traveling, center the attachment to the
sub-carriage and make sure the load is centered
with the carriage. Handle the load in the same
way as a regular fork carriage attachment (refer
to Section 5.7 and Section 5.8).
