Function Tests Section 4 – Pre-operation

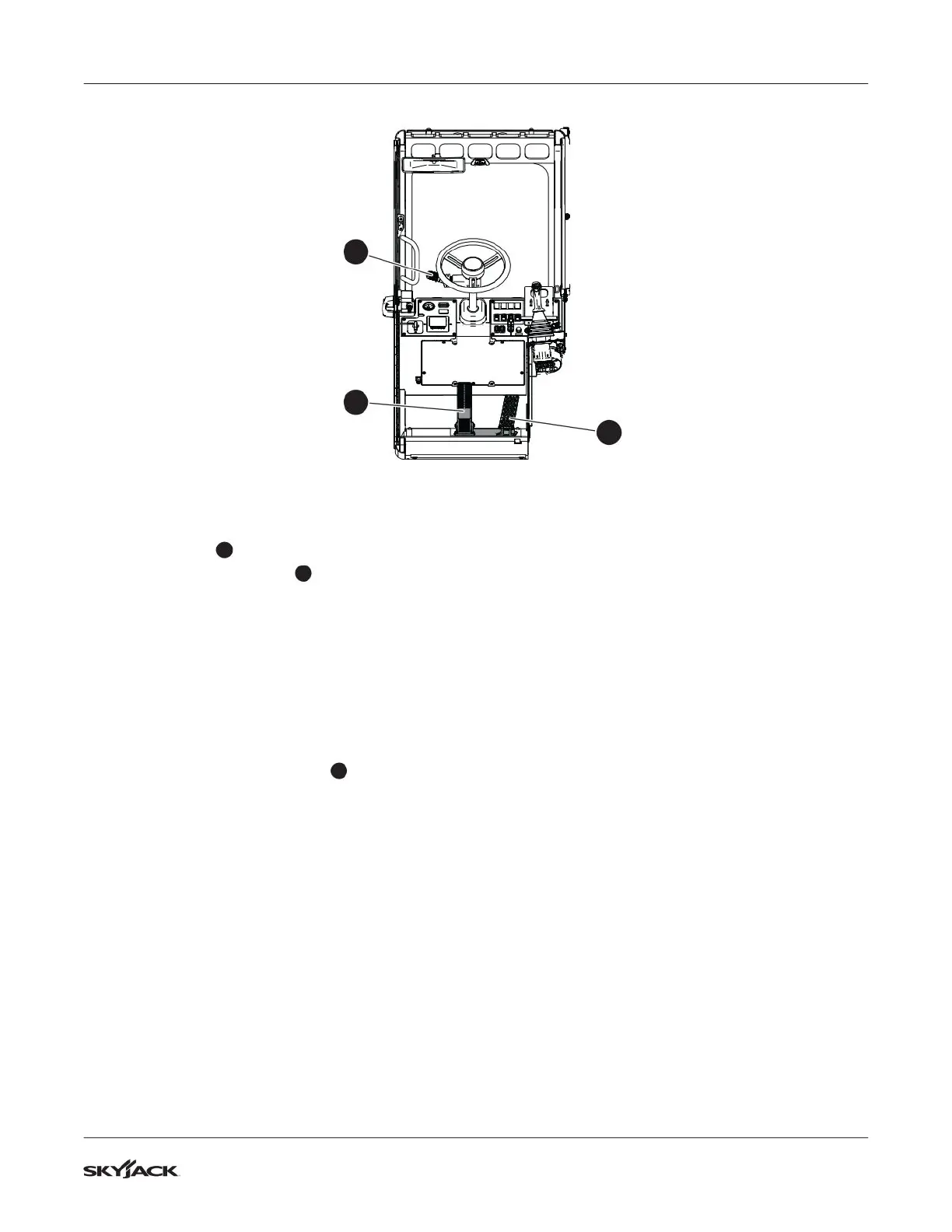

4.3-6 Test Accelerator Pedal
1. Ensure parking brake is engaged and direction
control lever
1
is in neutral.
2. Press accelerator pedal
2
slowly.
▪
Result: The engine RPM should increase.
3. Release the accelerator pedal.
▪
Result: The engine RPM should decrease.
4.3-7 Test Reverse Alarm, Driving &
Service Brake
1. Ensure park brake is engaged and transmission
is in neutral.
2. Depress service brake pedal
3
and ensure
path of intended motion is clear.
3. Release parking brake.
▪
Result: Parking brake indicator light should
turn off.
4. Move direction control lever to REV reverse
position and release the service brake pedal
slowly.
▪
Result: Telehandler should move backward
and reverse alarm should sound.
5. Depress service brake pedal slowly.
▪
Result: Telehandler should stop.
6. Move direction control lever to FWD and slowly
release service brake pedal.
▪
Result: Telehandler should slowly move
forward.
7. Depress service brake pedal slowly.
▪
Result: Telehandler should stop.
8. Return direction control lever to neutral position
and engage parking brake.
