Optional Equipment Section 3 – Familiarization
3.5-5 Back-up Sensor with Display
Buzzer (If Equipped)
The back-up display buzzer is mounted to the dash
inside the cab and warns the operator of objects
behind the telehandler. When an object is detected,
the buzzer beeps continuously and the range
indicator lights
1
illuminate. As objects become
closer, beeping increases in frequency and more
range indicator lights illuminate.
1

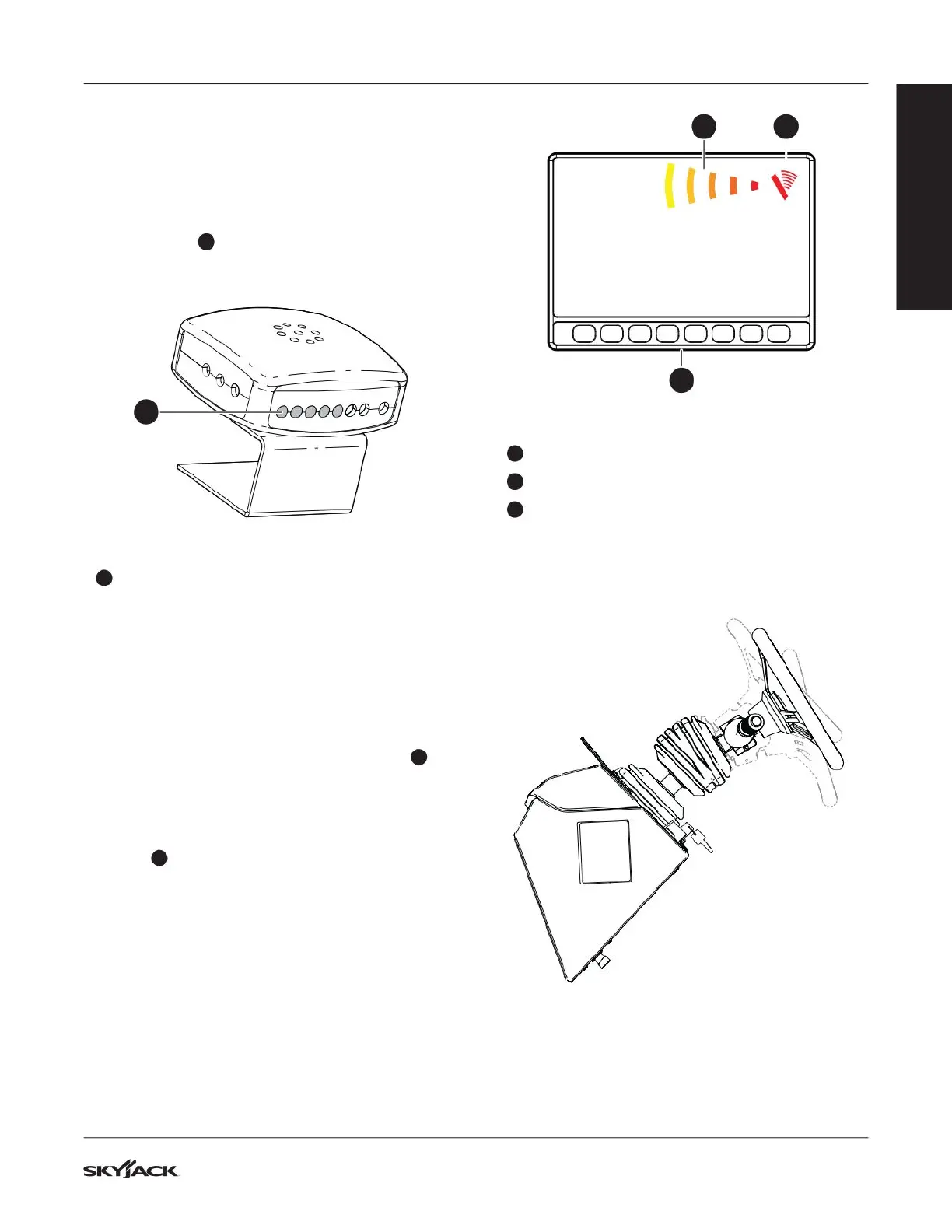

Figure 07 Back-up Display Buzzer
1
Range Indicator Lights: These lights illuminate
from left to right to indicate a relative distance to
the closest detected object.
3.5-6 Back-up Sensor/Camera with
Monitor (If Equipped)
The back-up monitor is mounted on the dash inside
the cab and operational when the key switch is in on
position. When active, the monitor displays the area
behind the telehandler. A green status symbol
3
indicates the sensor and camera are connected and
no objects are detected.
When in reverse and objects are detected, the monitor
beeps, the status symbol turns red, and range
symbols
2
indicate distance to the objects. As
objects become closer the range symbols increase
in number and change to red. Five symbols indicate
immediate proximity.
3
1
2
Figure 08 Back-up Monitor and Symbols
1
Back-up Monitor
2
Range Indicator symbols
3
Sensor/Camera status symbol
3.5-7 Tilt Steering Option (If Equipped)
The tilt steering option allows the angle of the steering
wheel to be adjusted (refer to Section 5.7-1).
Figure 09 Tilt Steering Option
