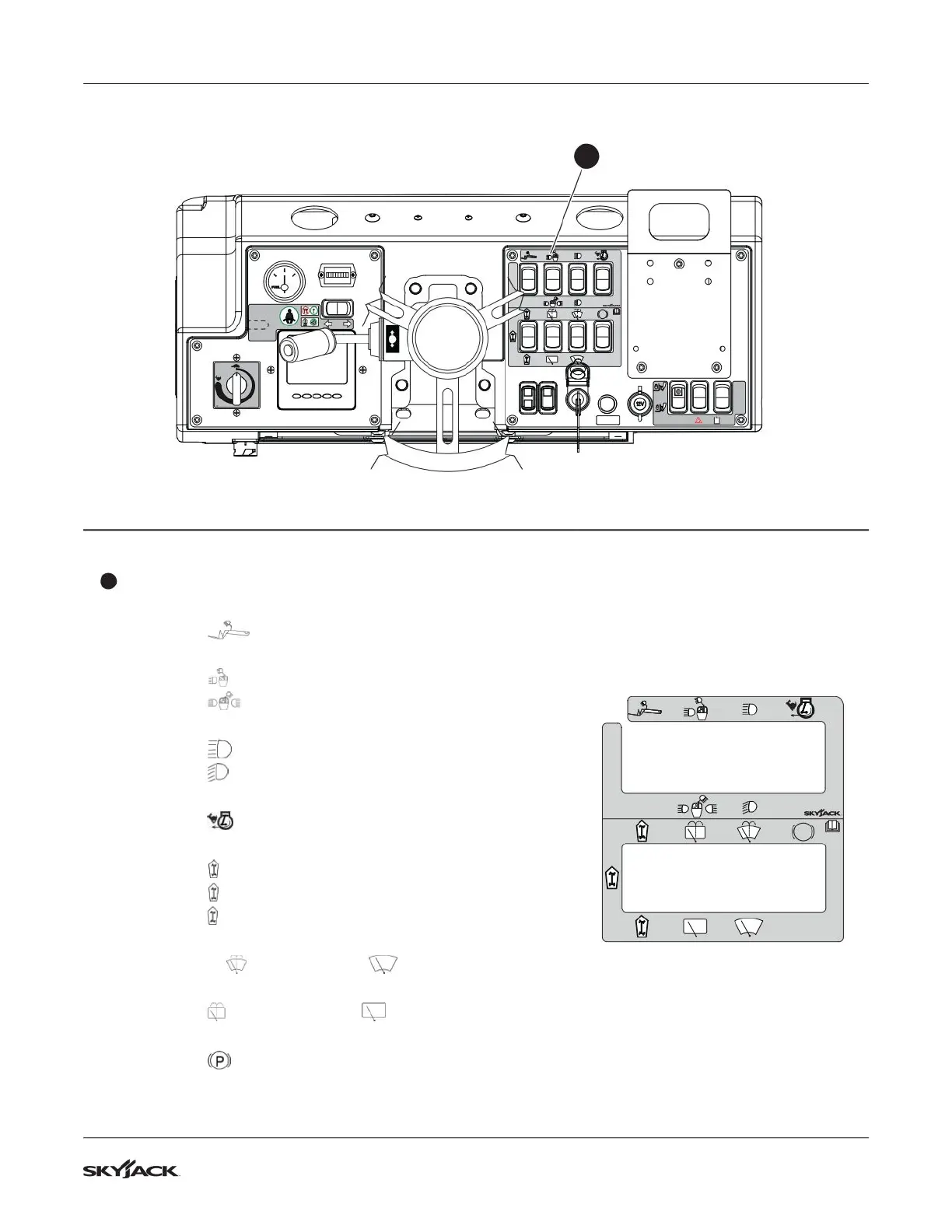

Model SJ519 TH Section 8 – Labels
Description Label Pictorial
4
Right Side Dash Panel
Boom Lights Switch (if equipped)
▪
Select to turn on boom lights.
Front and Rear Work Lights Switch (if equipped)
▪
Select to turn on front work lights.
▪
Select to turn on front and rear work lights.
High/Low Headlights and Taillights Switch (if equipped)
▪
Select to turn on high beam headlights and tail lights.
▪
Select to turn on low beam headlights and tail lights.
Positive Air Shutoff Switch (if equipped)
▪
Select to trigger the positive air shutoff valve.
Steering Mode Switch
▪
Select for four-wheel steering.
▪
Select for front steering.
▪
Select for crab steering.
Rear Windshield Washer/Wiper Switch
▪
Select to turn on. Select to turn on wiper.
Front & Top Windshield Wiper Switch
▪
Select to turn on. Select to turn on wiper.
Park Brake Switch
▪
Select to engage park brake.
P
Operator’s Cab Controls (continued)
P
FWD
REV
OFF
AUX
Flow
Direction
FWD
REV
