IDP-782 - Hardware Guide
1 Product Overview
The IDP-782 (Figure 1) is a high-performance satellite-cellular communication terminal consisting of:
l A transceiver unit
l An IsatData Pro satellite modem for communicating with the satellite
l An integral GPS/GLONASS subsystem
l I/O interface for wired sensors and devices
l Two RS-232 ports
l RS-485 port
l CAN bus port
l iButton interface
l Mini-B USB Slot
l Two SIM card slots
l Cellular module (GPRS or HSPA)
l (optional variant) Backup battery
l Satellite antenna
l Cellular antenna

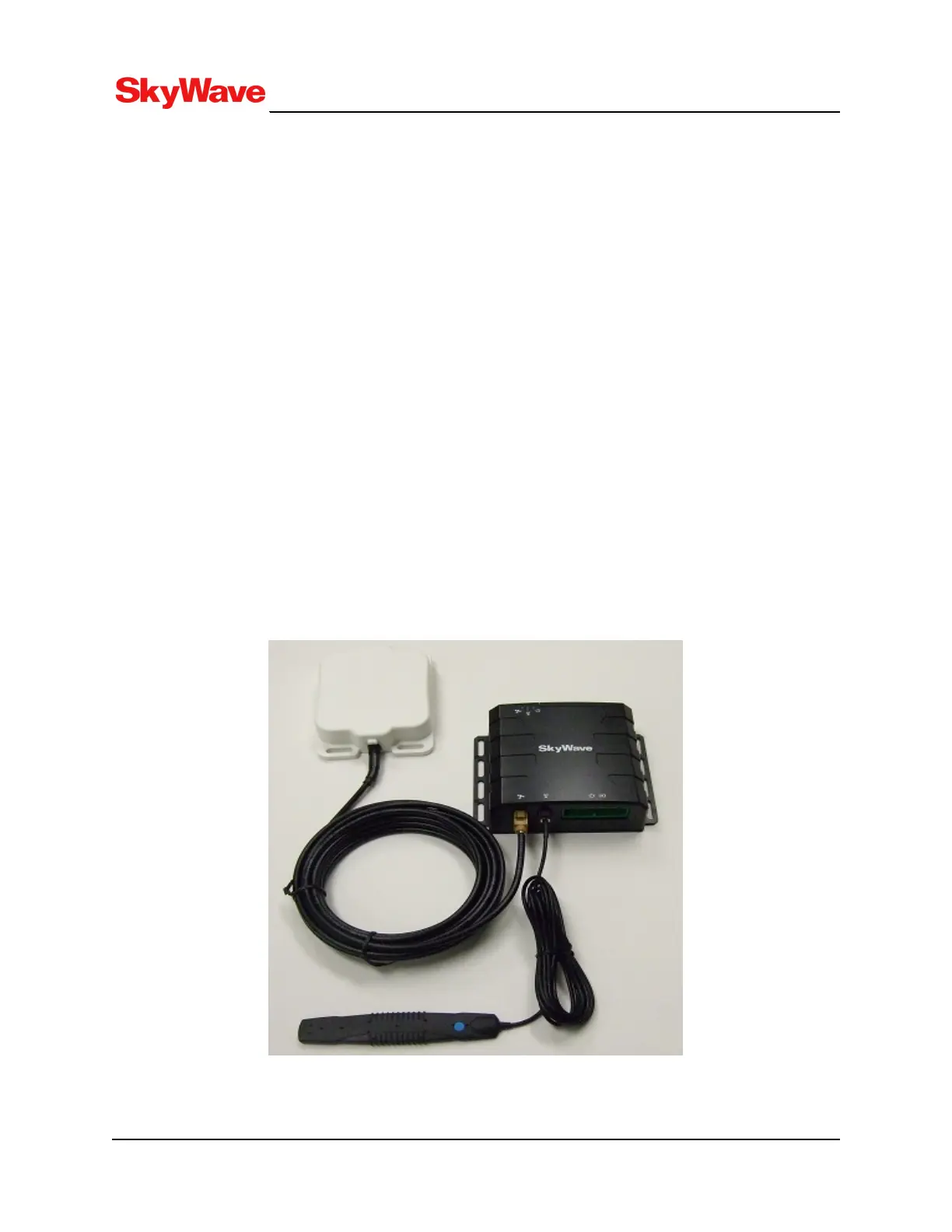

Figure 1: IDP-782
T213, Version 02
15
© SkyWave Proprietary
