IDP-782 - Hardware Guide

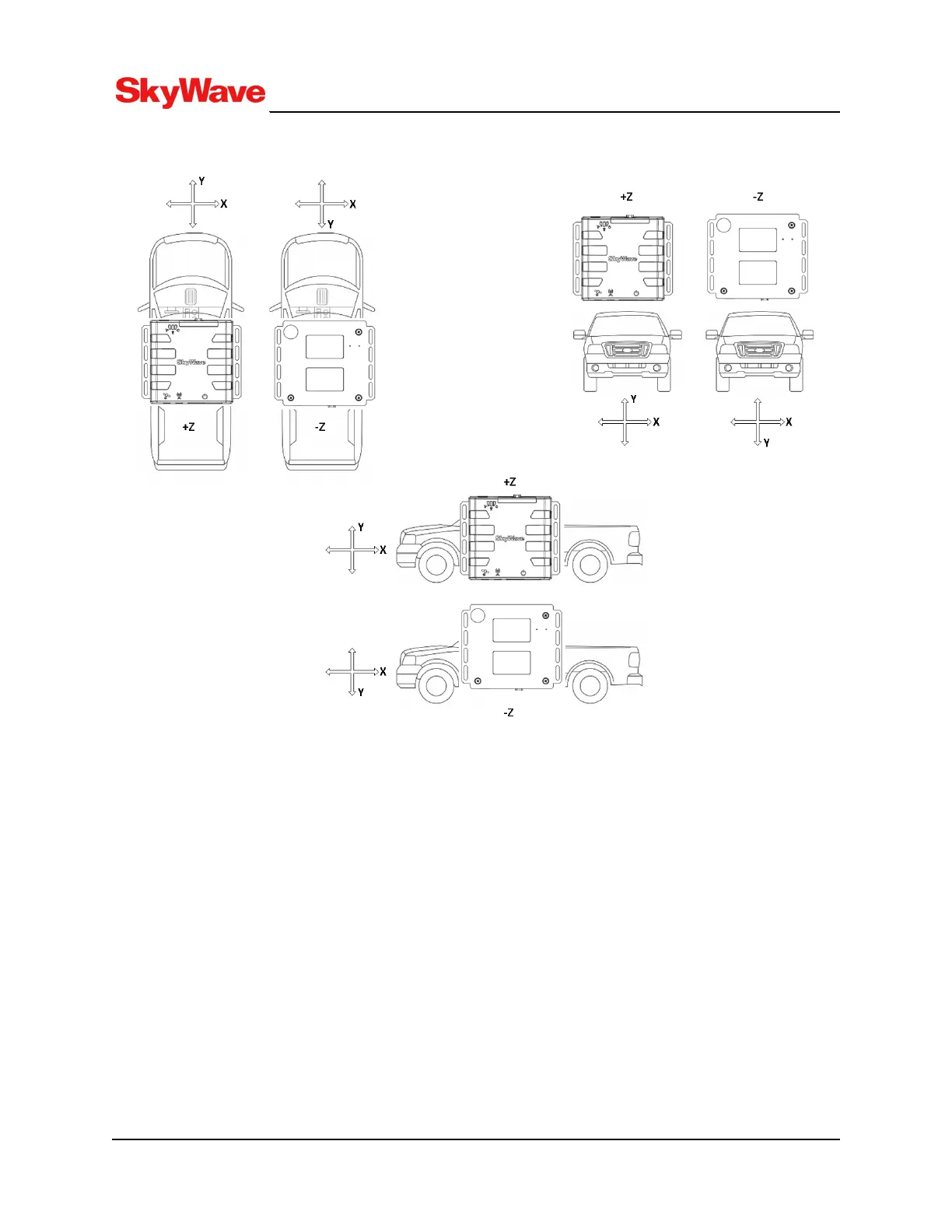

Figure 30: Accelerometer and Terminal Orientation
4.4 Mount the Antennas
Two mounting options are available for the satellite antenna: screw mount or silicone mount.
4.4.1 Screw Mount
If mounting an antenna the following tools and materials are required:
l Drill
l M4 hardware
l Outdoor waterproof adhesive sealant (silicone)
To mount the antenna, follow the steps below.
1. Find a location for the antenna following the guidelines provided in section 4.3.1.
2. Use the mounting template (APPENDIXC) or the antenna as a template, to mark the location of the
mounting holes.
