IDP-782 - Hardware Guide

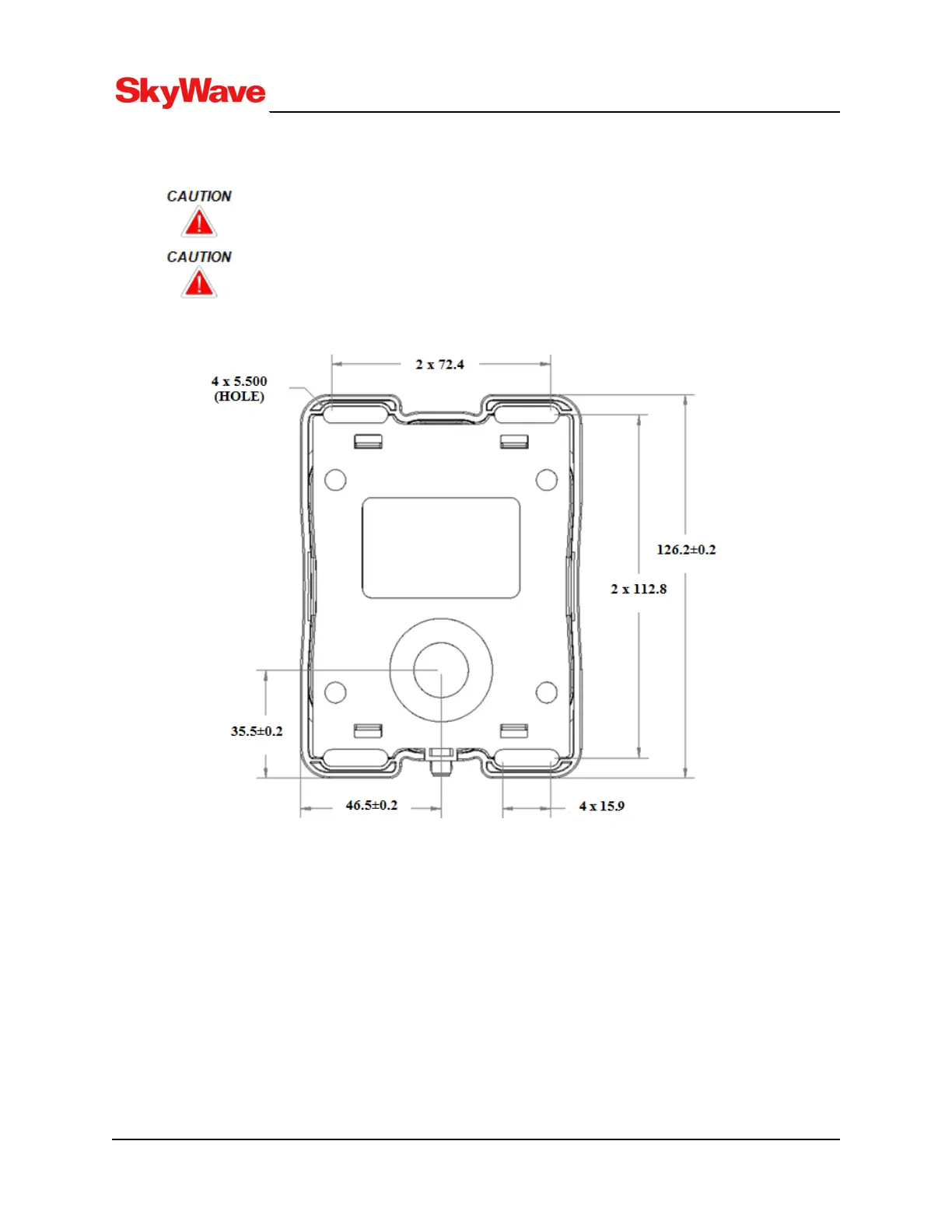

APPENDIXC Satellite Antenna Dimensions
Before drilling check the template against actual hardware for dimensional accuracy. If it
is not correct, DO NOT USE THIS TEMPLATE. Use the physical antenna hardware as a
template.
Cable management and connector strain relief must be incorporated in the installation.
Secure the cable no more than 15 cm from the antenna enclosure and at regular
intervals along its length as part of the installation to prevent cable wear and eliminate
strain on the connector. Damage to the connector interface or cable may otherwise
result and lead to hardware failure.
T213, Version 02
79
© SkyWave Proprietary
