APPENDIXD Terminal Shroud
The optional terminal shroud protects the cable connectors that connect to the transceiver unit. The
terminal shroud has two (2) pass through features for the following cables:
l RF cables
l Power and I/O cables

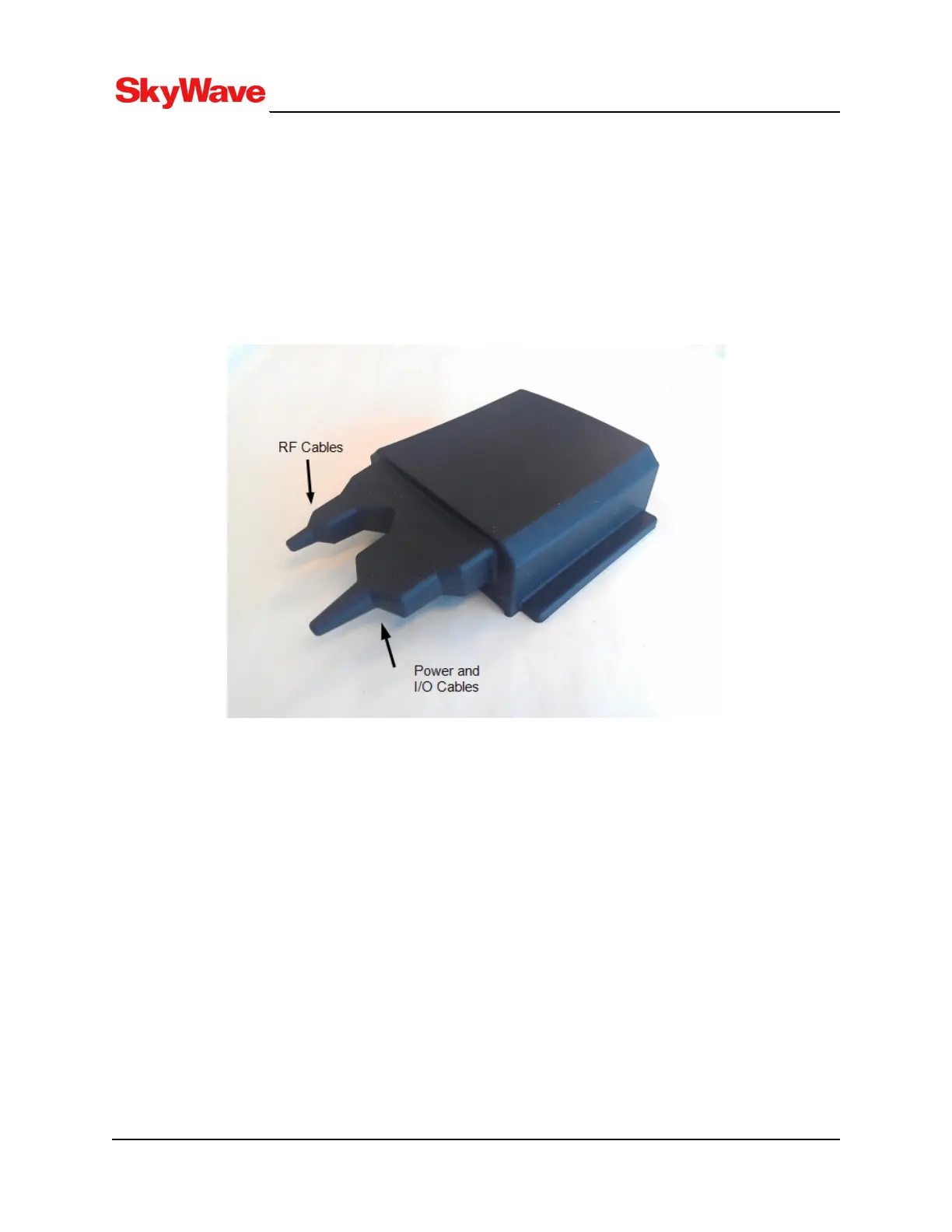

Figure 57: Terminal Shroud
